GPi3200-GEN,INVERTER,NON-CARB

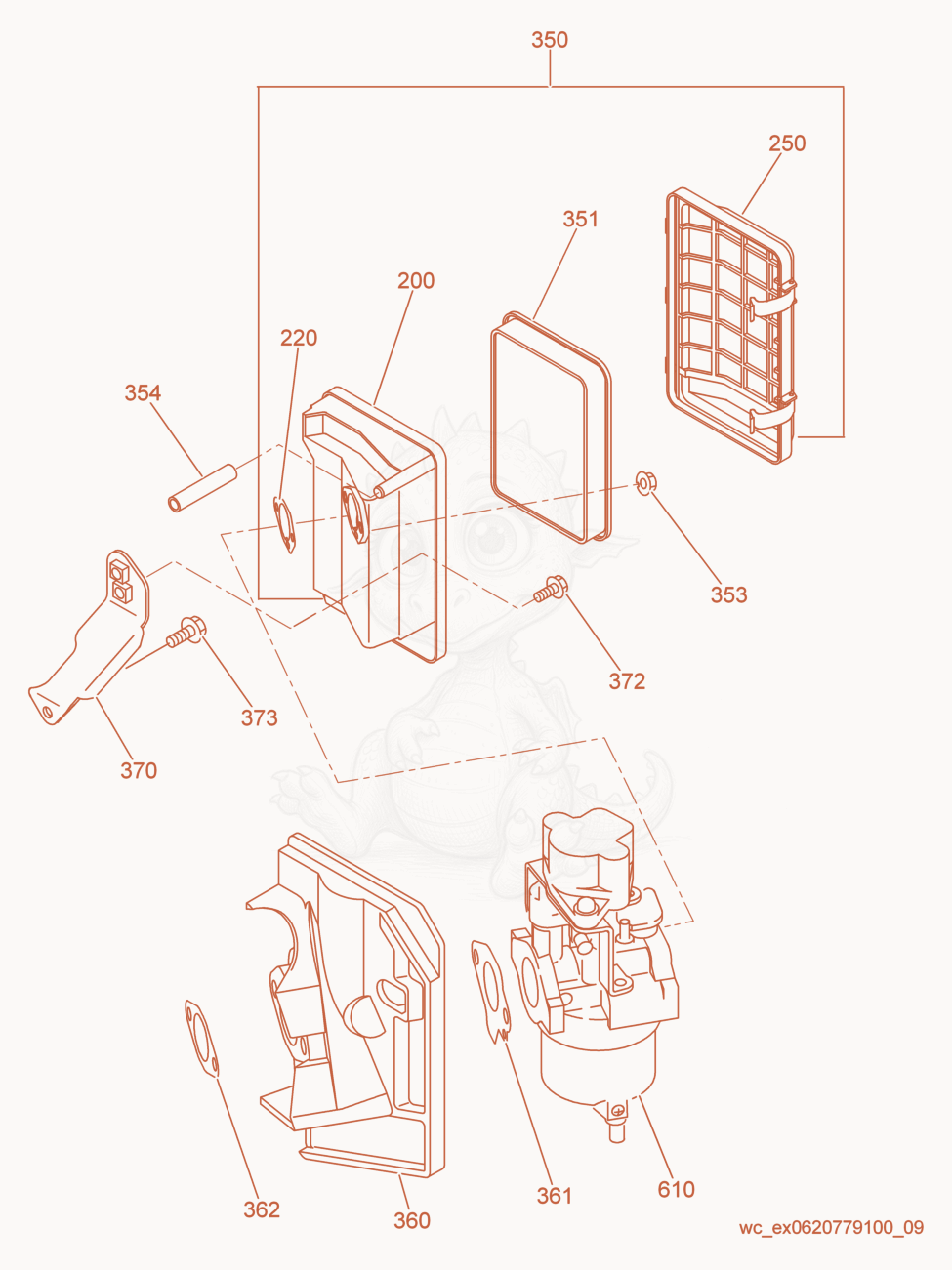

GPI3200 Air Cleaner cpl. Diagram

Exploded parts diagram of the Air Cleaner cpl. of a Wacker Neuson GPI3200, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2005000214847
    $46.69
    HOLDER-AIR CLEANER - 5000214847×1
  • 2205000156748
    $10.39
    GASKET-AIR CLEANER - 5000156748×1
  • 2505000214848
    $66.01
    COVER-AIR CLEANER - 5000214848×1
  • 3505000214846
    $152.34
    AIR CLEANER CPL - 5000214846×1
  • 3515000214850
    $47.17
    ELEMENT - 5000214850×1
  • 3535000053616
    $1.72
    NUT M6,HEX,FLANGE - 5000053616×2
  • 3545000053608
    $23.27
    HOSE 8 X 11 X 75MM LG,RUBBER - 5000053608×1
  • 3605000226066
    $40.71
    Insulator - 5000226066×1
  • 3615000205147
    $1.85
    GASKET-CARBURETOR - 5000205147×1
  • 3625000205148
    $1.85
    GASKET-CARBURETOR - 5000205148×1
  • 3705000226069
    $18.67
    BRACKET,AIR CLEANER - 5000226069×1
  • 3725000156503
    $1.32
    BOLT-FLANGE - 5000156503×1
  • 3735000226328
    $5.08
    FLANGE BOLT M6X10 - 5000226328×1
  • 6105000226108Not stocked
    Carburetor×1
