GPS8500-GENERATOR, NON-CARB

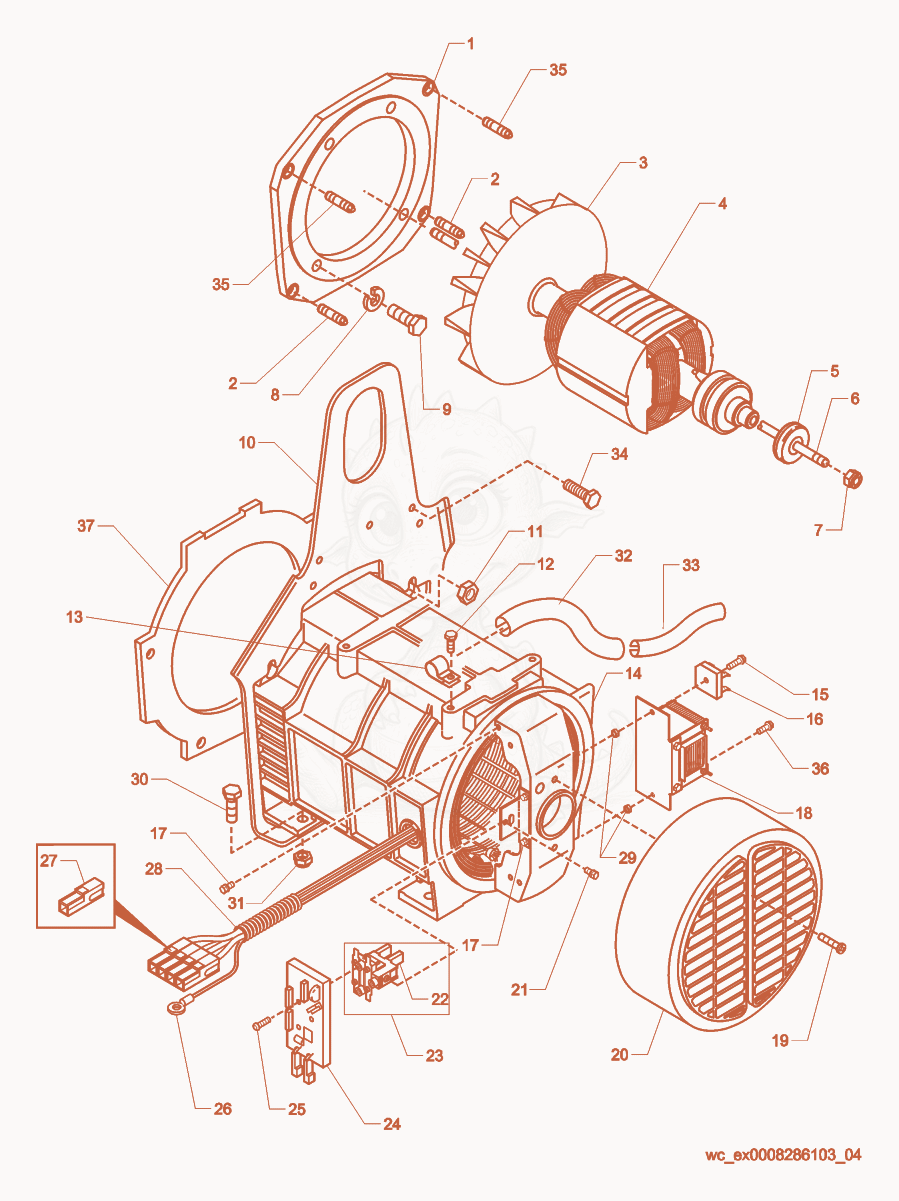

GPS8500 Generator Front Diagram
- ADAPTER-ENGINE,FLANGE B - 5000087825×1
- STUD-M8 X 34 - 5000089664×2
- FAN - 5000111720×1
- ROTOR-115MM STACK - 5000111735×1
- BEARING-ANTI CREEP - 5000087819×1
- STUD 5/16-24 X 9.562 - 5000110305×1
- NUT-LOCK 5/16-24,BINX GRADE S - 5000087054×1
- WASHER-LOCK 3/8,MED. - 5000025649×4
- SCREW 3/8-16 X 1 GR5,HX.HD. - 5000025554×4
- BRACKET-LIFTING,PAINTED P-500011200 - 5000165373×1
- NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
- SCREW M6 X 16 HX.HD. - 5000014663×1
- CLAMP-TUBE CLIP - 5000086754×1
- Kit Stator,G8.5(4 Wire) 5000178970×1
- HOUSING-CONNECTOR,1 POLE,RECPT - 5000111136×4
- TERMINAL-PIN,12-10 - 5000111178×4
- TERMINAL-RING,12-10 4.4 ID,INS - 5000111179×1
- HOUSING-WIRE WAY - 5000112160×1
- SCREW M5X25 - 5000116377×1
- DIODE-BRIDGE RECTIFIER,GEN. - 5000087841×1
- SCREW M5X10 - 5000116464×3
- Choke - 5000088274×1
- SCREW M5X30 - 5000116462×2
- COVER-STEEL,GENERATOR - 5000087815×1
- SCREW M5X10 - 5000116464×1
- 225000087837Not stockedBrush×2
- BRUSH-HOLDER,WITH BRUSHES - 5000087838×1
- REGULATOR-VOLTAGE,GENERATOR - 5000087839×1
- SCREW M5X20 - 5000116465×3
- TERMINAL-RING,12-10 4.4 ID,INS - 5000111179×1
- HOUSING-CONNECTOR,1 POLE,RECPT - 5000111136×4
- TERMINAL-PIN,12-10 - 5000111178×4
- HOUSING-WIRE WAY - 5000112160×1
- NUT M5 - 5000116467×2
- SCREW M10 X 30 HX.HD - 5000011439×4
- NUT-LOCK M10 HEX. - 5000010365×4
- TUBE-SPLIT,.76 ID,12 - 5000111445×1
- TUBE-SPLIT, .265 ID,12 - 5000111443×1
- SCREW M6 X 1 X 20,FLANGE LOCK - 5000029116×5
- STUD M8 X 25 - 5000010927×2
- Screw - 5000111764×1
- BAFFLE-AIR - 5000112161×1
