GPS9700 Generator

GPS9700 Engine Mounting Diagram

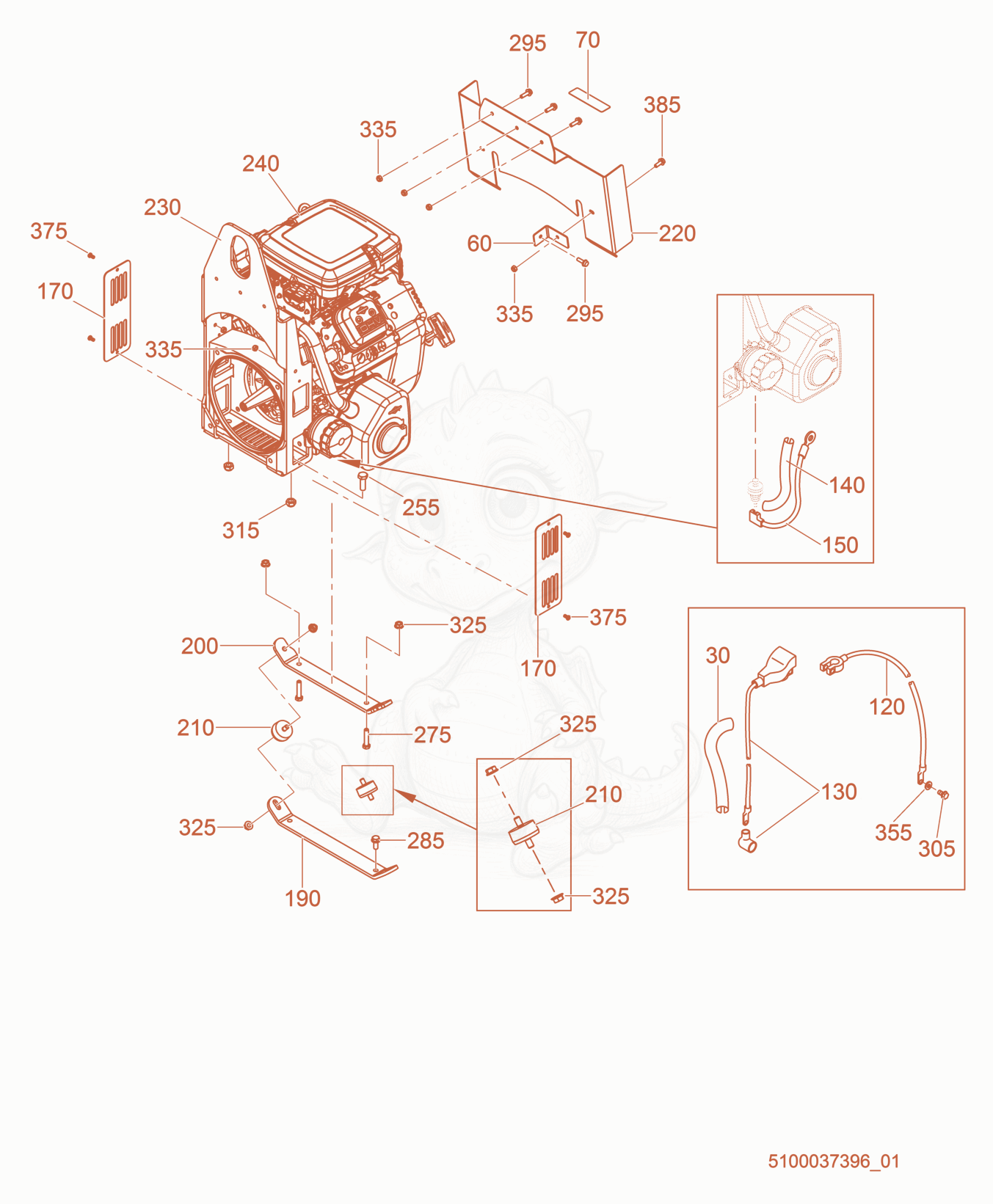

Exploded parts diagram of the Engine Mounting of a Wacker Neuson GPS9700, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

305000111445
$1.68
TUBE-SPLIT,.76 ID,12 - 5000111445×1
605100036629
$51.73
HEATSHIELD - OUTER BRACKET P-5000112007 - 5100036629×1
705000179349
$39.28
LABEL-SPARK ARRESTOR - 5000179349×1
1205000110456
$21.16
CABLE-BATTERY,NEG - 5000110456×1
1305000115597
$34.30
CABLE-BATTERY,POSITIVE - 5000115597×1
1405000111444
$1.65
TUBE-SPLIT,.265 ID, 24 - 5000111444×1
1505000110996
$6.60
WIRE-GROUND,LOW OIL SHUTDOWN - 5000110996×1
1705100036620
$15.00
VENT CLOSURE-LIFT BRACKET P-5000112007 - 5100036620×2
1905000110282
$35.88
BRACKET-SHOCKMOUNT LOW P-5000112006 - 5000110282×1
2005000110281
$35.45
BRACKET-SHOCKMOUNT,ENG. P-5000112006 - 5000110281×1
2105000088535
$8.13
SHOCKMOUNT 40 X 20, 45 SHORE - 5000088535×2
2205100036622
$189.66
HEATSHIELD-OUTER P-5000112007 - 5100036622×1
2305100036623
$348.28
BRACKET-LIFTING P-5000112007 - 5100036623×1
2405200006951
$3,756.97
ENGINE-BRIGGS,18HP VANGRD - 5200006951×1
2555000011439
$0.23
SCREW M10 X 30 HX.HD - 5000011439×3
2755000011341
$0.36
SCREW M8 X 40 HX.HD. - 5000011341×2
2855000028404
$0.26
SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×2
2955000029116
$0.18
SCREW M6 X 1 X 20,FLANGE LOCK - 5000029116×5
3055000012362
$0.40
SCREW M8 X 20 HX.HD. - 5000012362×1
3155000010365
$0.20
NUT-LOCK M10 HEX. - 5000010365×3
3255000030066
$0.16
NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×12
3355000010368
$0.10
NUT-LOCK M6 HEX. - 5000010368×7
3555000010622
$0.10
WASHER-FLAT,M8,ZINC - 5000010622×1
3755000071070
$2.73
SCREW M5 X 8,TAPPING - 5000071070×4
3855000028949
$0.29
SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×2
