GPS9700 Generator

GPS9700 Canister & Piping Diagram

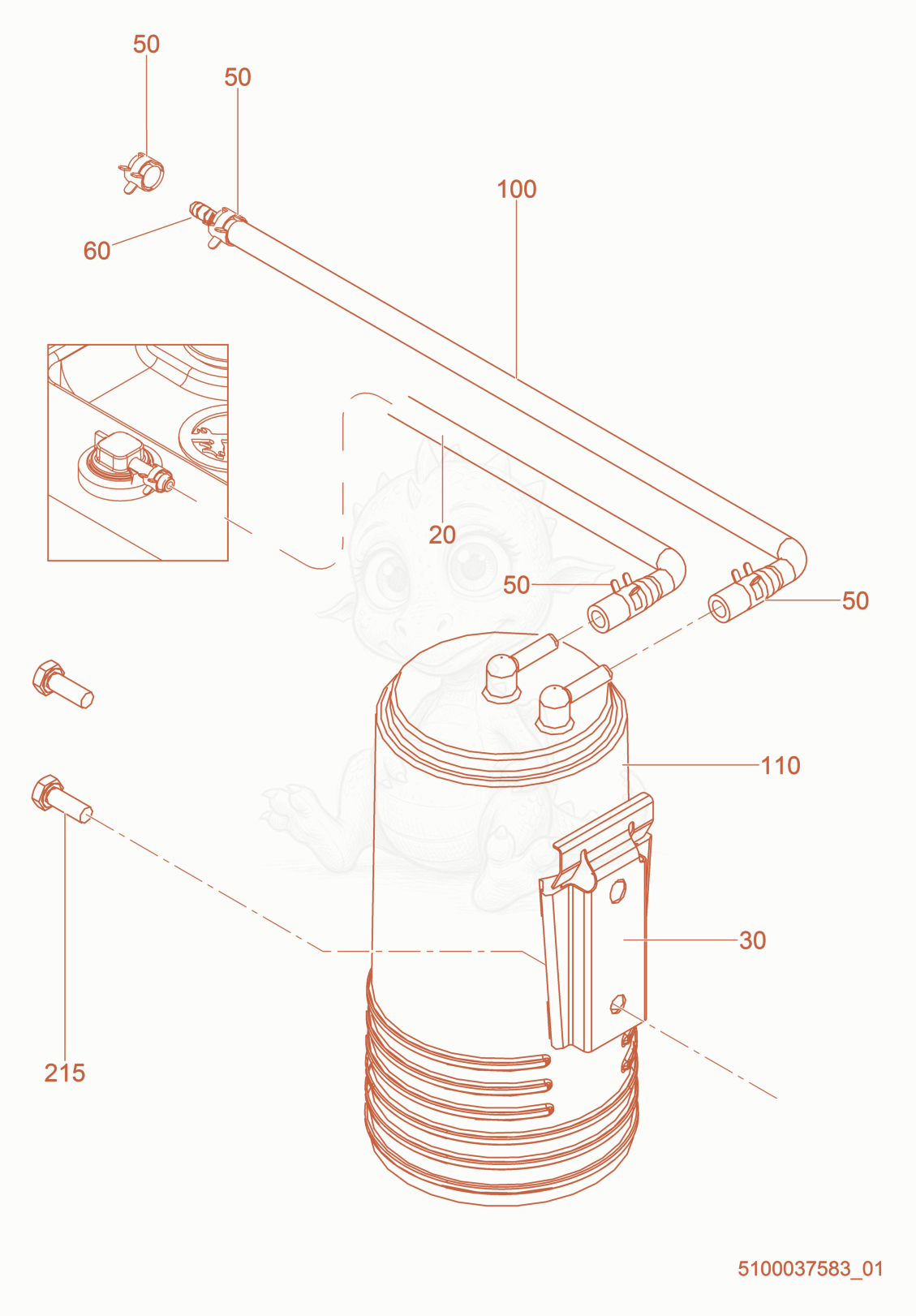

Exploded parts diagram of the Canister & Piping of a Wacker Neuson GPS9700, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 205200009173
    $8.51
    HOSE-FUEL, 3/16 LOW PERM, 820mm - 5200009173×1
  • 305000187595
    $7.51
    BRACKET-CANISTER,800CC - 5000187595×1
  • 505000114201
    $0.26
    CLAMP-HOSE 3/16 - 5000114201×4
  • 605000183172
    $2.89
    FITTING-BARB REDUCR,1/4 -.170 - 5000183172×1
  • 1005000183006
    $9.68
    HOSE-VAPOR,PURGE,GPS 9700 - 5000183006×1
  • 1105000183168
    $37.54
    CANISTER-CARBON,800CC - 5000183168×1
  • 2155000014663
    $0.06
    SCREW M6 X 16 HX.HD. - 5000014663×4
