GPS9700 Generator

GPS9700 Control box mounting Diagram

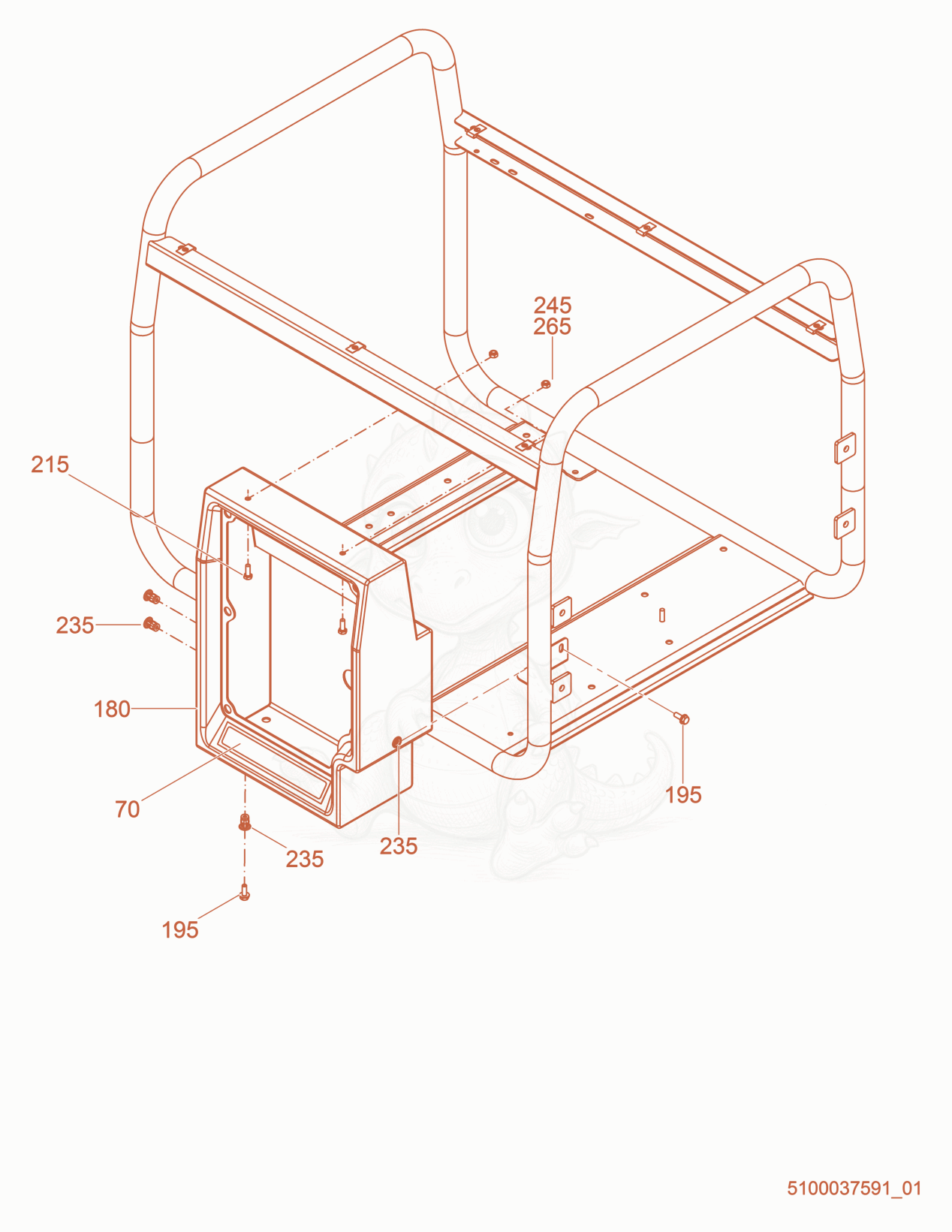

Exploded parts diagram of the Control box mounting of a Wacker Neuson GPS9700, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 705000177637
    $40.03
    LABEL-GPS9700 - 5000177637×1
  • 1805000183590
    $308.15
    BOX-CONTROL ASSEMBLY,LARGE - 5000183590×1
  • 1955000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×2
  • 2155000014663
    $0.06
    SCREW M6 X 16 HX.HD. - 5000014663×4
  • 2355000089386
    $0.79
    NUT-JACK THD.,INSERT - 5000089386×4
  • 2455000010373
    $0.03
    WASHER B6.4 FLAT - 5000010373×8
  • 2655000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×2
