GPS9700 Generator

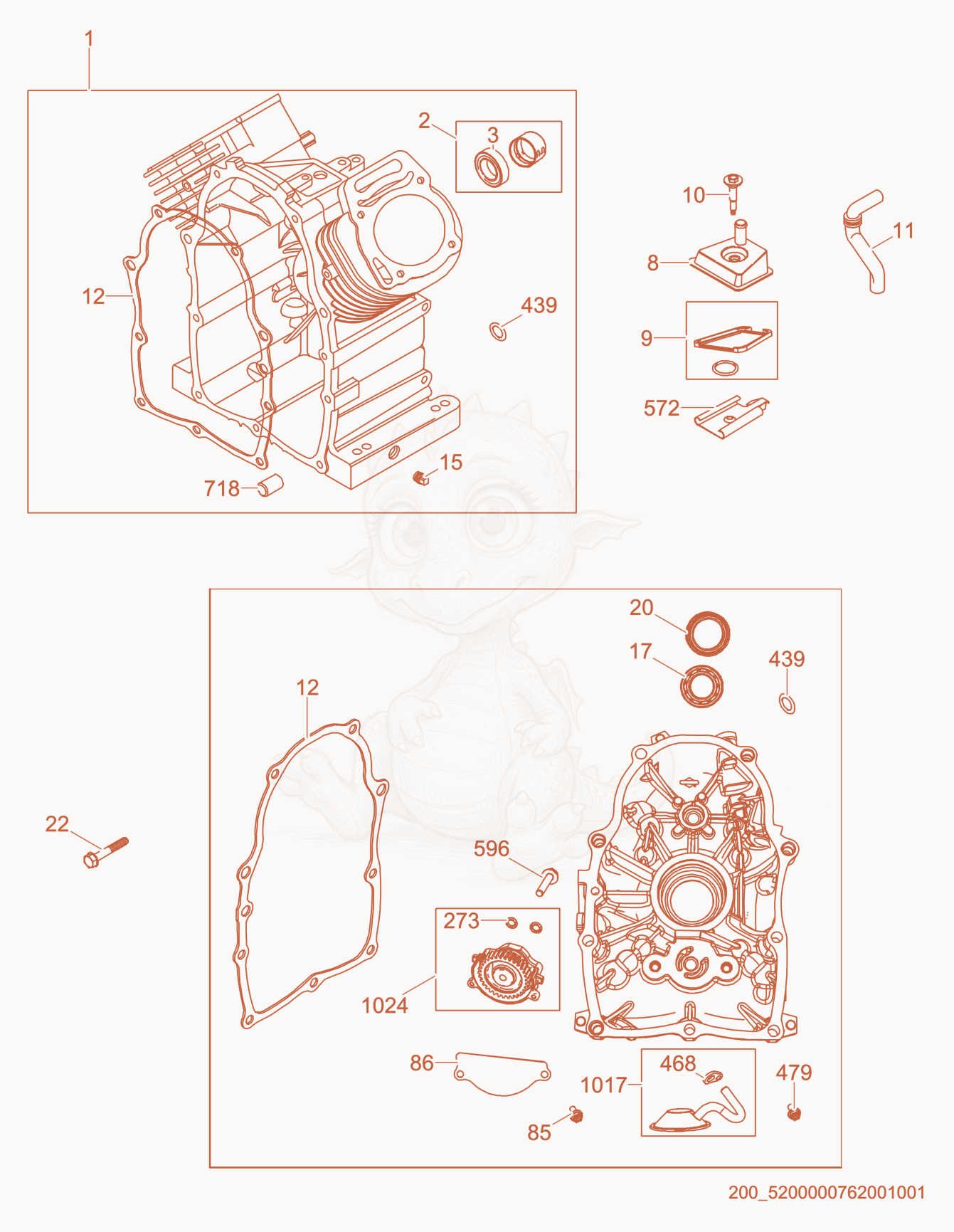

GPS9700 Cylinder/Crankcase Cover Diagram
- CYLINDER BLOCK ASSY. - 5000118498×1
- Bushing - 5000118519×1
- SEAL-SHAFT - 5000081053×1
- BREATHER ASSEMBLY - 5000160159×1
- Gasket-Breather - 5200002290×1
- SCREW-BREATHER - 5000118451×1
- Tube - 5200001341×1
- X-5000081020 Gasket-crankcase cover X-50 - 5200001343×1
- Plug 3/8-18, Sq. Hd. Oil - 5200002531×1
- BEARING-BALL - 5000110082×1
- CRANKCASE CVR W/ OIL PUMP CPL. - 5000227736×1
- SEAL-SHAFT - 5000081018×1
- Screw - 5000208196×1
- Screw - 5000208216×2
- Plate - 5000110083×1
- O-ring - 5000118433×2
- O-ring - 5000118494×1
- O-ring - 5000118439×1
- Screw - 5000160165×1
- Baffle - 5000080981×1
- Screw - 5000118471×1
- PIN-LOCATING - 5000118435×1
- COVER-OIL PUMP - 5000118459×1
- Pump-Oil - 5200001346×1
