GPS9700V Generator, EPA, w/Wheel Kit

GPS9700 Fuel Tank/Control Box Diagram

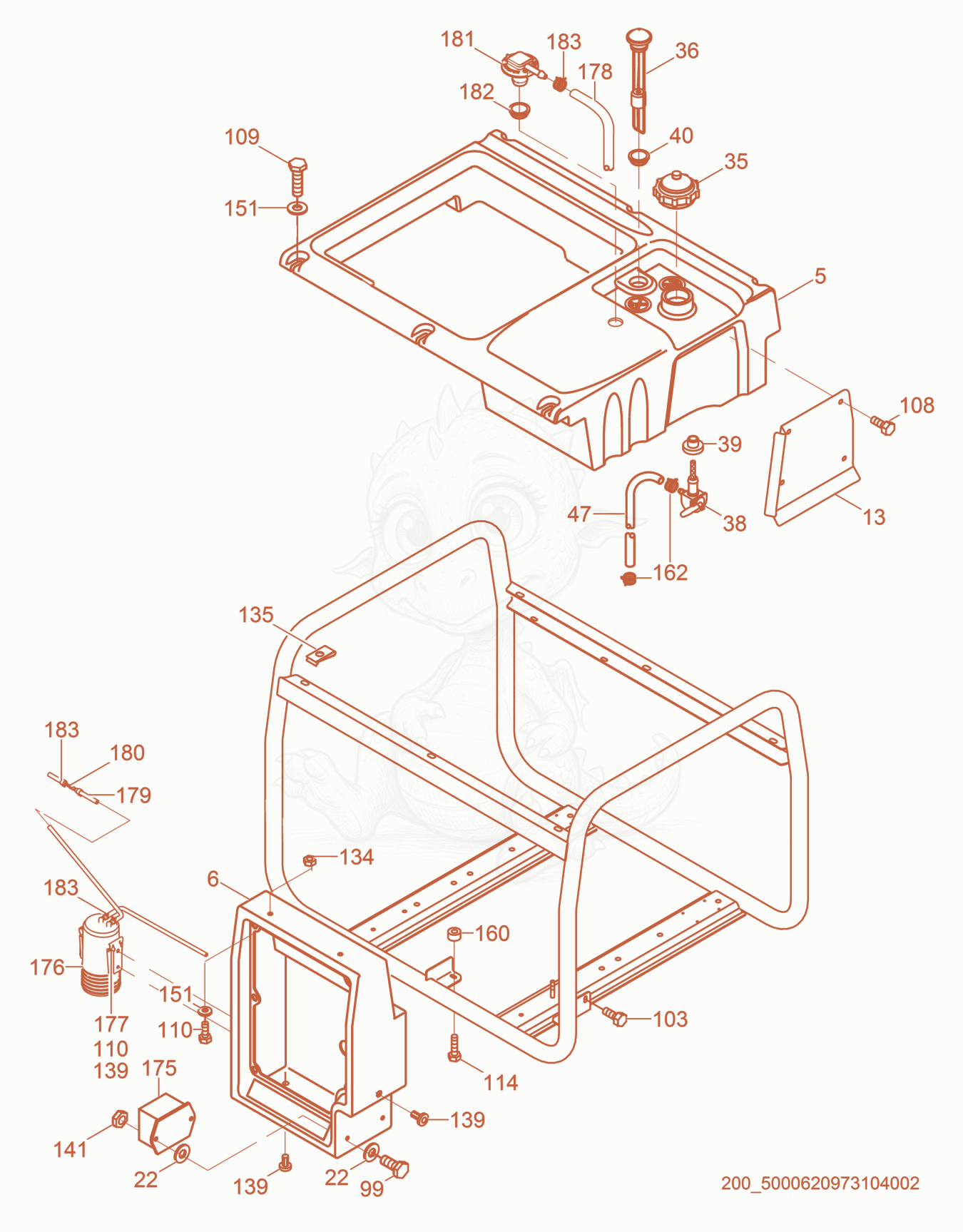

Exploded parts diagram of the Fuel Tank/Control Box of a Wacker Neuson GPS9700, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 55200005892
    $263.12
    TANK-FUEL GPS9700,ASSEMBLY - 5200005892×8
  • 65000183590
    $308.15
    BOX-CONTROL ASSEMBLY,LARGE - 5000183590×1
  • 135000157893
    $5.93
    PANEL-TANK DRIP EDGE - 5000157893×1
  • 225000010628
    $0.02
    WASHER A4.3 FLAT - 5000010628×4
  • 355000188220
    $21.15
    CAP-FUEL,LOW PERM GASKET - 5000188220×1
  • 365000088165
    $10.59
    Gauge-fuel - 5000088165×1
  • 385000053576
    $21.70
    VALVE-SHUTOFF - 5000053576×1
  • 395000053577
    $0.69
    BUSHING-TANK VALVE MOUNTING - 5000053577×1
  • 405000088166
    $5.33
    BUSHING-FUEL GAUGE - 5000088166×1
  • 475000164276
    $4.93
    HOSE-FUEL,1/4 LOW PERM,24 IN. - 5000164276×1
  • 995000110951
    $0.03
    SCREW M4 X 20 PHIL HD - 5000110951×2
  • 1035000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×1
  • 1085000163945
    $0.26
    SCREW M8X16 BTN HD BL ZN 10.9 - 5000163945×4
  • 1095000088806
    $0.83
    SCREW-LOCK M6X25,HEX - 5000088806×6
  • 1105000014663
    $0.06
    SCREW M6 X 16 HX.HD. - 5000014663×2
  • 1145000111218
    $1.68
    SCREW M6 X 30,HX.HD,SER - 5000111218×1
  • 1345000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×2
  • 1355000088190
    $0.57
    NUT M6 CLIP ZINC PLATED - 5000088190×6
  • 1395000089386
    $0.79
    NUT-JACK THD.,INSERT - 5000089386×2
  • 1415000010872
    $0.01
    NUT M4 8,HEX. - 5000010872×2
  • 1515000010373
    $0.03
    WASHER B6.4 FLAT - 5000010373×6
  • 1605000111030
    $0.62
    SPACER-CONTROL BOX,LG. - 5000111030×1
  • 1625000114073
    $0.23
    CLAMP-HOSE - 5000114073×2
  • 1755000116860
    $107.73
    MODULE-2 LINE REGULATION - 5000116860×1
  • 1765000183168
    $37.54
    CANISTER-CARBON,800CC - 5000183168×1
  • 1775000187595
    $7.51
    BRACKET-CANISTER,800CC - 5000187595×1
  • 1785200009173
    $8.51
    HOSE-FUEL, 3/16 LOW PERM, 820mm - 5200009173×1
  • 1795000183006
    $9.68
    HOSE-VAPOR,PURGE,GPS 9700 - 5000183006×1
  • 1805000183172
    $2.89
    FITTING-BARB REDUCR,1/4 -.170 - 5000183172×1
  • 1815000193330
    $9.36
    FITTING-FUEL RETURN - 5000193330×1
  • 1825000186628
    $1.32
    GROMMET-ROLLOVER VENT,BUNA-N - 5000186628×1
  • 1835000114201
    $0.26
    CLAMP-HOSE 3/16 - 5000114201×4
