GPS9700A

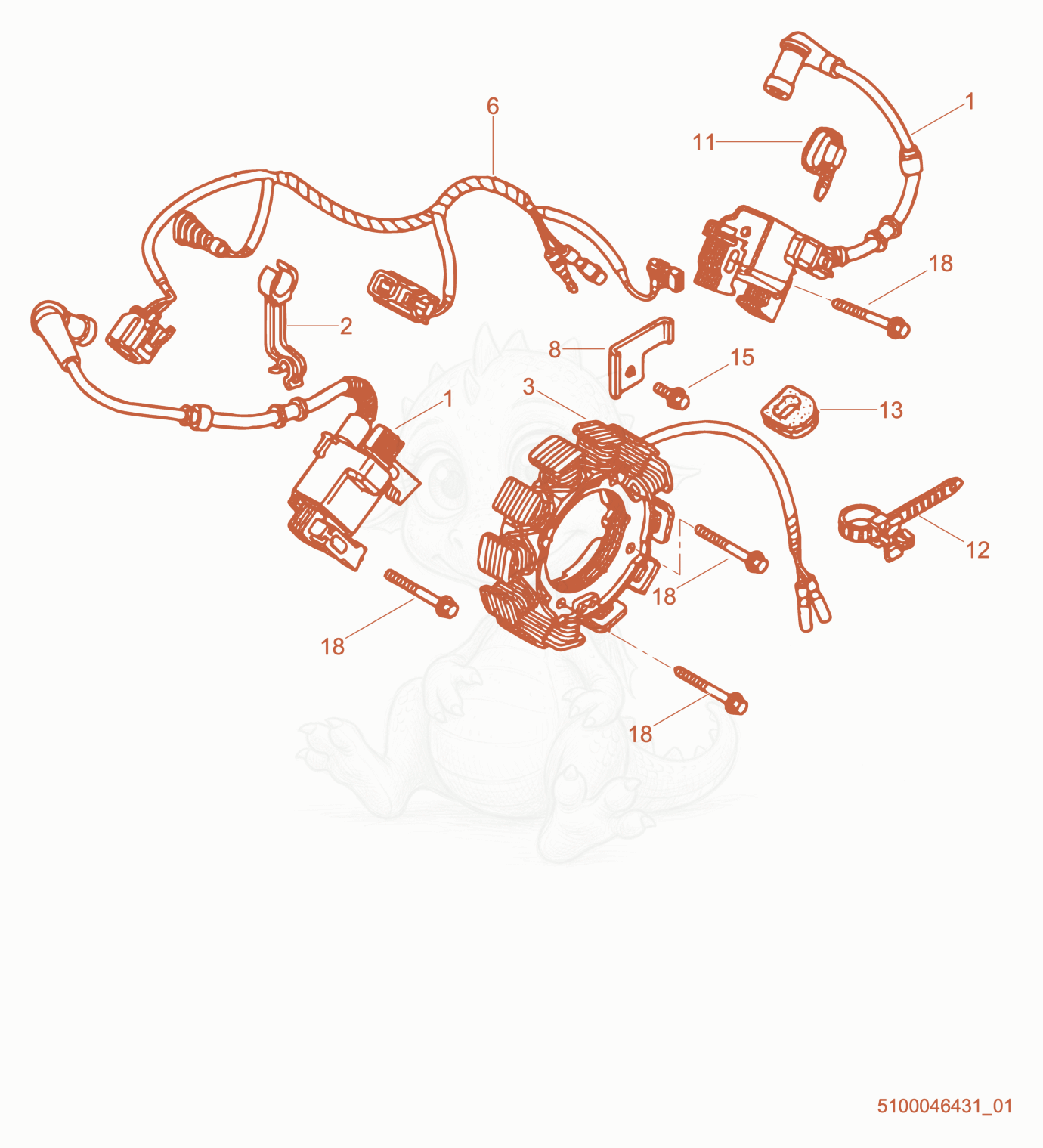

GPS9700A Ignition Coil Diagram
- Ignition coil - 5000226500×2
- Clamp - 5000226501×2
- COIL CPL. - 5100046404×1
- HARNESS-WIRING,ENGINE - 5100046405×1
- Bracket - 5000226513×1
- Cable tie - 5000226537×1
- Cable tie - 5000226538×1
- Grommet - 5000226551×1
- SCREW M6 X 12,HX.FLANGE - 5000072333×1
- BOLT-FLANGE (6X32) - 5000151875×7
