GS16000G LA

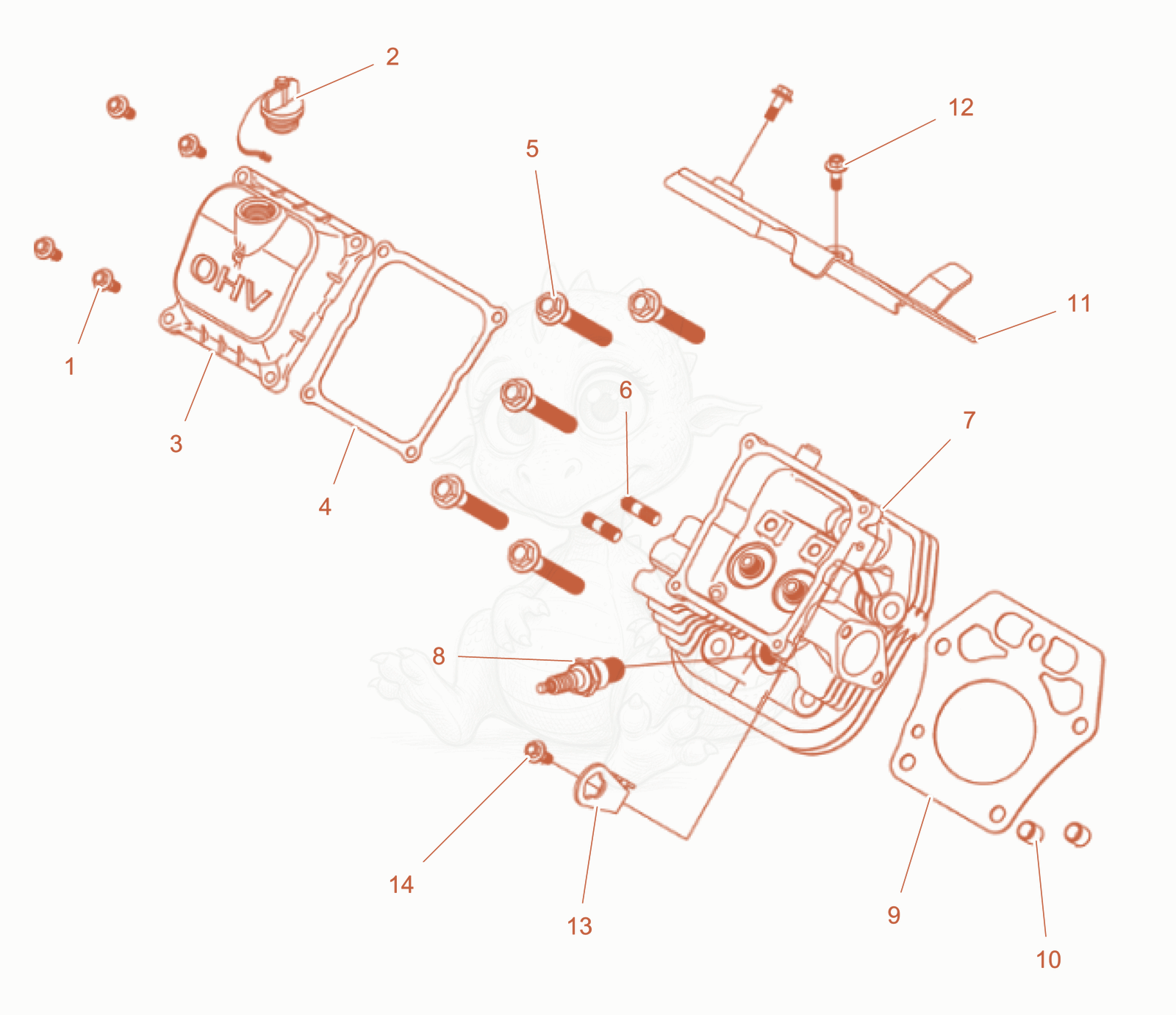

GS16000GLA Left cylinder head cpl. Diagram
- 15000408677Not stockedHexagonal head cap screw×4
- 25100085097Not stockedOil rule combination×1
- 35100085096Not stockedCylinder head cover×1
- 45100085095Not stockedGasket for cylinder head cover×1
- 55100083423Not stockedHexagon bolt with flange×6
- Stud - 5000408864×4
- 75100085094Not stockedCylinder head(L)×1
- 85100085093Not stockedSpark plug×1
- 95100085112Not stockedGasket for cylinder head×1
- 105100085111Not stockedLocation pin×2
- 115100085110Not stockedAir deflector(L)×1
- 125000408853Not stockedHexagonal head cap screw×2
- 135000408879Not stockedLifting eye×1
- 145100085109Not stockedHexagon shaft shoulder bolt×1
