GS5.5A GENERATOR

GS5.5A Electrical cpl. Diagram

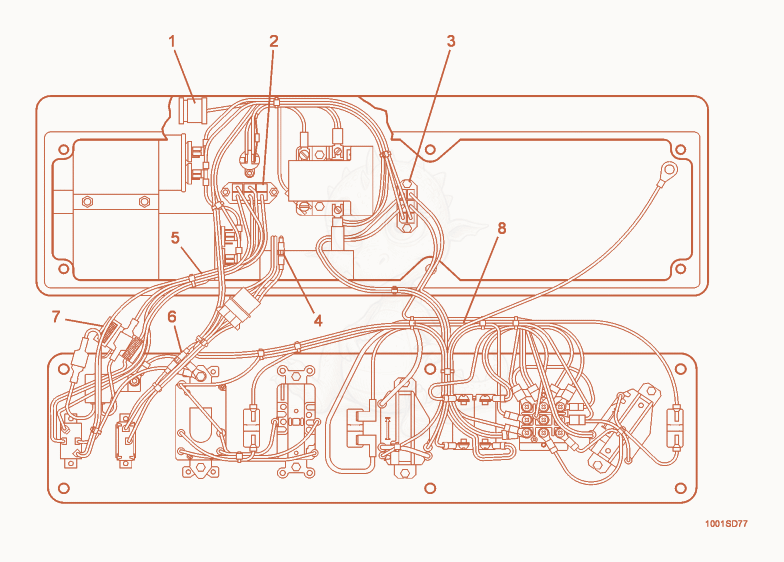

Exploded parts diagram of the Electrical cpl. of a Wacker Neuson GS5.5A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000085236
    $28.26
    COIL-60MH/10A,INDUCTION - 5000085236×1
  • 25000083677
    $5.90
    HOUSING-CONNECTOR,6 POLE,PLUG - 5000083677×1
  • 25000010628
    $0.02
    WASHER A4.3 FLAT - 5000010628×2
  • 25000010872
    $0.01
    NUT M4 8,HEX. - 5000010872×2
  • 25000011723
    $0.40
    SCREW M4 X 12 CHEESE HD. - 5000011723×2
  • 25000083679
    $0.45
    TERMINAL-TAB 14-10 .250 - 5000083679×6
  • 35000110650Not stocked
    Connector housing, 6 pole, receptacle×1
  • 35000010628
    $0.02
    WASHER A4.3 FLAT - 5000010628×2
  • 35000010872
    $0.01
    NUT M4 8,HEX. - 5000010872×2
  • 35000011723
    $0.40
    SCREW M4 X 12 CHEESE HD. - 5000011723×2
  • 45000085209
    $0.58
    Fuse - 5000085209×1
  • 55000084304Not stocked
    Wiring harness×1
  • 65000085824
    $0.75
    FUSE 1 AMP - 5000085824×1
  • 75000077219
    $0.54
    FUSE 15AMP,BLADE TYPE - 5000077219×1
  • 85000084306Not stocked
    Wiring harness×1
