GS6503G

GS6503GCE Carburetor cpl. Diagram

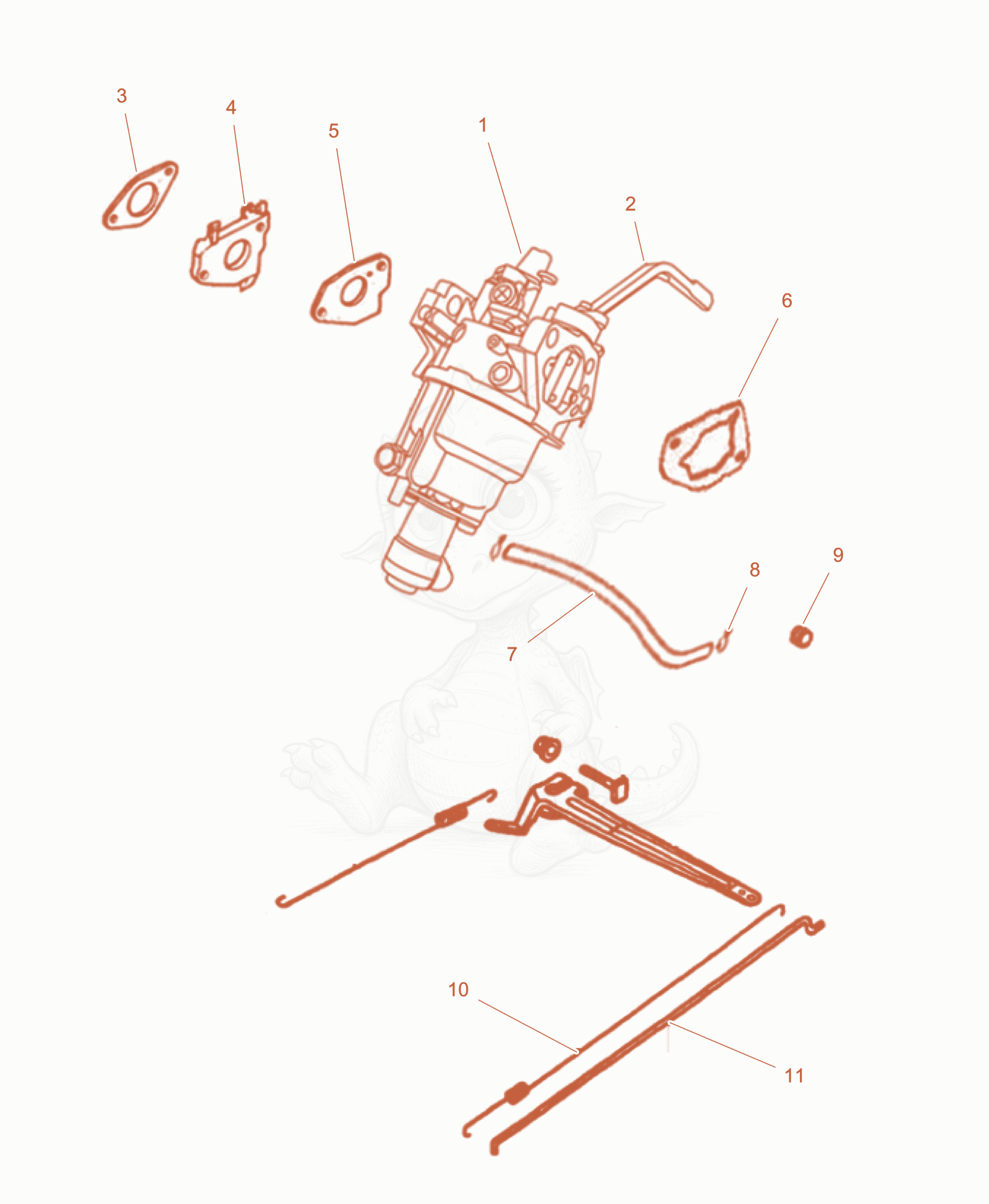

Exploded parts diagram of the Carburetor cpl. of a Wacker Neuson GS6503GCE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100084658Not stocked
    Carburetor×1
  • 25000408755
    $2.13
    Choke Control Set - 5000408755×1
  • 35000408617
    $0.91
    Gasket - 5000408617×1
  • 45100084677Not stocked
    Heat insulating pad for carburetor×1
  • 55000408619
    $0.91
    Gasket - 5000408619×1
  • 65000408620
    $0.91
    Gasket - 5000408620×1
  • 75000408757
    $0.92
    Fuel Hose - 5000408757×1
  • 85000408758
    $0.10
    Tube clamp - 5000408758×2
  • 95000408759Not stocked
    Sleeve×1
  • 105000408774Not stocked
    Throttle return spring×1
  • 115000408775Not stocked
    Throttle rod×1
