GV3800-Value Gen EPA

GV3800 Cylinder Diagram

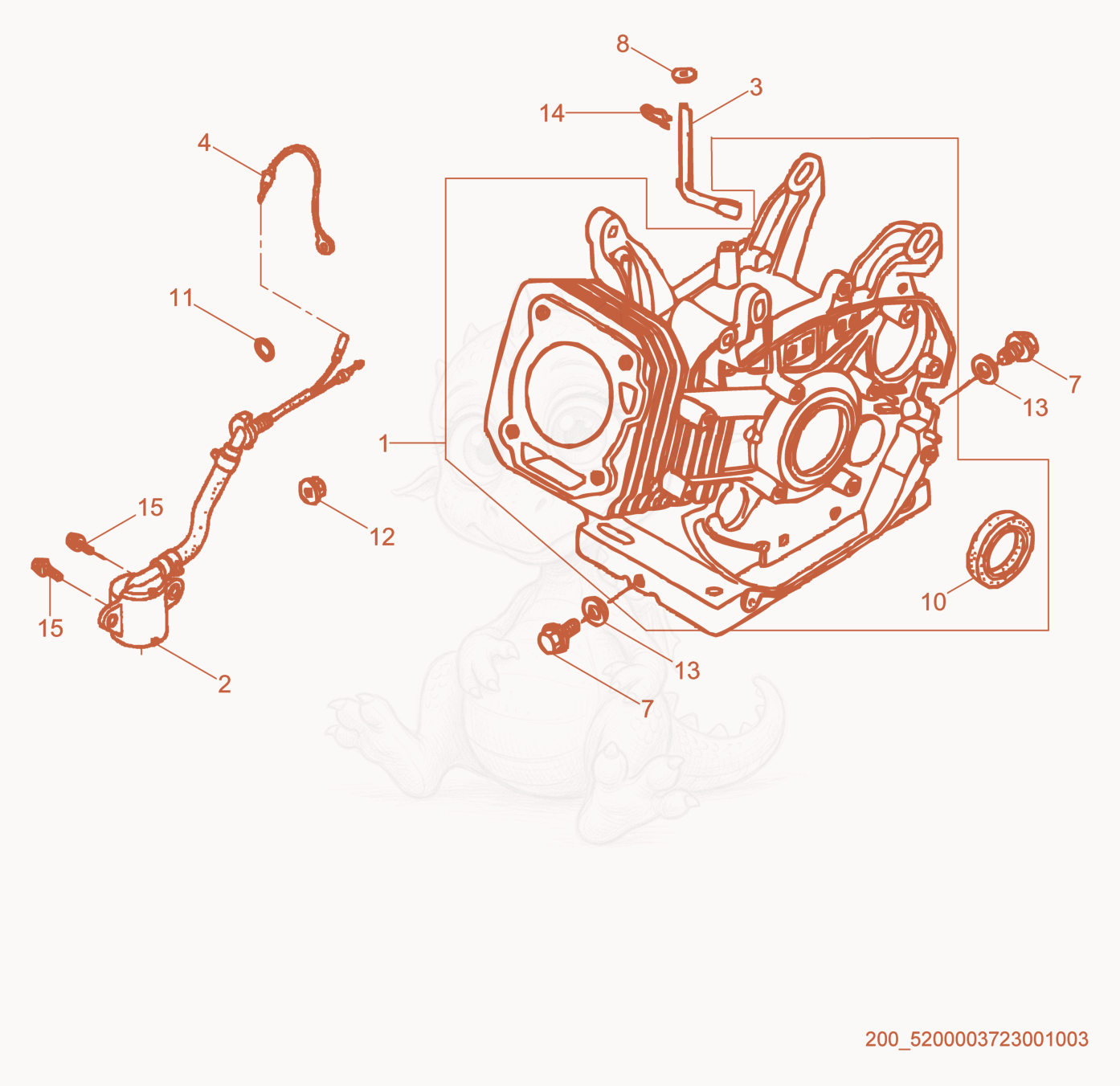

Exploded parts diagram of the Cylinder of a Wacker Neuson GV3800, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200003625Not stocked
    Cylinder cpl.×1
  • 25000217492
    $81.85
    Switch oil safety - 5000217492×1
  • 35000074641
    $14.98
    Shaft - 5000074641×1
  • 45000213371
    $8.55
    Ground wire - 5000213371×1
  • 75000053993
    $10.66
    PLUG M12,HEX.FLANGE - 5000053993×2
  • 85000074656
    $2.66
    Washer - 5000074656×1
  • 105000071699
    $15.14
    shaft seal - 5000071699×1
  • 115000071082
    $4.75
    O-RING 14 X 1.3 - 5000071082×1
  • 125000072332
    $4.18
    NUT M10,HEX.FLANGE - 5000072332×1
  • 135000053994
    $1.84
    SEAL-RING 12MM - 5000053994×2
  • 145000110110
    $1.84
    PIN-COTTER 10MM - 5000110110×1
  • 155000072333
    $2.43
    SCREW M6 X 12,HX.FLANGE - 5000072333×2
