GV3800A VALUE GEN NON-CARB

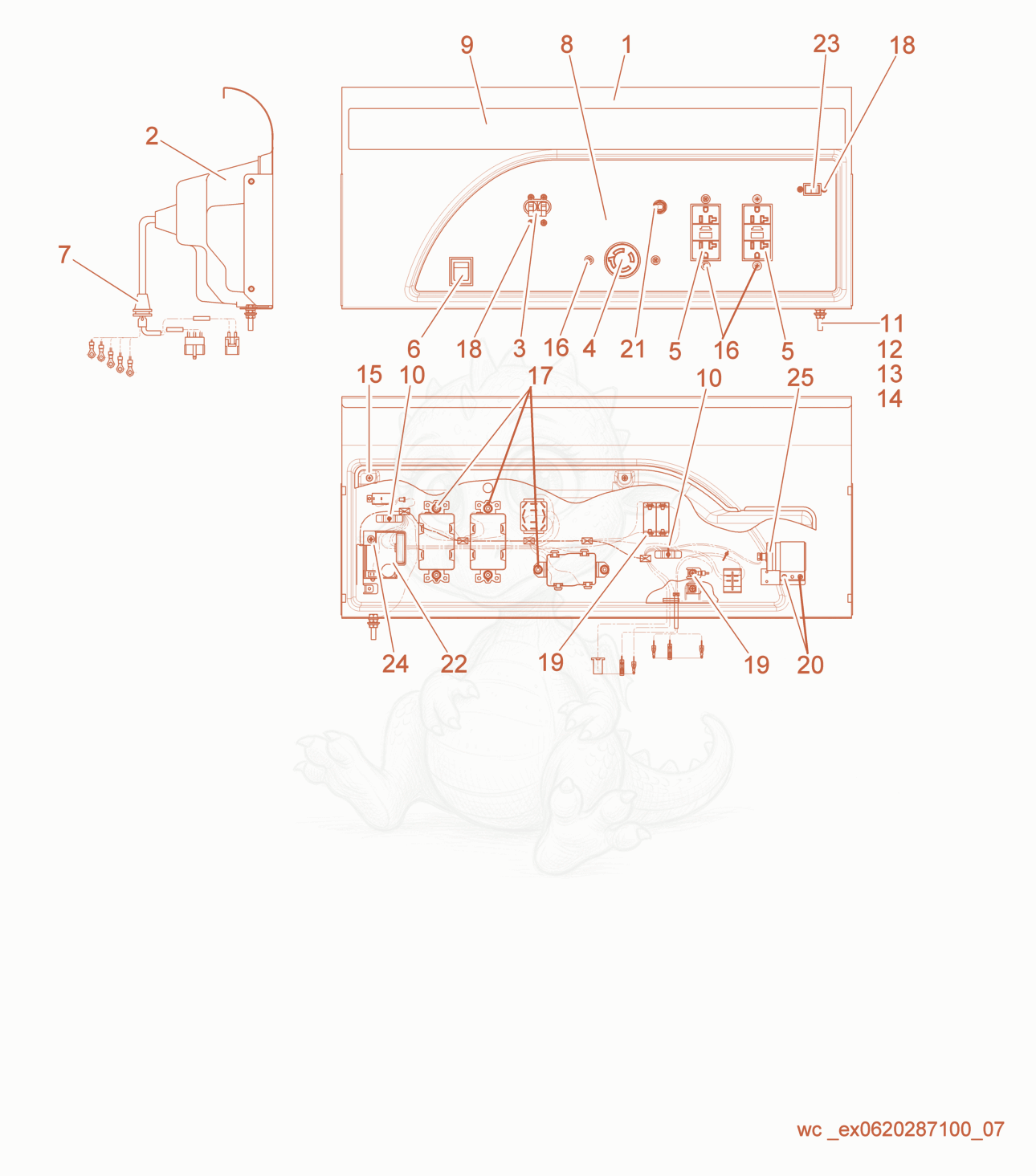

GV3800A Control Box cpl. Diagram
- Panel - 5000170918×1
- Cover - 5000170919×1
- BREAKER-CIRCUIT,16A - 5000170920×1
- RECEPTACLE,L14-20 20A - 5000161015×1
- KIT-GFI RECEPTACLE - 5000089849×2
- SWITCH-ENGINE,ON-OFF - 5000170923×1
- Wiring Harness - 5000170924×1
- PLATE-PANEL - 5000170925×1
- Label - 5000170926×1
- Clip - 5000170908×2
- BOLT M6 X 28 - 5000170909×1
- NUT M6 - 5000170910×2
- WASHER-SPRING M6 - 5000170911×2
- WASHER M6 - 5000170912×1
- SCREW M4 X 10 - 5000170913×4
- SCREW M4 X 10,BLACK - 5000170914×6
- Nut - 5000170915×6
- SCREW M3 X 6 - 5000170936×6
- HANDLE GRIP - 5000170937×5
- SCREW M3 X 12 - 5000170938×2
- SWITCH-VOLTAGE SELECTOR - 5000170939×1
- MODULE-AUTO IDLE - 5000170940×1
- Switch assembly - 5000171703×1
- SCREW M5 X 12 - 5000171704×1
- Capacitor - 5000171705×1
