GV3800A VALUE GEN NON-CARB

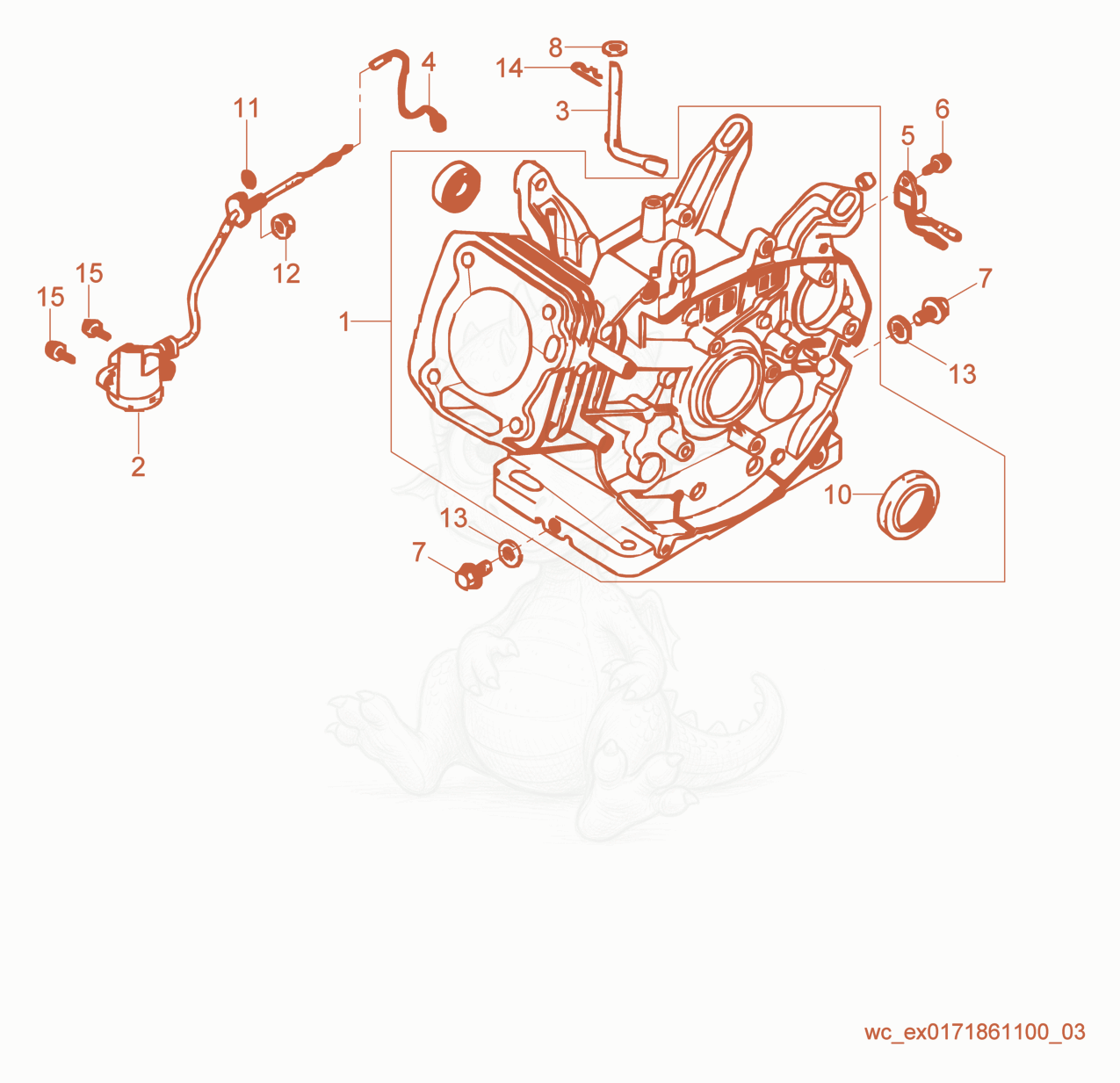

GV3800A Cylinder Diagram
- Cylinder cpl. - 5000213330×1
- SWITCH-OIL ALERT,COMPLETE - 5000075790×1
- Shaft - 5000074641×1
- Ground wire - 5000213371×1
- FILTER-ELECTRONIC (X-5100005313) - 5000125834×1
- SCREW M6 X 12,HX.FLANGE HD. - 5000053990×1
- PLUG M12,HEX.FLANGE - 5000053993×2
- Washer - 5000074656×1
- shaft seal - 5000071699×1
- O-RING 14 X 1.3 - 5000071082×1
- NUT M10,HEX.FLANGE - 5000072332×1
- SEAL-RING 12MM - 5000053994×2
- PIN-COTTER 10MM - 5000110110×1
- SCREW M6 X 12,HX.FLANGE - 5000072333×2
