GV5003A-50 HZ VALUE GEN,SCHUKO

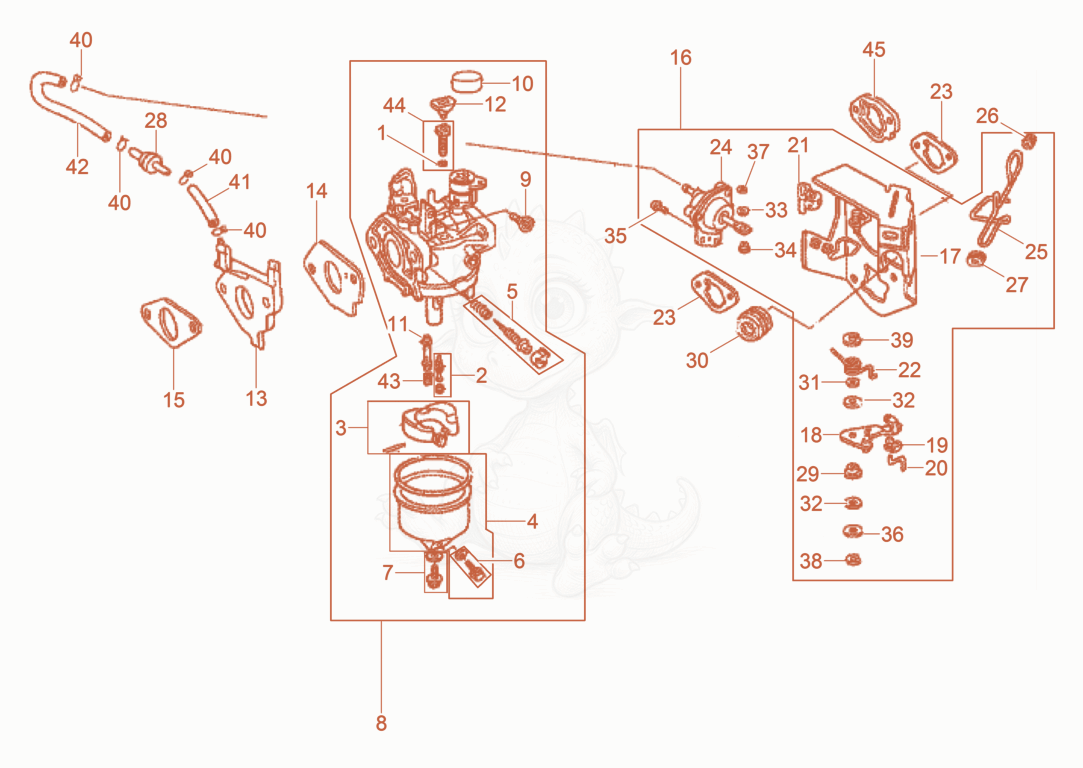

GV5003A Carburetor Diagram
- SET-GASKET,CARBURETOR - 5000158465×1
- SET-FLOAT VALVE - 5000074759×1
- FLOAT COMPL. - 5000217483×1
- Set-carburetor float - 5200000429×1
- SCREW-SET - 5000089286×1
- Screw w/washer, carb. drain - 5200000430×1
- Screw w/washer, carb. bowl - 5200000431×1
- Carburetor cpl. - 5100003399×1
- SCREW-THROTTLE STOP - 5000071018×1
- CAP-CHOKE LEVER DUST - 5000151790×1
- JET-MAIN - 5000084652×1
- SET-COLLAR - 5000089281×1
- INSULATOR-CARBURETOR - 5000158467×1
- Gasket - 5100000390×1
- Gasket - 5100000389×1
- BRACKET ASSEMBLY - 5000162659×1
- BRACKET-SOLENOID - 5000158469×1
- LEVER-CHOKE - 5000158470×1
- ROD-JOINT - 5000158471×1
- ROD-CHOKE - 5000158472×1
- BRACKET-CHOKE ROD STOP - 5000158473×1
- SPRING-MANUAL CHOKE - 5000158474×1
- 235100003436Not stockedSeal×1
- DIAPHRAGM-ASSEMBLY - 5000158476×1
- ROD-CHOKE CONTROL - 5000162670×1
- GROMMET-CHOKE ROD - 5000158478×1
- GUIDE-CHOKE ROD - 5000158479×1
- VALVE-CHECK,DASHPOT - 5000158480×1
- BUSHING-ARM PIVOT - 5000158481×1
- Grommet - 5000158482×1
- WASHER-CHOKE LEVER - 5000158483×1
- SEAL-CHOKE LEVER - 5000158484×1
- WASHER-THRUST - 5000158485×1
- SPACER-LEVER - 5000158486×1
- SCREW-PAN - 5000158487×2
- WASHER-PLAIN - 5000158488×1
- CLIP-RETAINING,2MM - 5000158489×1
- CLIP-RETAINING,4MM - 5000158490×1
- CLIP-RETAINING,7MM - 5000158491×1
- CLIP-TUBE - 5000158492×4
- 415000158493Not stockedHose×1
- 425000158494Not stockedHose×1
- JET-MAIN,SIZE 88 - 5000125840×1
- JET-MAIN #92 - 5000089290×1
- JET-MAIN,SIZE 90 - 5000125841×1
- SET-JET, PILOT #40 - 5000084654×1
- SPACER-CARBURETOR MOUNT - 5000074761×1
