GV5600-Value Gen EPA

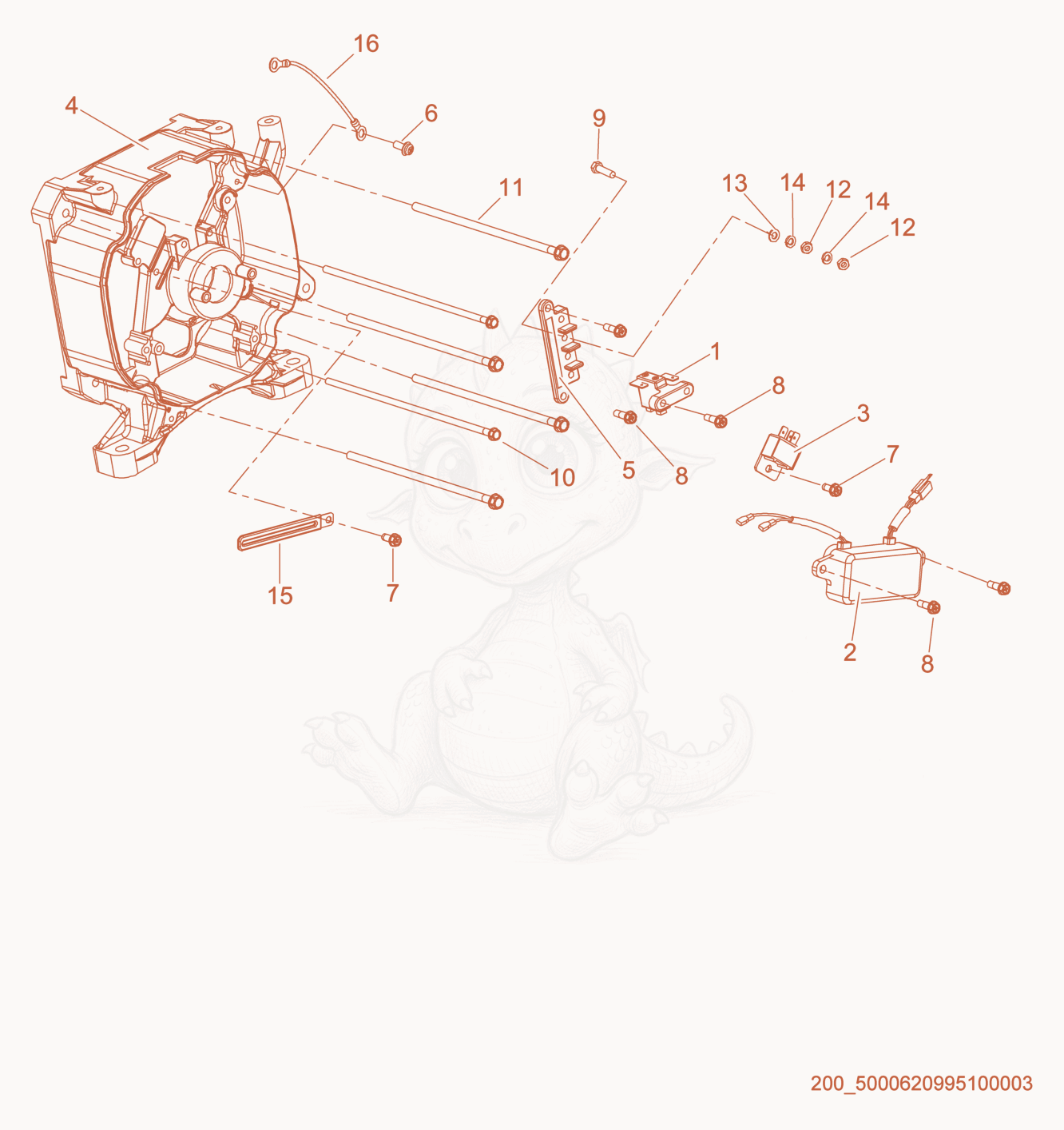

GV5600 AVR & DC Diode Diagram
- BRUSH ASSEMBLY - 5000162490×1
- MODULE-VOLTAGE REGULATOR - 5000171782×1
- DIODE ASSEMBLY - 5000171784×1
- BRACKET-REAR - 5200003530×1
- Terminal board - 5000162509×1
- SCREW M5 X 12 - 5000162472×1
- SCREW-TAPPING M5 X 12 - 5000162474×2
- SCREW M5 X 16 - 5000171787×5
- BOLT M5 X 20 - 5000162477×4
- BOLT M5 X 165 - 5000171789×2
- BOLT M6 X 155 - 5000171792×4
- Nut - 5000162481×8
- Washer - 5000162482×4
- Washer-spring - 5000162483×8
- Plate - 5000171777×1
- WIRE HARNESS - 5000162496×1
