GV 7000A

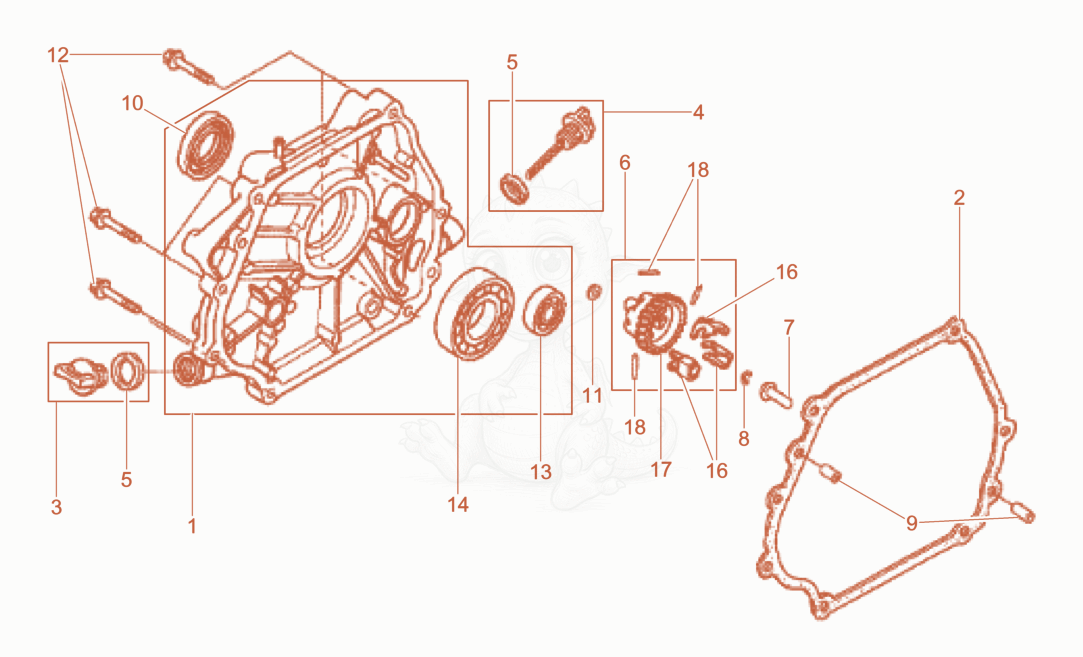

GV7000A Crankcase cover Diagram

Exploded parts diagram of the Crankcase cover of a Wacker Neuson GV7000A, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15100000347
$611.77
Crankcase cover cpl. - 5100000347×1
25100000350
$13.52
Gasket - 5100000350×1
35100031607
$8.10
CAP-OIL FILLER - 5100031607×1
45000217482
$8.69
Dipstick cpl. - 5000217482×1
55000162647
$6.05
Gasket - 5000162647×2
65000082828
$38.54
GOVERNOR-ASSEMBLY - 5000082828×1
75000074632
$4.44
SLIDER-ENGINE GOVERNOR - 5000074632×1
85000081615
$2.07
RET.RING 7.7MM,FORM C - 5000081615×1
95000081617
$4.44
PIN 8 X 12,DOWEL - 5000081617×2
105200000471
$12.60
Seal-shaft - 5200000471×1
115000071639
$0.98
WASHER 6MM,PLAIN - 5000071639×1
125000116734
$1.94
BOLT-FLANGE 8 X 40 - 5000116734×7
135100003509
$20.87
Grooved ball bearing - 5100003509×1
145100003512
$52.12
Grooved ball bearing - 5100003512×1
165000075788
$14.25
WEIGHT-GOVERNOR - 5000075788×3
175000082829
$35.26
HOLDER-GOVERNOR WEIGHT - 5000082829×1
185000074634
$2.66
PIN-GOVERNOR WT RETAINER - 5000074634×3
