Generator GV 7000A

GV7000A Starter Diagram

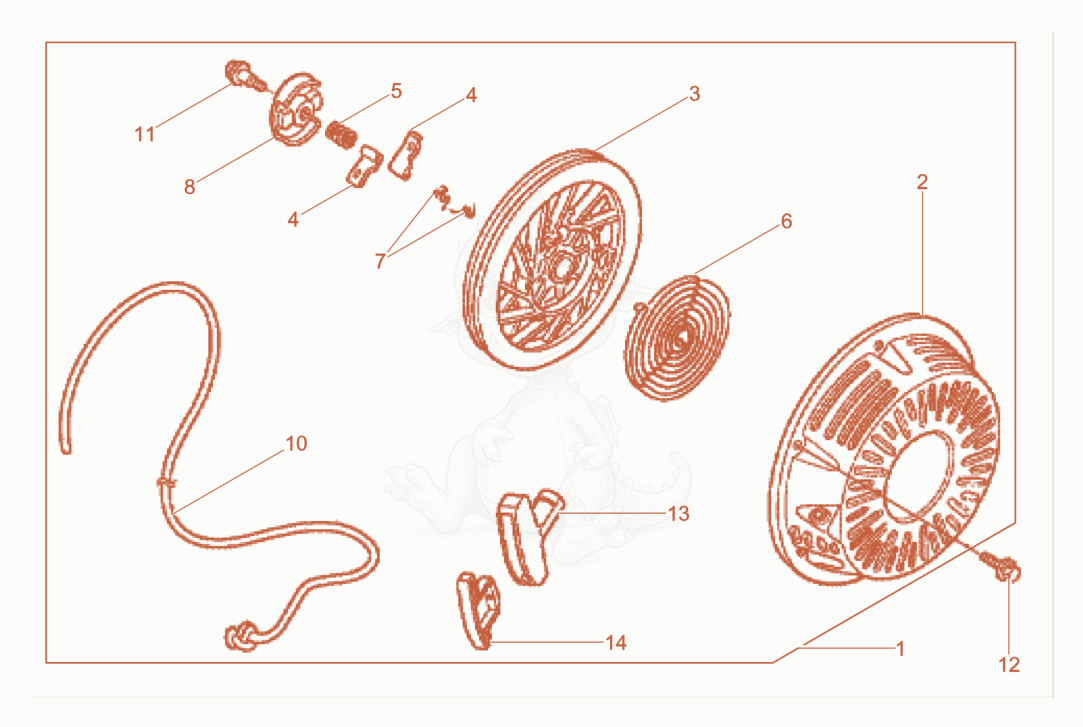

Exploded parts diagram of the Starter of a Wacker Neuson GV7000A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100000425
    $708.15
    Starter - 5100000425×1
  • 15100003448
    $695.24
    Recoil starter cpl. - 5100003448×1
  • 25000082839
    $158.10
    HOUSING-REWIND STARTER - 5000082839×1
  • 35000082840
    $54.24
    PULLEY-REWIND STARTER - 5000082840×1
  • 45000081645
    $9.03
    RATCHET-PAWL,REWIND STARTER - 5000081645×2
  • 55000081646
    $7.24
    SPRING-STARTER FRICTION - 5000081646×1
  • 65000081647
    $22.20
    SPRING-STARTER RETURN - 5000081647×1
  • 75000081648
    $6.31
    SPRING-STARTER RATCHET - 5000081648×2
  • 85000081649
    $17.44
    HOLDER-STARTER SPRING - 5000081649×1
  • 105000082842
    $22.57
    X-5000160151 ROPE-REWIND STARTER - 5000082842Unknown×1
  • 105000208619Not stocked
    Rope×1
  • 115000081658
    $4.88
    Screw - 5000081658×1
  • 125000071053
    $1.89
    SCREW M6 X 10,HX.FLANGED - 5000071053×3
  • 135100000428
    $30.46
    handle - 5100000428×1
  • 145100000429
    $17.48
    Handle - 5100000429×1
