Direct oil-fired space heaters

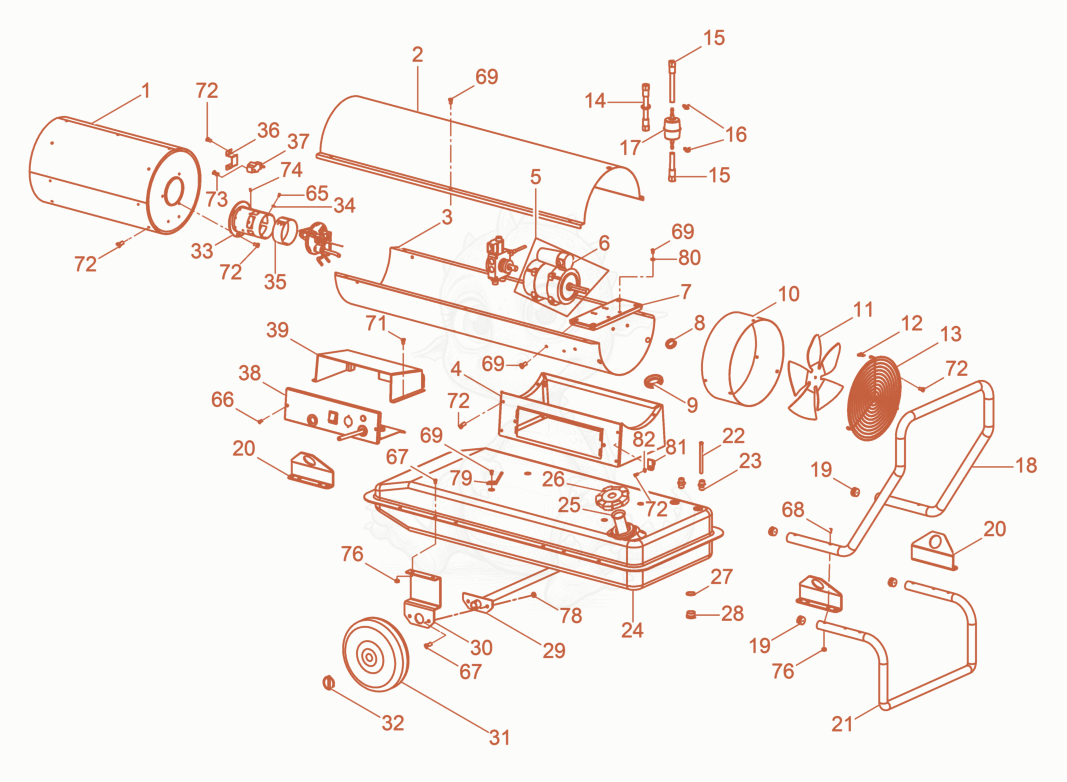

HD49 Direct heater cpl. Diagram
- 15000229036Not stockedCombustion chamber×1
- 25000229024Not stockedCover×1
- 35000229038Not stockedLower part×1
- 45000229046Not stockedBox×1
- 55000229015Not stockedEngine complete×1
- 65000227831Not stockedCapacitor×1
- 75000229030Not stockedFlange×1
- 85000229011Not stockedCable bushing×1
- 95000227809Not stockedCable bushing×1
- 105000229026Not stockedRing×1
- 115000211237Not stockedFan blade×1
- 125000211200Not stockedClip nut×3
- 135000211233Not stockedScreen grid×1
- 145000229049Not stockedTube×1
- 155000227947Not stockedTube×1
- 165000227811Not stockedClamp×1
- 175000211127Not stockedOil filter×1
- 185000229022Not stockedHandle×1
- 195000210695Not stockedLocking plug×4
- 205000229021Not stockedBracket-lifting×2
- 215000229051Not stockedFoot×1
- 225000229047Not stockedIntake pipe×2
- 235000227941Not stockedConnector×2
- 245000229042Not stockedTank×1
- 255000211259Not stockedFilter×1
- 265000210704Not stockedFuel tank cap×1
- 275000227810Not stockedO-Ring×1
- 285000227938Not stockedPlug (threaded)×1
- 295000229044Not stockedAxle×1
- 305000227865Not stockedClamp×2
- 315000210692Not stockedWheel×2
- 325000227956Not stockedSplit×2
- 335000229032Not stockedBurner pipe×1
- 345000227838Not stockedTerminal strip×1
- 355000227924Not stockedBurner air shutter×1
- 365000227848Not stockedThermostat×1
- 375000227910Not stockedFixing×1
- 385100003087Not stockedSchaltkasten×1
- 395000210687Not stockedCovering×1
- 655000211713Not stockedScrew×1
- 665000211163Not stockedScrew×2
- 675000229069Not stockedScrew×8
- 685000229071Not stockedScrew×4
- 695000229072Not stockedScrew×18
- 715000211545Not stockedScrew×2
- 725000229076Not stockedScrew×20
- 735000229080Not stockedScrew×2
- 745000229089Not stockedWing screw×1
- 765000211186Not stockedNut×8
- 785000229086Not stockedCap nut×4
- 795000229060Not stockedFixing×1
- 805000229093Not stockedDisc×4
- 815100000020Not stockedClamp×1
- 825000211709Not stockedWasher×1
