HD 70

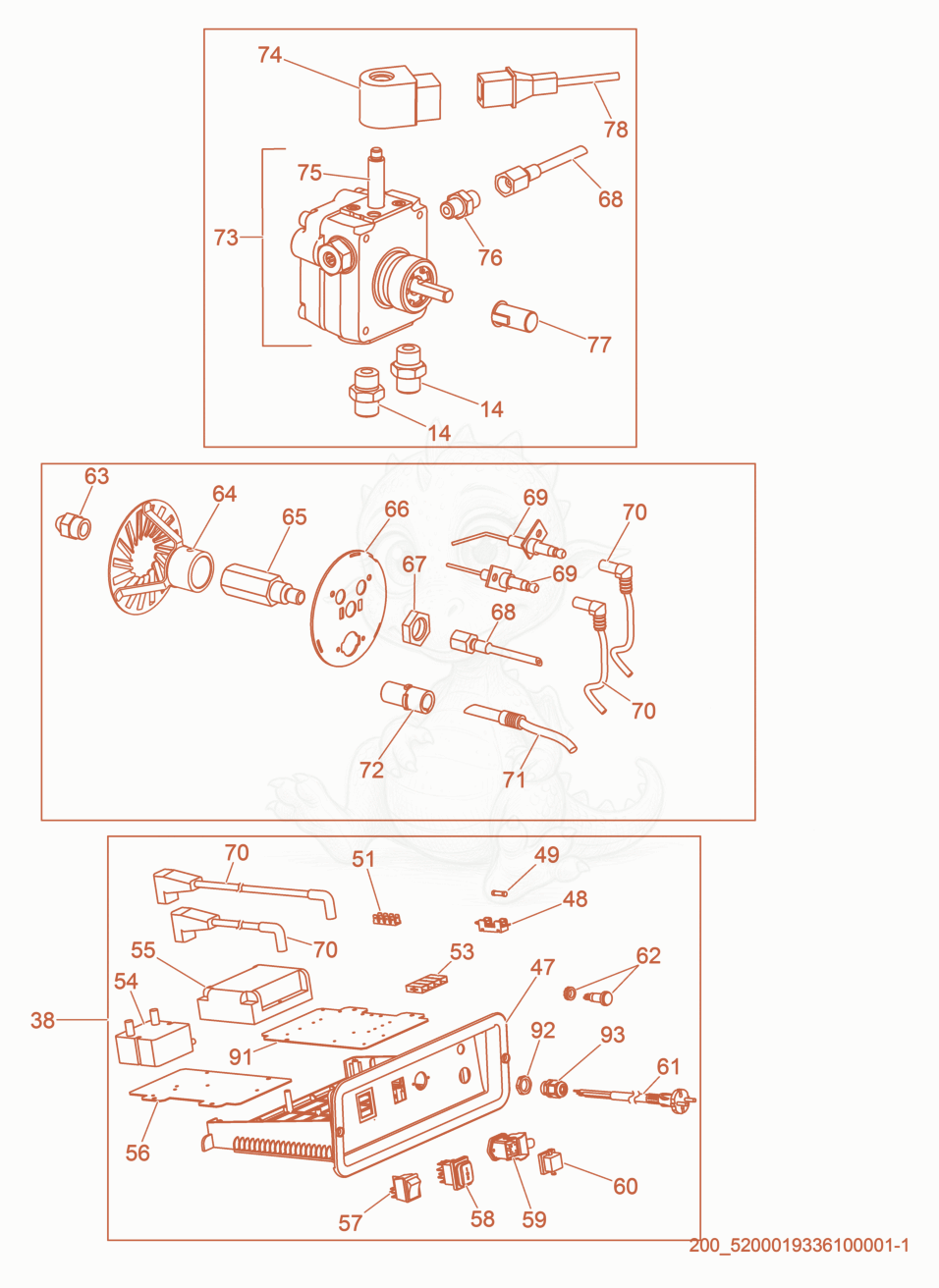

HD70 Fuel Pump / Heater / Control Panel Diagram
- 145000183915Not stockedNipple×2
- 385200023839Not stockedControl box×1
- 475200021224Not stockedPanel, control×1
- 485000183961Not stockedFuse holder×1
- 495200023827Not stockedFuse×1
- 515000183963Not stockedTerminal board×1
- 535000183967Not stockedTerminal board×1
- 545200023830Not stockedTransformer×1
- 555200023837Not stockedControl box×1
- 565200021225Not stockedSupport plate×1
- 575200021226Not stockedReset button×1
- 585000183972Not stockedSwitch×1
- 595000183973Not stockedPlug×1
- 605000183933Not stockedCap×1
- 615200023836Not stockedPower cord×1
- 625000183976Not stockedIndicator light×1
- 635200023882Not stockedNozzle×1
- 645000186775Not stockedTurbulator×1
- 655000186776Not stockedHolder×1
- 665000186777Not stockedFlange×1
- 675000186778Not stockedNut×1
- 685000183946Not stockedPipe×1
- 695000183982Not stockedElectrode×2
- 705200023841Not stockedConnector×2
- 715200023838Not stockedPhoto cell×1
- 725000183986Not stockedCase×1
- 735200023883Not stockedPump×1
- 745200023884Not stockedSolenoid coil×1
- 755200023885Not stockedSolenoid valve×1
- 765000183945Not stockedNipple×1
- 775200011788Not stockedCoupling×1
- 785000183948Not stockedCable×1
- 915200021229Not stockedSupport plate×1
- 925200021239Not stockedCable fastener nut×1
- 935200021252Not stockedCable fastener×1
