HI 120HD

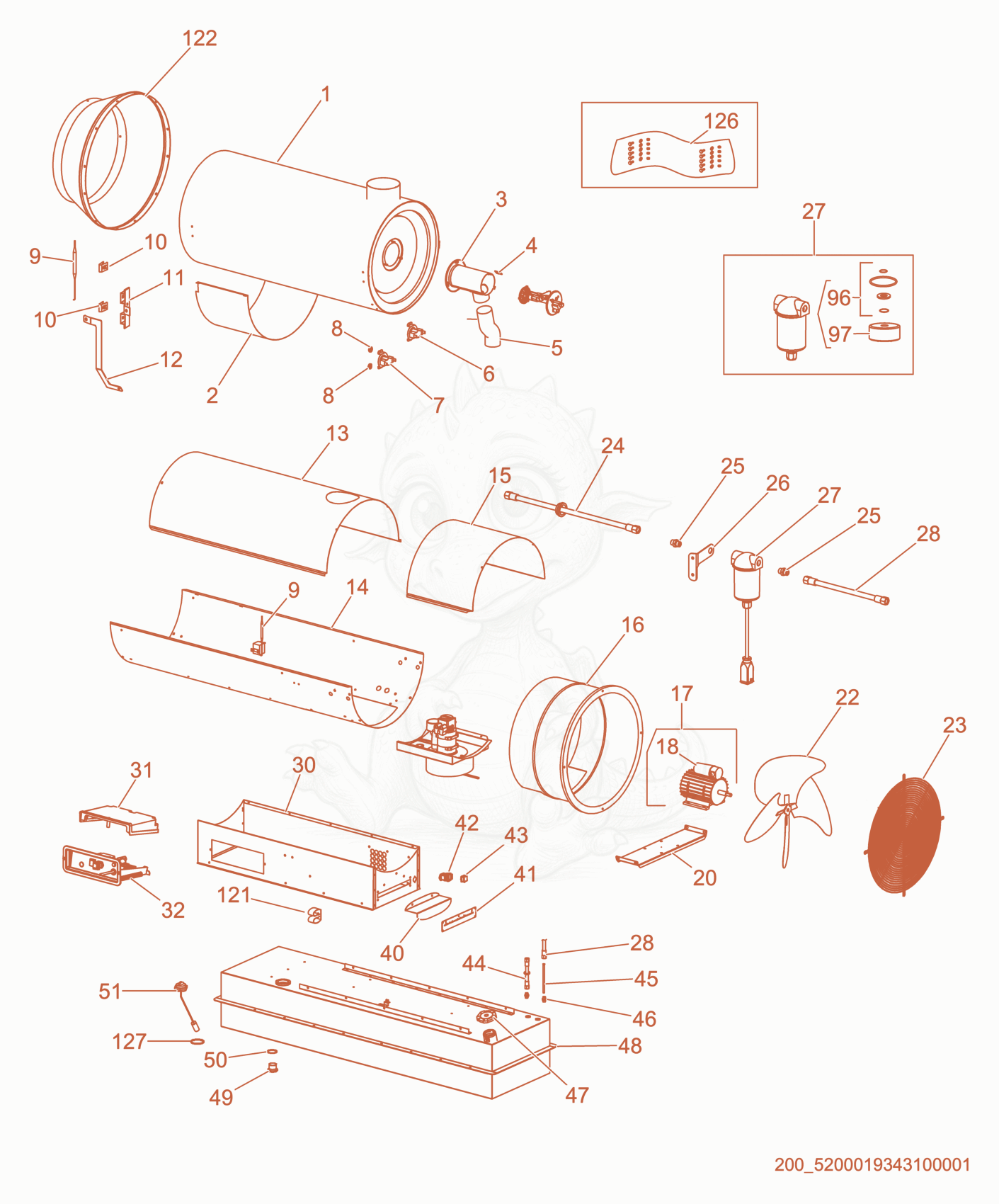

HI120HD Heater Diagram
- 15000183891Not stockedCombustion chamber×1
- 25000183892Not stockedSupport×1
- 35000183893Not stockedTube×1
- 45000183894Not stockedTerminal board×1
- 55000183895Not stockedAir duct×1
- 65000183896Not stockedThermostat, Fan×1
- 75000183897Not stockedThermostat×1
- 85000183898Not stockedWasher×2
- 95000183899Not stockedThermostat×1
- 105000183900Not stockedClip×1
- 115000183901Not stockedBracket×1
- 125000183902Not stockedSupport×1
- 135000183903Not stockedUpper cover×1
- 145000183904Not stockedLower cover×1
- 155000183905Not stockedCover×1
- 165000183906Not stockedAir intake×1
- 175200024747Not stockedMotor×1
- 185200024743Not stockedCapacitor×1
- 205000183910Not stockedFlange×1
- 225200024735Not stockedFan×1
- 235000183913Not stockedFan guard×1
- 245000183914Not stockedFuel line×1
- 255000183915Not stockedNipple×2
- 265000183916Not stockedBracket×1
- 275200024754Not stockedPrefilter×1
- 285000183918Not stockedFuel line×1
- 305200024738Not stockedBase×1
- 315000183921Not stockedCover×1
- 325200024745Not stockedControl box×1
- 405000183930Not stockedBracket×1
- 415000183931Not stockedPanel×1
- 425000183932Not stockedPlug×1
- 435000183933Not stockedCap×1
- 445000183934Not stockedFuel line×1
- 455000183935Not stockedTube×1
- 465000183936Not stockedNipple×1
- 475000183937Not stockedFuel tank cap×1
- 485200006927Not stockedFuel tank×1
- 495000183939Not stockedDrain plug×1
- 505000183940Not stockedO-Ring×1
- 515000183941Not stockedFuel gauge×1
- 965000183989Not stockedO-Ring Kit×1
- 975200021228Not stockedFilter cartridge×1
- 1215200021255Not stockedCable holder×1
- 1225200024757Not stockedOutlet air cone×1
- 1265200024740Not stockedHardware Kit×1
- 1275100030353Not stockedO-Ring×1
