Oil-fired space heater with chimney HI34

HI34 Fire-place heater cpl. Diagram

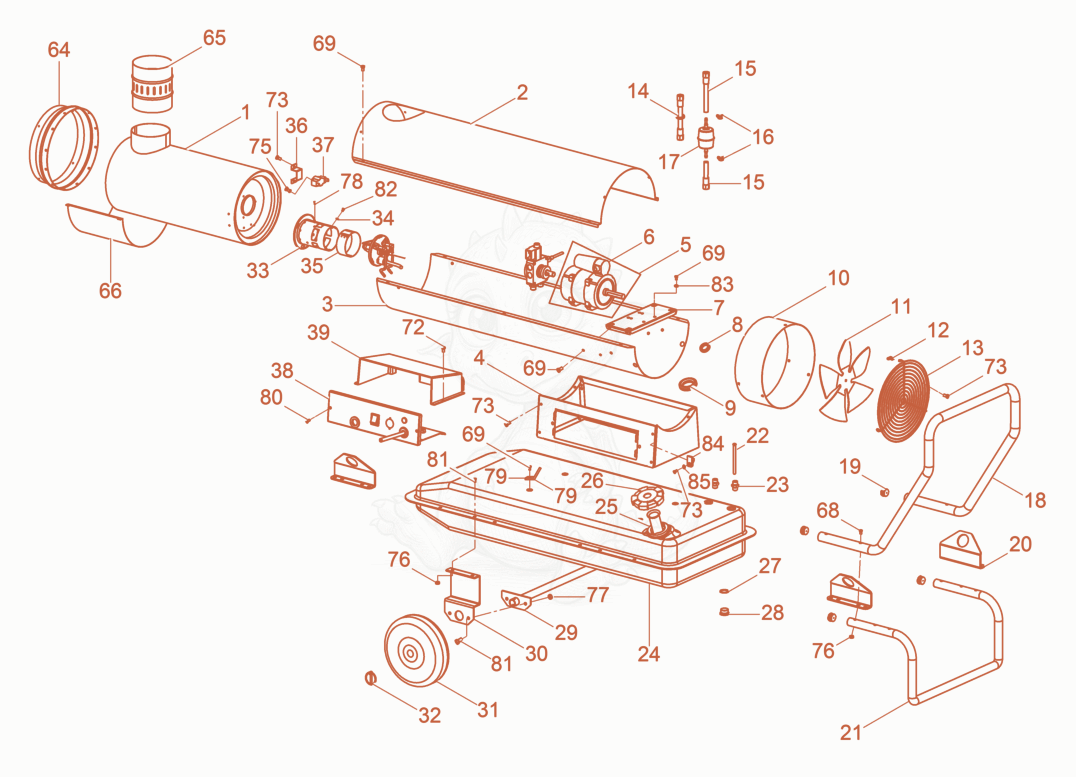

Exploded parts diagram of the Fire-place heater cpl. of a Wacker Neuson HI34, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000229040Not stocked
    Combustion chamber×1
  • 25000229039Not stocked
    Cover×1
  • 35000229033Not stocked
    Lower part×1
  • 45000229046Not stocked
    Box×1
  • 55000229015Not stocked
    Engine complete×1
  • 65000227831Not stocked
    Capacitor×1
  • 75000229030Not stocked
    Flange×1
  • 85000229011Not stocked
    Cable bushing×1
  • 95000227809Not stocked
    Cable bushing×1
  • 105000229026Not stocked
    Ring×1
  • 115000211237Not stocked
    Fan blade×1
  • 125000211200Not stocked
    Clip nut×1
  • 135000211233Not stocked
    Screen grid×1
  • 145000229049Not stocked
    Tube×1
  • 155000227947Not stocked
    Tube×1
  • 165000227811Not stocked
    Clamp×1
  • 175000211127Not stocked
    Oil filter×1
  • 185000229022Not stocked
    Handle×1
  • 195000210695Not stocked
    Locking plug×1
  • 205000229021Not stocked
    Bracket-lifting×1
  • 215000229051Not stocked
    Foot×1
  • 225000229047Not stocked
    Intake pipe×1
  • 235000227941Not stocked
    Connector×1
  • 245000229042Not stocked
    Tank×1
  • 255000211259Not stocked
    Filter×1
  • 265000210704Not stocked
    Fuel tank cap×1
  • 275000227810Not stocked
    O-Ring×1
  • 285000227938Not stocked
    Plug (threaded)×1
  • 295000229044Not stocked
    Axle×1
  • 305000227865Not stocked
    Clamp×1
  • 315000210692Not stocked
    Wheel×1
  • 325000227956Not stocked
    Split×1
  • 335000229041Not stocked
    Burner pipe×1
  • 345000227838Not stocked
    Terminal strip×1
  • 355000227891Not stocked
    Burner air shutter×1
  • 365000227848Not stocked
    Thermostat×1
  • 375000227910Not stocked
    Fixing×1
  • 385100003088Not stocked
    Switch box×1
  • 395000210687Not stocked
    Covering×1
  • 645000229027Not stocked
    Ring×1
  • 655000227863Not stocked
    Chimney×1
  • 665000229028Not stocked
    Cover plate×1
  • 685000229071Not stocked
    Screw×4
  • 695000229072Not stocked
    Screw×14
  • 725000211545Not stocked
    Screw×2
  • 735000229076Not stocked
    Screw×15
  • 755000229080Not stocked
    Screw×2
  • 765000211186Not stocked
    Nut×8
  • 775000229086Not stocked
    Cap nut×4
  • 785000229089Not stocked
    Wing screw×1
  • 795000229056Not stocked
    Fixing×1
  • 805000211163Not stocked
    Screw×2
  • 815000229069Not stocked
    Screw×8
  • 825000211713Not stocked
    Screw×1
  • 835000229093Not stocked
    Disc×4
  • 845100000020Not stocked
    Clamp×1
  • 855000211709Not stocked
    Washer×1
