HI35

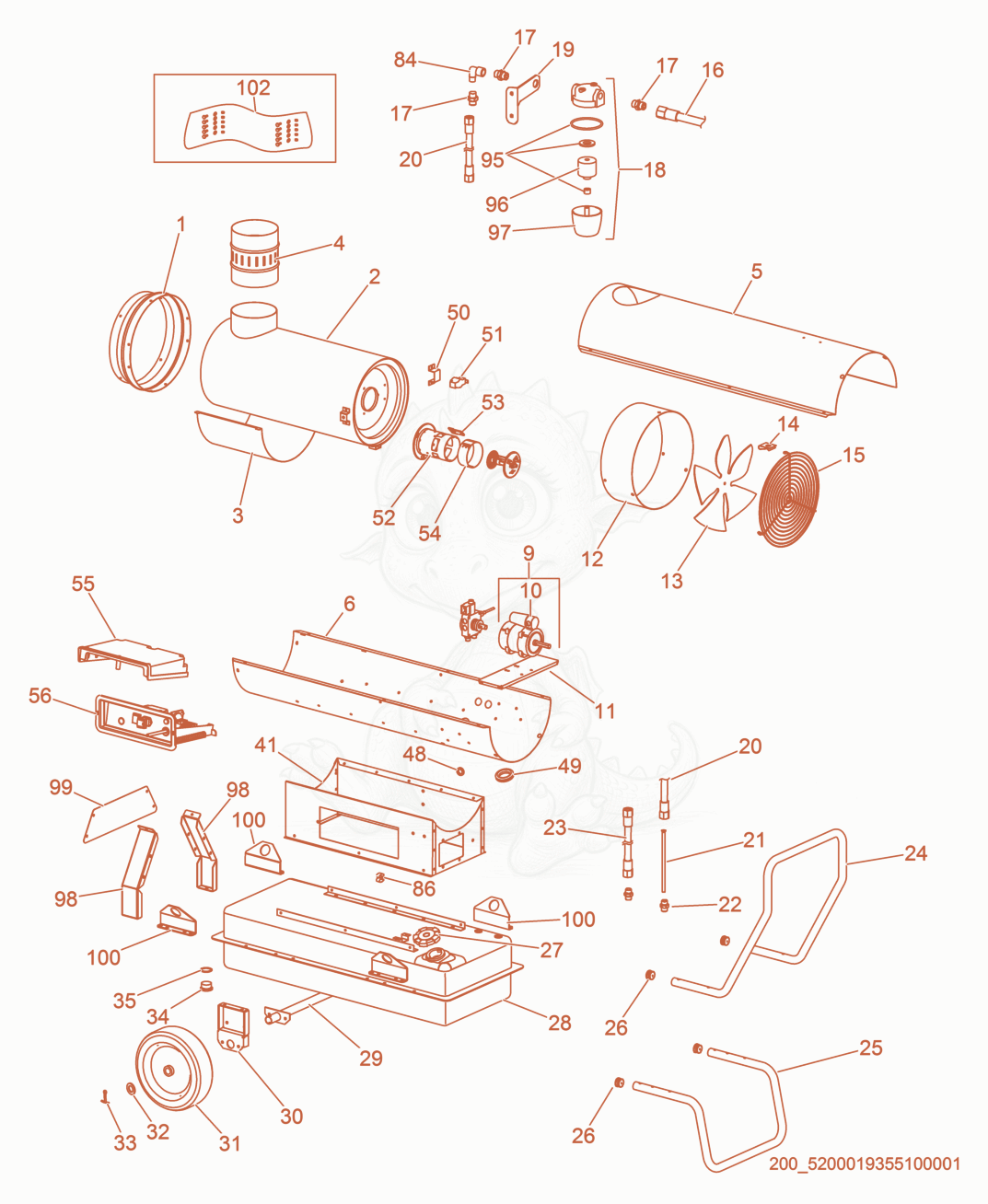

HI35 Heater Diagram
- 15000186799Not stockedAir outlet×1
- 25000186800Not stockedCombustion chamber×1
- 35000186801Not stockedSupport×1
- EXHAUST FLUE - 5200002668×1
- EXHAUST FLUE - 5200002668×1
- 65000186803Not stockedLower cover×1
- 95200023828Not stockedMotor×1
- 105200023832Not stockedCapacitor×1
- 115000186804Not stockedPlate×1
- 125000186805Not stockedAir intake×1
- 135000186806Not stockedFan blade×1
- 145000186807Not stockedClip×1
- 155000186808Not stockedFan guard×1
- 165000186809Not stockedFuel line×1
- 175000183915Not stockedNipple×3
- 185200023876Not stockedFilter cpl.×1
- 195000183916Not stockedBracket×1
- 205000186752Not stockedFuel line×1
- 215000186810Not stockedFuel line×1
- 225000183936Not stockedNipple×1
- 235000186750Not stockedFuel line×1
- 245000186811Not stockedHandle×1
- 255000186812Not stockedFoot×1
- 265000186813Not stockedCap×4
- 275000186757Not stockedFuel tank cap×1
- 285000186814Not stockedFuel tank×1
- 295200021571Not stockedAxle×1
- 305000186816Not stockedBracket×2
- 315000186817Not stockedWheel×2
- 325000184000Not stockedWasher×2
- 335200023869Not stockedCotter pin×2
- 345000183939Not stockedDrain plug×1
- 355000183940Not stockedO-Ring×1
- 415200023863Not stockedBase×1
- 485000184011Not stockedGrommet×1
- 495000183953Not stockedGrommet×1
- 505000186820Not stockedBracket×1
- 515000186821Not stockedThermostat×1
- 525000186822Not stockedTube×1
- 535000183894Not stockedTerminal board×1
- 545000186768Not stockedRegulator×1
- 555000183921Not stockedCover×1
- 565200023839Not stockedControl box×1
- FITTING-ELBOW, 1/4"FF - 5200002673×1
- 865200021255Not stockedCable holder×1
- 985000186830Not stockedSupport×2
- 995000186831Not stockedGuard×1
- 1005000186758Not stockedLifting bracket (set of 4)×4
- 1025200024739Not stockedHardware Kit×1
