HI 400HD D Indirect Air Heater

HI400HDD Fuel Pump/Control Panel/Burner Diagram

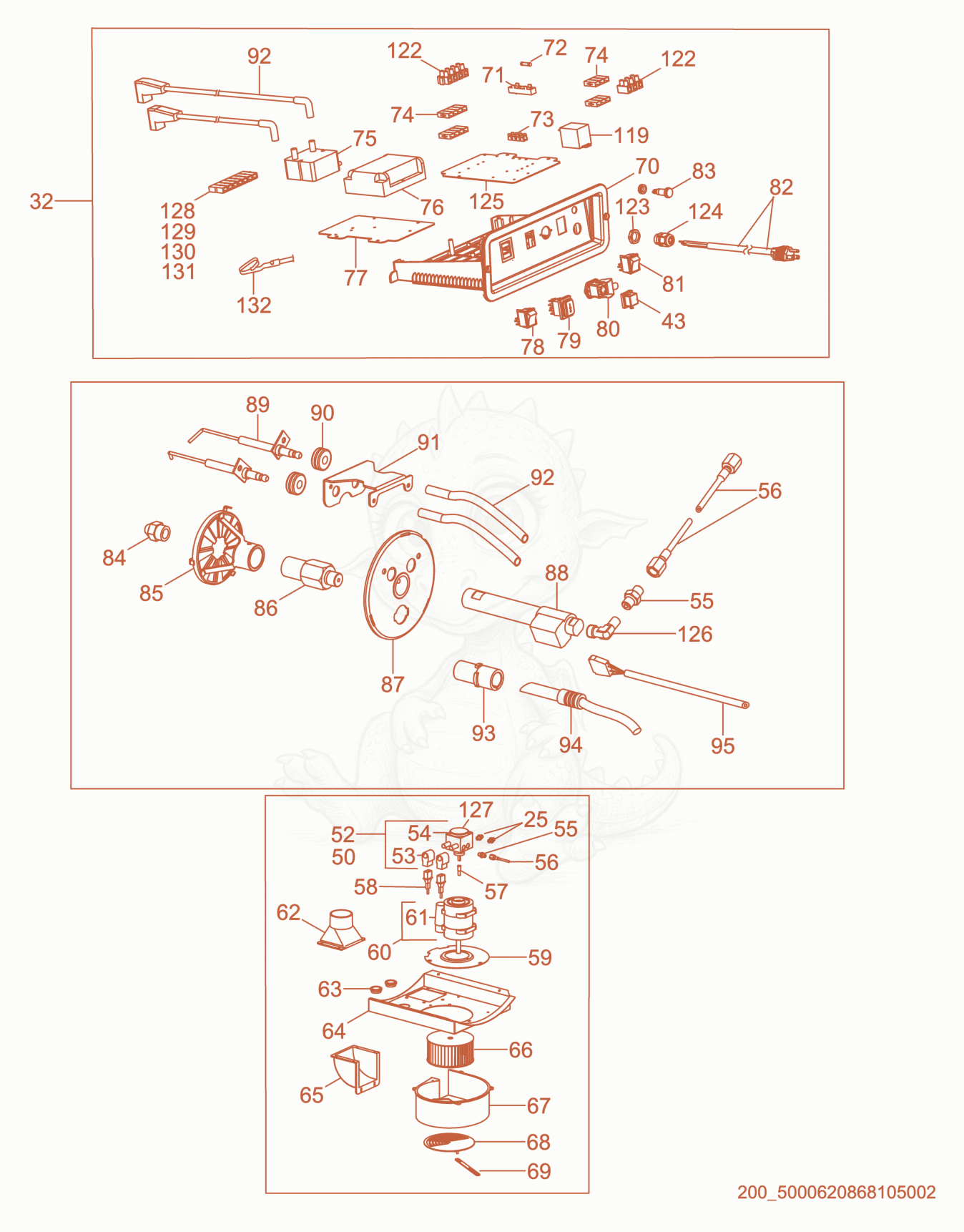

Exploded parts diagram of the Fuel Pump/Control Panel/Burner of a Wacker Neuson HI400HDD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 255000183915Not stocked
    Nipple×1
  • 325200002664
    $981.56
    Controller Panel Cpl. HI400 HD D - 5200002664×1
  • 435000183933Not stocked
    Cap×1
  • 505100055563
    $255.77
    Fuel Pump Service Kit - 5100055563×1
  • 525000183942Not stocked
    Fuel pump×1
  • 535000183943Not stocked
    Coil×1
  • 545000183944Not stocked
    Valve×1
  • 555000183945Not stocked
    Nipple×1
  • 555000183945Not stocked
    Nipple×1
  • 565000183946Not stocked
    Pipe×1
  • 575200011788Not stocked
    Coupling×1
  • 585000183948Not stocked
    Cable×2
  • 595000183949Not stocked
    Support×1
  • 605100018612Not stocked
    Motor×1
  • 615100018615Not stocked
    Capacitor×1
  • 625000183952Not stocked
    Connection piece×1
  • 635000183953Not stocked
    Grommet×2
  • 645000183954Not stocked
    Bracket×1
  • 655000183955Not stocked
    Elbow×1
  • 665000183956Not stocked
    Blower wheel×1
  • 675000183957Not stocked
    Casing×1
  • 685000183958Not stocked
    Air damper×1
  • 695000183959Not stocked
    Lever×1
  • 705200021284Not stocked
    Panel, control×1
  • 715200021269Not stocked
    Fuse holder×1
  • 725000183962Not stocked
    Fuse×1
  • 735000183963Not stocked
    Terminal board×1
  • 745000183967Not stocked
    Terminal board×2
  • 755000183968Not stocked
    Transformer×1
  • 765000183969Not stocked
    Control×1
  • 775200021225Not stocked
    Support plate×1
  • 785200021226Not stocked
    Reset button×1
  • 785200021226Not stocked
    Reset button×1
  • 795000183972Not stocked
    Switch×1
  • 805000183973Not stocked
    Plug×1
  • 815000183974Not stocked
    Switch×1
  • 825200021227Not stocked
    Power cord×1
  • 835000183976Not stocked
    Indicator light×1
  • 845000183977Not stocked
    Standard elevation burner nozzle×1
  • 855000183978Not stocked
    Disc×1
  • 865000183979Not stocked
    Holder×1
  • 875000183980Not stocked
    Flange×1
  • 885000183981Not stocked
    Heater×1
  • 895000183982Not stocked
    Electrode×2
  • 905000183983Not stocked
    Grommet×2
  • 915000183984Not stocked
    Bracket×1
  • 925000183985Not stocked
    Wire×1
  • 935000183986Not stocked
    Case×1
  • 945000183987Not stocked
    Photo cell×1
  • 955000183988Not stocked
    Wire×1
  • 1195200002662
    $39.35
    RELAY - 5200002662×1
  • 1215200021255Not stocked
    Cable holder×1
  • 1225200021271Not stocked
    Terminal board×2
  • 1235200021239Not stocked
    Cable fastener nut×1
  • 1245200021252Not stocked
    Cable fastener×1
  • 1255200021229Not stocked
    Support plate×1
  • 1265100022280Not stocked
    Fitting×1
  • 1275100036503Not stocked
    Filter×1
  • 1285100048674Not stocked
    Connector, 3-pin×1
  • 1295100048675Not stocked
    Connector, 5-pin×1
  • 1305100048494
    $1.54
    Connector, 6-pin - 5100048494×1
  • 1315100048676Not stocked
    Connector, 7-pin×1
  • 1325100048493
    $0.18
    Terminal - 5100048493×1
