HI 400HD G Indirect Air Heater

HI400HDG Fuel Pump/Control Panel/Burner Diagram

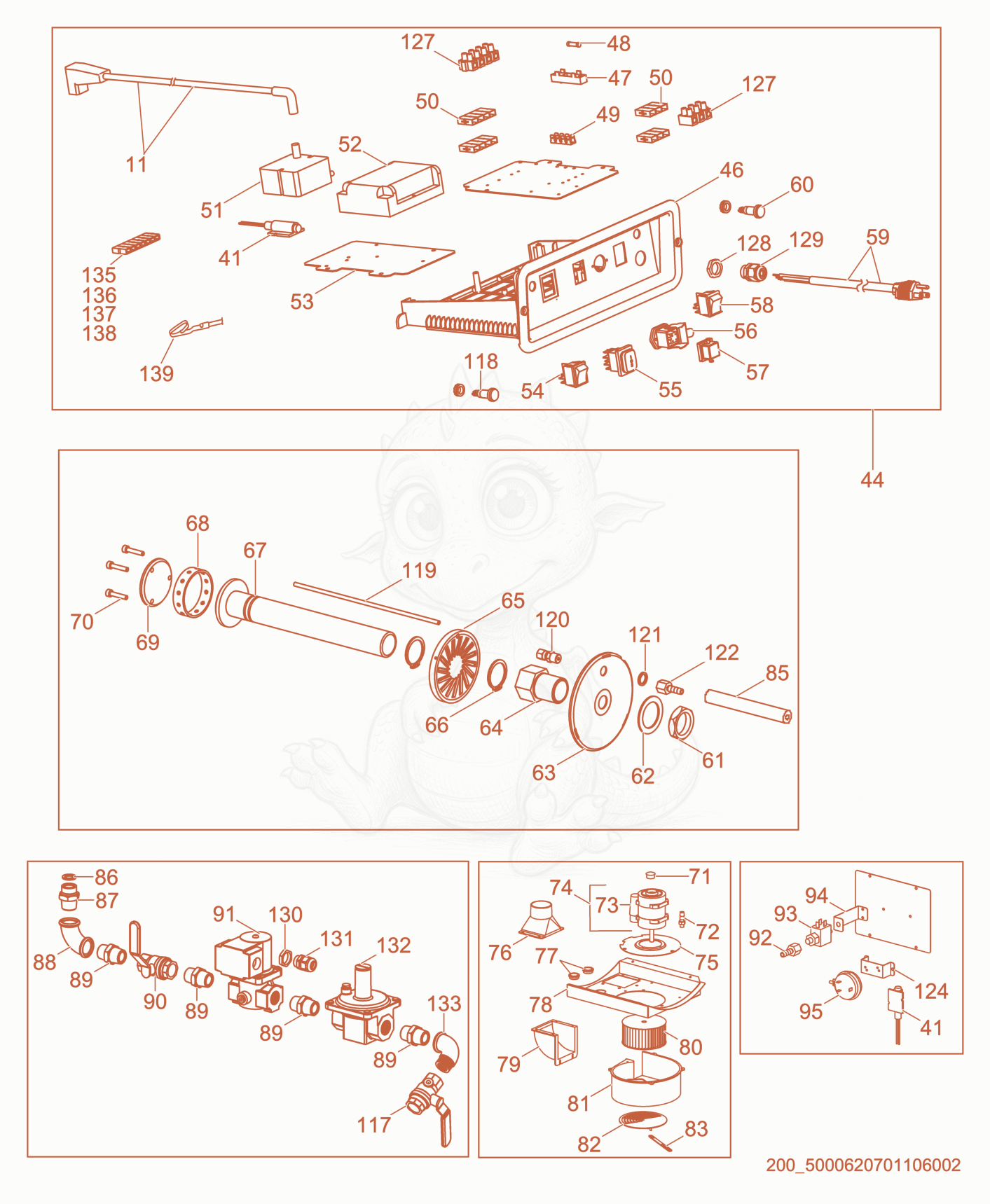

Exploded parts diagram of the Fuel Pump/Control Panel/Burner of a Wacker Neuson HI400HDG, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 115100050808Not stocked
    Wiring Harness×1
  • 415000183924Not stocked
    Temperature sensor×1
  • 465200021289Not stocked
    Panel, control×1
  • 475200021269Not stocked
    Fuse holder×1
  • 485000183962Not stocked
    Fuse×1
  • 495000183963Not stocked
    Terminal board×1
  • 505000183967Not stocked
    Terminal board×2
  • 515000184014Not stocked
    Transformer×1
  • 525000184016Not stocked
    Control×1
  • 535200021291Not stocked
    Support plate×1
  • 545200021226Not stocked
    Reset button×1
  • 555000183972Not stocked
    Switch×1
  • 565000183973Not stocked
    Plug×1
  • 575000183933Not stocked
    Cap×1
  • 585000184015Not stocked
    Lamp×1
  • 595200021227Not stocked
    Power cord×1
  • 605000183976Not stocked
    Indicator light×1
  • 615000186688Not stocked
    Nut×1
  • 625000186697Not stocked
    Washer×1
  • 635000186672Not stocked
    Flange×1
  • 645000186706Not stocked
    Fitting×1
  • 655000186703Not stocked
    Disc×1
  • 665000186699Not stocked
    Snap ring×2
  • 675000186704Not stocked
    Tube×1
  • 685000186705Not stocked
    Diffuser×1
  • 695000186687Not stocked
    Plate×1
  • 705100026792Not stocked
    Screw×3
  • 715000184012Not stocked
    Dust cover×1
  • 725000183927Not stocked
    Connector×1
  • 735100018615Not stocked
    Capacitor×1
  • 745100018612Not stocked
    Motor×1
  • 755000183949Not stocked
    Support×1
  • 765000183952Not stocked
    Connection piece×1
  • 775000183953Not stocked
    Grommet×2
  • 785000183954Not stocked
    Bracket×1
  • 795000183955Not stocked
    Elbow×1
  • 805000186707Not stocked
    Wheel×1
  • 815000183957Not stocked
    Casing×1
  • 825000183958Not stocked
    Air damper×1
  • 835000183959Not stocked
    Lever×1
  • 855000183926Not stocked
    Tube×1
  • 865000186692Not stocked
    Seal×1
  • 875000186691Not stocked
    Fitting×1
  • 885000183888Not stocked
    Elbow×1
  • 895000186690Not stocked
    Fitting×1
  • 905100026793Not stocked
    Valve×1
  • 915100026794Not stocked
    Valve×1
  • 925200002933
    $4.58
    PENDX-5000186689 BARB-HOSE,1/8IN - 5200002933×1
  • 935000186709Not stocked
    Solenoid valve×1
  • 945200011965Not stocked
    Support bracket×1
  • 955200011966Not stocked
    Pressure switch×1
  • 1175200002917
    $96.18
    VALVE-BALL ¾” inlet thread - 5200002917×1
  • 1185000183976Not stocked
    Indicator light×1
  • 1195200002930
    $8.90
    PIPE-FUEL 4 X 190mm - 5200002930×1
  • 1205200002931
    $3.14
    FITTING-COMPRESSION 1/8 - 5200002931×1
  • 1215200002932
    $0.17
    WASHER 1/8"X1,5mm - 5200002932×1
  • 1225200002933
    $4.58
    PENDX-5000186689 BARB-HOSE,1/8IN - 5200002933×1
  • 1245200006923Not stocked
    Support×1
  • 1265200021292Not stocked
    Support plate×1
  • 1275200021271Not stocked
    Terminal board×2
  • 1285200021239Not stocked
    Cable fastener nut×1
  • 1295200021252Not stocked
    Cable fastener×1
  • 1305100026795Not stocked
    Nut-cable fastener×1
  • 1315100026796Not stocked
    Cable fastener×1
  • 1325100026797Not stocked
    Regulator×1
  • 1335100026798Not stocked
    Fitting×1
  • 1355100048674Not stocked
    Connector, 3-pin×1
  • 1365100048675Not stocked
    Connector, 5-pin×1
  • 1375100048494
    $1.54
    Connector, 6-pin - 5100048494×1
  • 1385100048676Not stocked
    Connector, 7-pin×1
  • 1395100048493
    $0.18
    Terminal - 5100048493×1
