HI750 DGM HEATER-INDIRECT

HI750GM Fuel Hose Routing Diagram

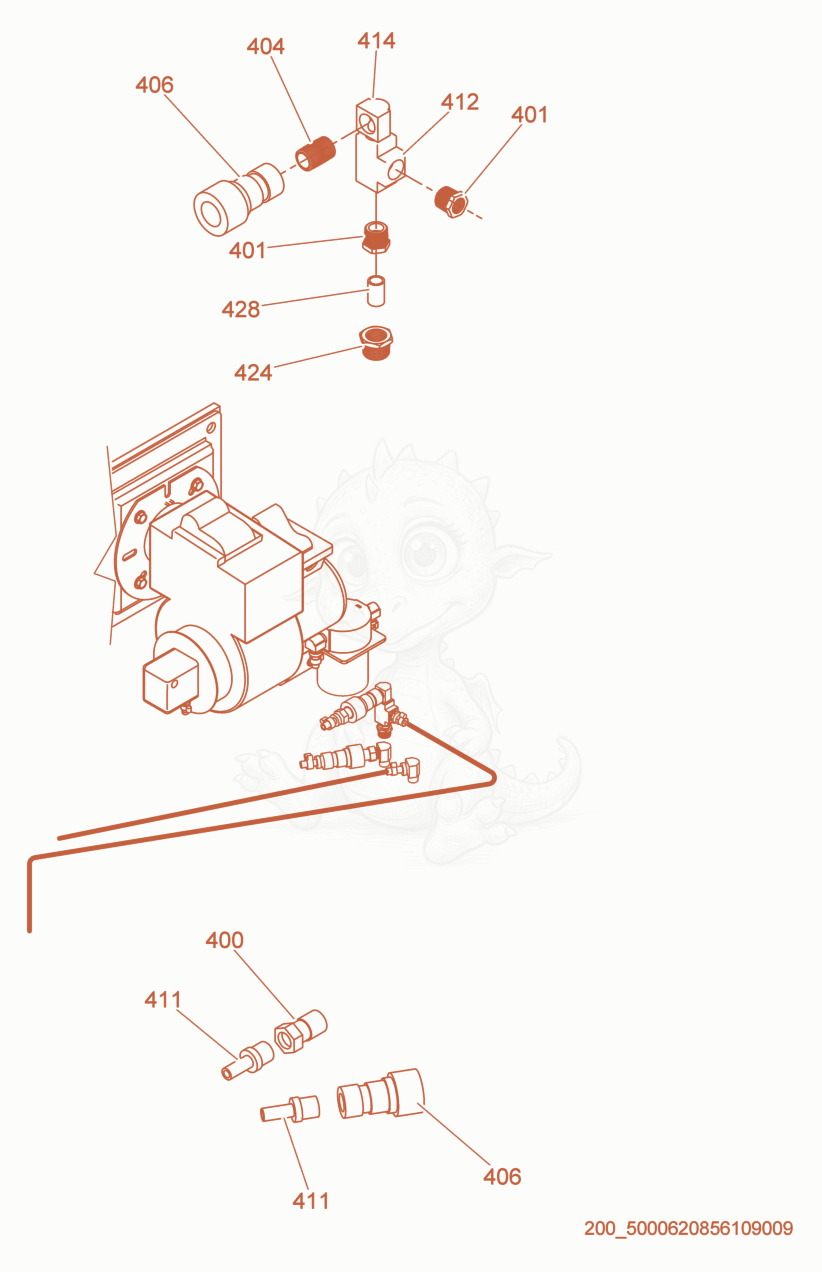

Exploded parts diagram of the Fuel Hose Routing of a Wacker Neuson HI750GM, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 4005000168012Not stocked
    Quick coupler×2
  • 4015000168034Not stocked
    Bushing×2
  • 4045000170108Not stocked
    Nipple fitting×2
  • 4065000168010Not stocked
    Quick coupler×2
  • 4115000168595Not stocked
    Hose barb×2
  • 4125000180570Not stocked
    Tee fitting×2
  • 4145000180571
    $8.60
    FITTING-ELBOW,3/8 NPTFX3/8 NPT - 5000180571×2
  • 4245000168458Not stocked
    Bushing×2
  • 4285000168062Not stocked
    Nipple fitting×1
