HI 900DGM Heater-Indirect

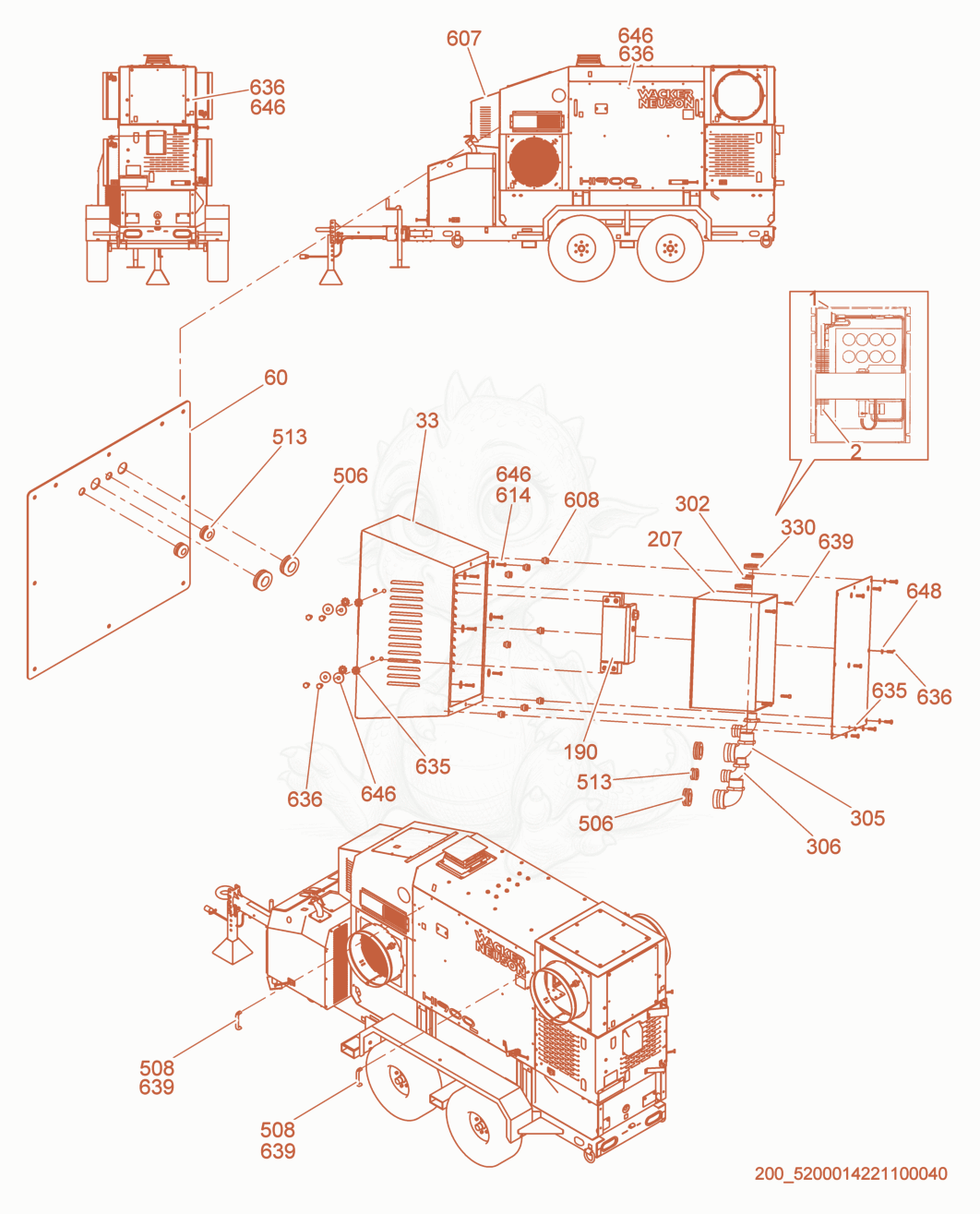

HI900DGM VFD Module cpl. Diagram

Exploded parts diagram of the VFD Module cpl. of a Wacker Neuson HI900DGM, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000173270Not stocked
    Control×1
  • 25000173271Not stocked
    Air heater×1
  • 335000181098Not stocked
    Box×1
  • 605000181892Not stocked
    Panel×1
  • 1905200000916
    $1,187.57
    Box-Fuse, Assy, VFD - 5200000916×1
  • 2075200000576
    $8,460.74
    Control-Motor Drive, VFD 15HP, AC Tech - 5200000576Unknown×1
  • 2075200000577Not stocked
    Sensor×1
  • 3025000166459Not stocked
    Lock nut×2
  • 3055000181847Not stocked
    Strain relief×2
  • 3065000181848Not stocked
    Strain relief×2
  • 3305000174000Not stocked
    Nut×2
  • 5065000168907Not stocked
    Grommet×4
  • 5085000172595Not stocked
    Handle×4
  • 5135000181893Not stocked
    Grommet×3
  • 6075000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×4
  • 6085000173960Not stocked
    Nut×8
  • 6355000189214Not stocked
    Washer×1
  • 6355000189214Not stocked
    Washer×4
  • 6365000189215Not stocked
    Hexagonal head cap screw×6
  • 6365000189215Not stocked
    Hexagonal head cap screw×8
  • 6365000189215Not stocked
    Hexagonal head cap screw×4
  • 6395000011550
    $0.09
    SCREW M6 X 25 SOC.HD. - 5000011550×4
  • 6395000011550
    $0.09
    SCREW M6 X 25 SOC.HD. - 5000011550×4
  • 6465000192389Not stocked
    Flat washer×6
  • 6465000192389Not stocked
    Flat washer×6
  • 6465000192389Not stocked
    Flat washer×4
  • 6485000192393Not stocked
    Flat washer×8
