HIF 1200 Flameless Air Heater

HIF1200 Trailer/Enclosure cpl. Diagram

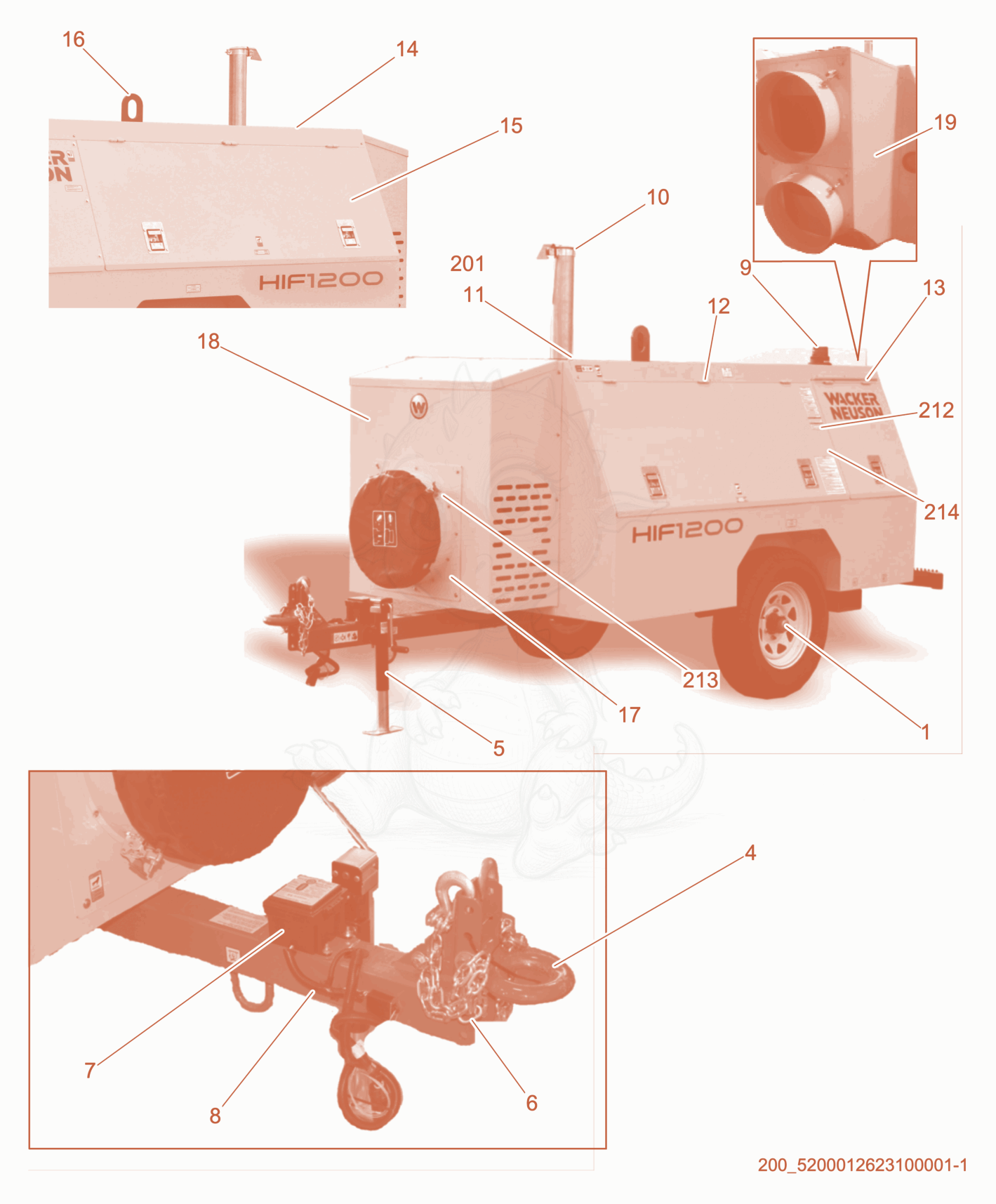

Exploded parts diagram of the Trailer/Enclosure cpl. of a Wacker Neuson HIF1200, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200013671Not stocked
    Axle cpl.×1
  • 45200013543Not stocked
    Pintle hitch×1
  • 55200013544Not stocked
    Swivel jack×1
  • 65200013545Not stocked
    Safety chain, clevis×2
  • 75200013550Not stocked
    Breakaway Kit×1
  • 85200013673Not stocked
    Wiring harness cpl., trailer×1
  • 95200013591Not stocked
    Strobe light, green×1
  • 105200013682Not stocked
    Rain cap×1
  • 115200013574Not stocked
    Grommet×1
  • 125200013620Not stocked
    Hinge pin×10
  • 135200013675Not stocked
    Handle-pull down×6
  • 145200018207Not stocked
    Hood×1
  • 155200018208Not stocked
    Door (right, yellow)×1
  • 165200018209Not stocked
    Lifting eye bracket×1
  • 175200018210Not stocked
    Ring and Plate×1
  • 185200025143Not stocked
    Inlet Box×1
  • 195200025181Not stocked
    Outlet box×1
  • 2015100031760Not stocked
    Inspection Lid×1
  • 2125200013676Not stocked
    Lifting cylinder, gas spring×1
  • 2135200023140Not stocked
    Toggle clamp×1
  • 2145100044405Not stocked
    Foam Kit×1
