HIF 690 Flameless Air Heater

HIF690 Fuse/Relay Diagram

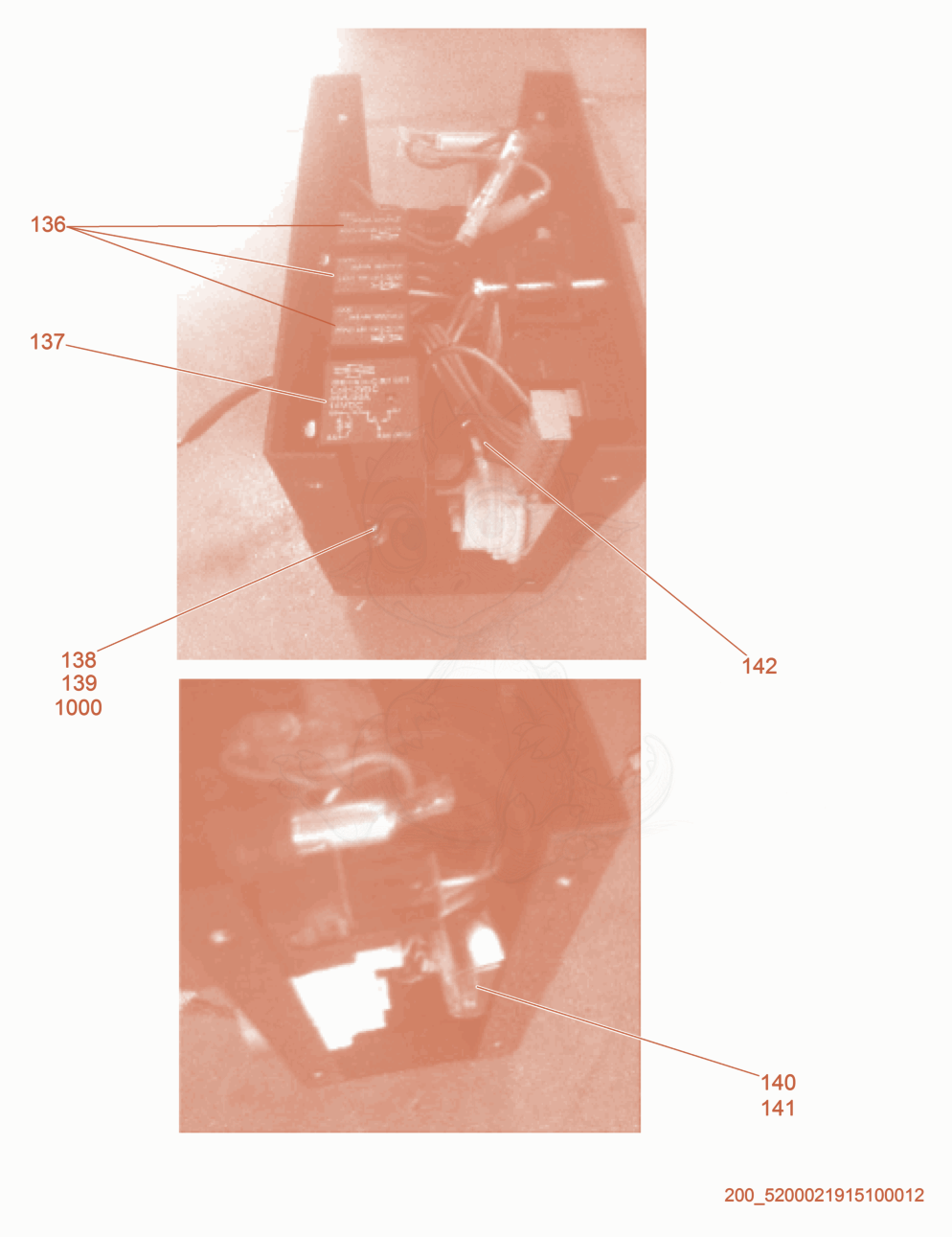

Exploded parts diagram of the Fuse/Relay of a Wacker Neuson HIF690, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1365200023385Not stocked
    Relay×3
  • 1375200023387Not stocked
    Relay-resistor×1
  • 1385200023364Not stocked
    Relay socket×1
  • 1395200023363Not stocked
    Terminal×1
  • 1405200023356Not stocked
    Fuse×1
  • 1405200023361Not stocked
    Fuse×1
  • 1405200023362Not stocked
    Fuse, mini×1
  • 1415200023384Not stocked
    Fuse holder×1
  • 1425200023404Not stocked
    Wiring harness-electronic control module×1
  • 10005200023352Not stocked
    Terminal×1
