Heater-HIF 690,Flameless

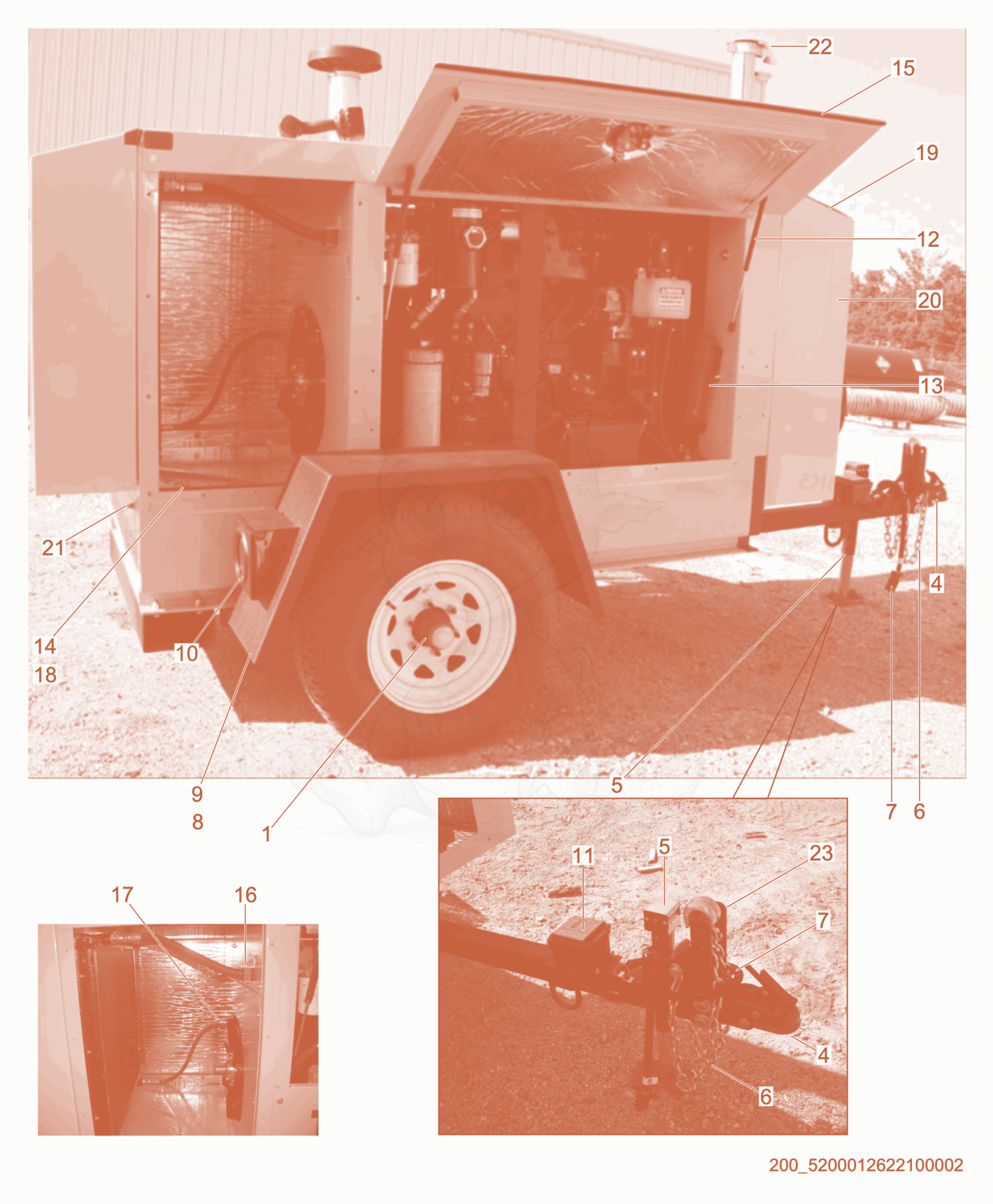

HIF690 Trailer cpl. Diagram

Exploded parts diagram of the Trailer cpl. of a Wacker Neuson HIF690, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 5200015792Not stocked
    Lifting device×1
  • 5200015794Not stocked
    Containment Skid×1
  • 5200017083Not stocked
    Seal×1
  • 15200013540Not stocked
    Axle cpl.×1
  • 45200013543Not stocked
    Pintle hitch×1
  • 55200013544Not stocked
    Swivel jack×1
  • 65200013545Not stocked
    Safety chain, clevis×2
  • 75200013546Not stocked
    Wiring harness cpl., trailer×1
  • 85200013547Not stocked
    Fender, LH×1
  • 95200013548Not stocked
    Fender, RH×1
  • 105200013549Not stocked
    Tail light, sealed×2
  • 115200013550Not stocked
    Breakaway Kit×1
  • 125200013575Not stocked
    Strut×4
  • 135200013573Not stocked
    Manual holder×1
  • 145200015790Not stocked
    Panel-heat plate exchanger, left×1
  • 155200015778Not stocked
    Door (right, yellow)×1
  • 165200015800Not stocked
    Vermatic clamps, hyd oil lines×1
  • 175200015799Not stocked
    Vermatic clamps, hyd oil lines×1
  • 185200015791Not stocked
    Panel, right×1
  • 195200015795Not stocked
    Louvre access panel, upper×1
  • 195200015804Not stocked
    Rain cap, intake×1
  • 205200015796Not stocked
    Louvre enclosure weldment×1
  • 215200015793Not stocked
    Drain plug×1
  • 225200015804Not stocked
    Rain cap, intake×1
