HP252

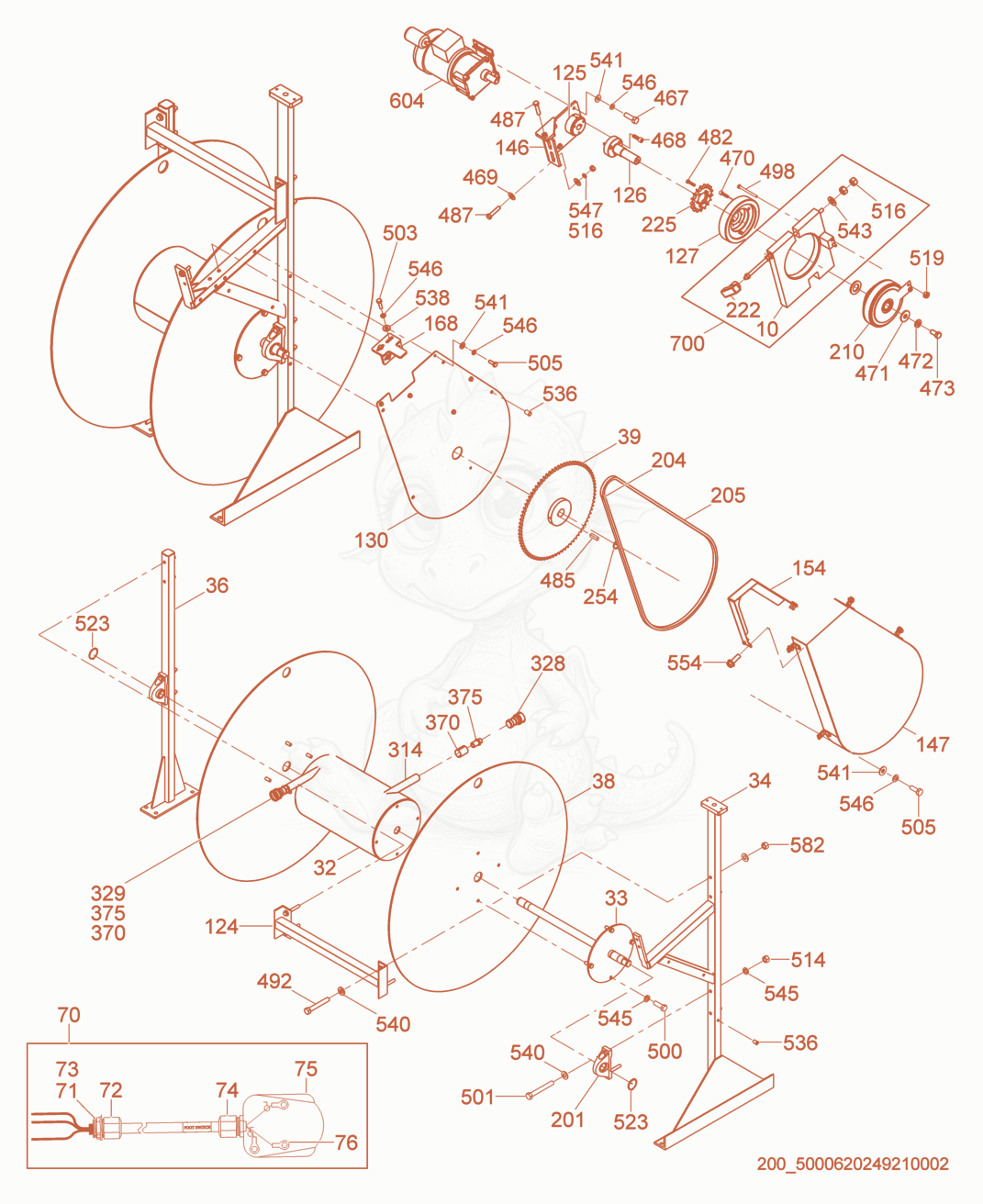

HP252 Reel cpl. Diagram

Exploded parts diagram of the Reel cpl. of a Wacker Neuson HP252, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105000166902Not stocked
    Brake×1
  • 325000169585Not stocked
    Hub×1
  • 335000169588Not stocked
    Shaft×1
  • 345000171318Not stocked
    Bracket×1
  • 365000171303Not stocked
    Bracket×1
  • 385000167148Not stocked
    Spool disc×2
  • 395000171401Not stocked
    Sprocket×1
  • 705000172069Not stocked
    Cable cpl.×1
  • 715000172592Not stocked
    Lock nut×1
  • 725000172083Not stocked
    Strain relief×1
  • 735000172589Not stocked
    Seal ring×1
  • 745000166458Not stocked
    Cord grip×1
  • 755000166496Not stocked
    Switch×1
  • 765000166506Not stocked
    Terminal×3
  • 1245200000737
    $156.64
    Bracket-Reel Brace, PH - 5200000737×1
  • 1255000171393Not stocked
    Adapter×1
  • 1265200000979
    $123.58
    Shaft-Motor Adapter, PH CE - 5200000979×1
  • 1275000171395Not stocked
    Adapter×1
  • 1305000171403Not stocked
    Plate×1
  • 1465000171397Not stocked
    Bracket×1
  • 1475000171402Not stocked
    Cover×1
  • 1545000171410Not stocked
    Cover×1
  • 1685000171409Not stocked
    Bracket×1
  • 2015000168103Not stocked
    Bearing×2
  • 2045000168076Not stocked
    Connecting link×1
  • 2055000168075Not stocked
    Chain×1
  • 2105000168104Not stocked
    Clutch×1
  • 2225000168100Not stocked
    Knob×1
  • 2255000171394Not stocked
    Pinion gear×1
  • 2545000168589Not stocked
    Retaining ring×1
  • 3145000169414Not stocked
    Hose×1
  • 3285000168213Not stocked
    Quick disconnect coupling×1
  • 3295000168214Not stocked
    Quick disconnect coupling×17
  • 3705000168272Not stocked
    Hose ferrule×32
  • 3755000168556Not stocked
    Hose barb×32
  • 4675000171398Not stocked
    Hexagonal head cap screw×4
  • 4685000171396Not stocked
    Socket head screw×3
  • 4695000167891Not stocked
    Washer-flat×4
  • 4705000171399Not stocked
    Socket head screw×3
  • 4715000010376
    $0.29
    WASHER A13 FLAT - 5000010376×1
  • 4725000173956Not stocked
    Lock washer×1
  • 4735000013002
    $0.37
    SCREW M12 X 25 HX.HD. - 5000013002×1
  • 4825000171391Not stocked
    Socket head screw×6
  • 4855000168613Not stocked
    Key×1
  • 4875000167718Not stocked
    Bolt×3
  • 4925000167780Not stocked
    Bolt×4
  • 4985000167877Not stocked
    Bolt×2
  • 5005000167699Not stocked
    Bolt×8
  • 5015000167781Not stocked
    Bolt×4
  • 5035000167721Not stocked
    Bolt×4
  • 5055000167704Not stocked
    Bolt×9
  • 5145000167689Not stocked
    Nut×4
  • 5165000167691Not stocked
    Nut×7
  • 5195000167767Not stocked
    Nut×2
  • 5235000168480Not stocked
    Retaining ring×4
  • 5365000167700Not stocked
    Threaded insert×7
  • 5365000167700Not stocked
    Threaded insert×3
  • 5385000167806Not stocked
    Fender washer×4
  • 5405000167728Not stocked
    Flat washer×12
  • 5415000167729Not stocked
    Flat washer×13
  • 5435000167730Not stocked
    Flat washer×2
  • 5455000167734Not stocked
    Lock washer×12
  • 5465000167733Not stocked
    Lock washer×22
  • 5475000167735Not stocked
    Lock washer×2
  • 5545000167793Not stocked
    Screw×4
  • 5825000167792Not stocked
    Nut×4
  • 6045000168755Not stocked
    Gear×1
  • 7005000165729Not stocked
    Hose reel brake cpl.×1
