HP252

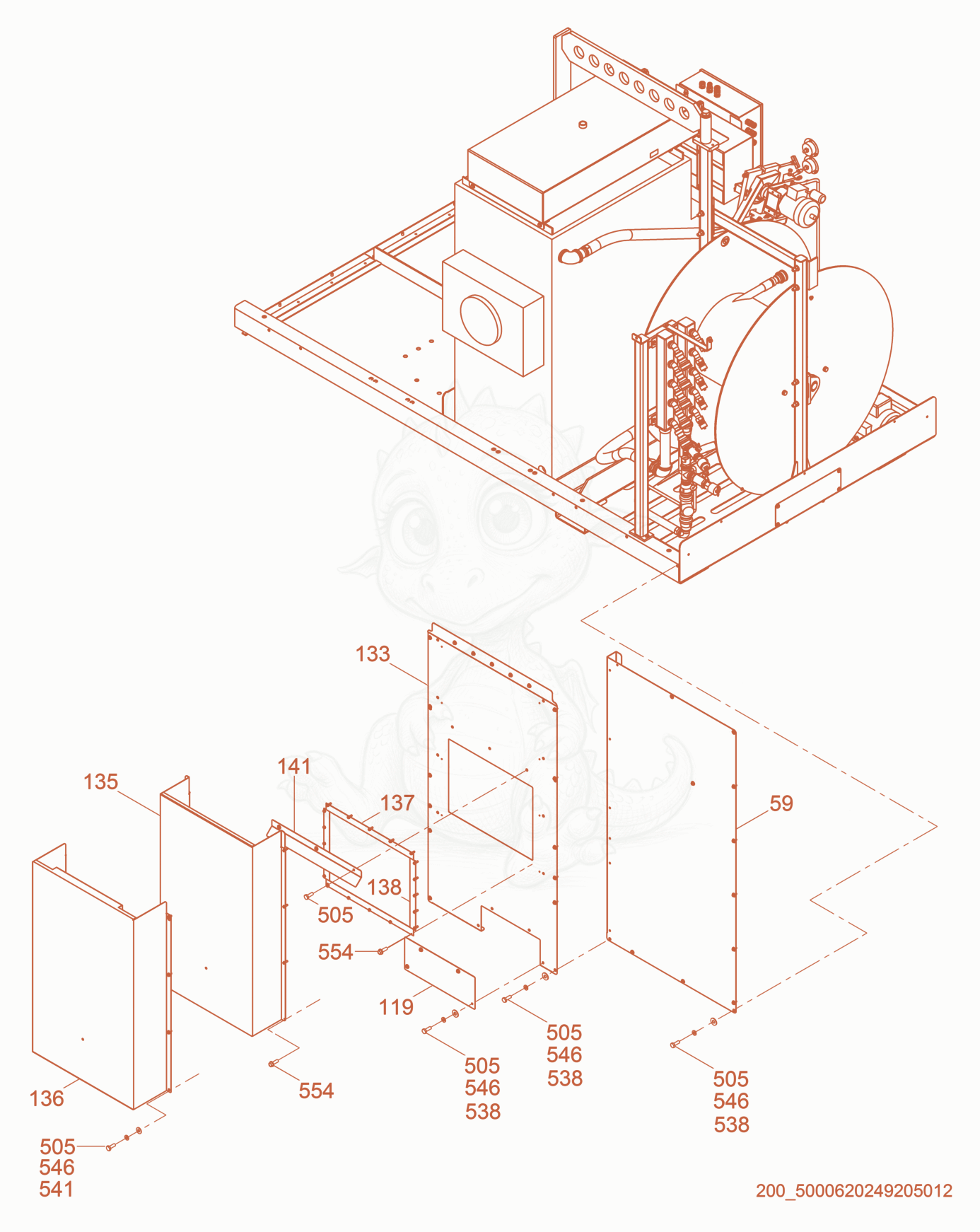

HP252 Curbside Enclosure Panels Diagram

Exploded parts diagram of the Curbside Enclosure Panels of a Wacker Neuson HP252, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 595000182911Not stocked
    Right front panel×1
  • 1195000171434Not stocked
    Access panel×1
  • 1335000171338Not stocked
    Support plate×1
  • 1355000167440Not stocked
    Stack guard×1
  • 1365000167441Not stocked
    Stack guard×1
  • 1375000167442Not stocked
    Strip×2
  • 1385000167443Not stocked
    Strip×2
  • 1415000167456Not stocked
    Deflector×1
  • 5055000167704Not stocked
    Bolt×41
  • 5385000167806Not stocked
    Fender washer×33
  • 5415000167729Not stocked
    Flat washer×8
  • 5465000167733Not stocked
    Lock washer×38
  • 5545000167793Not stocked
    Screw×28
