HP252

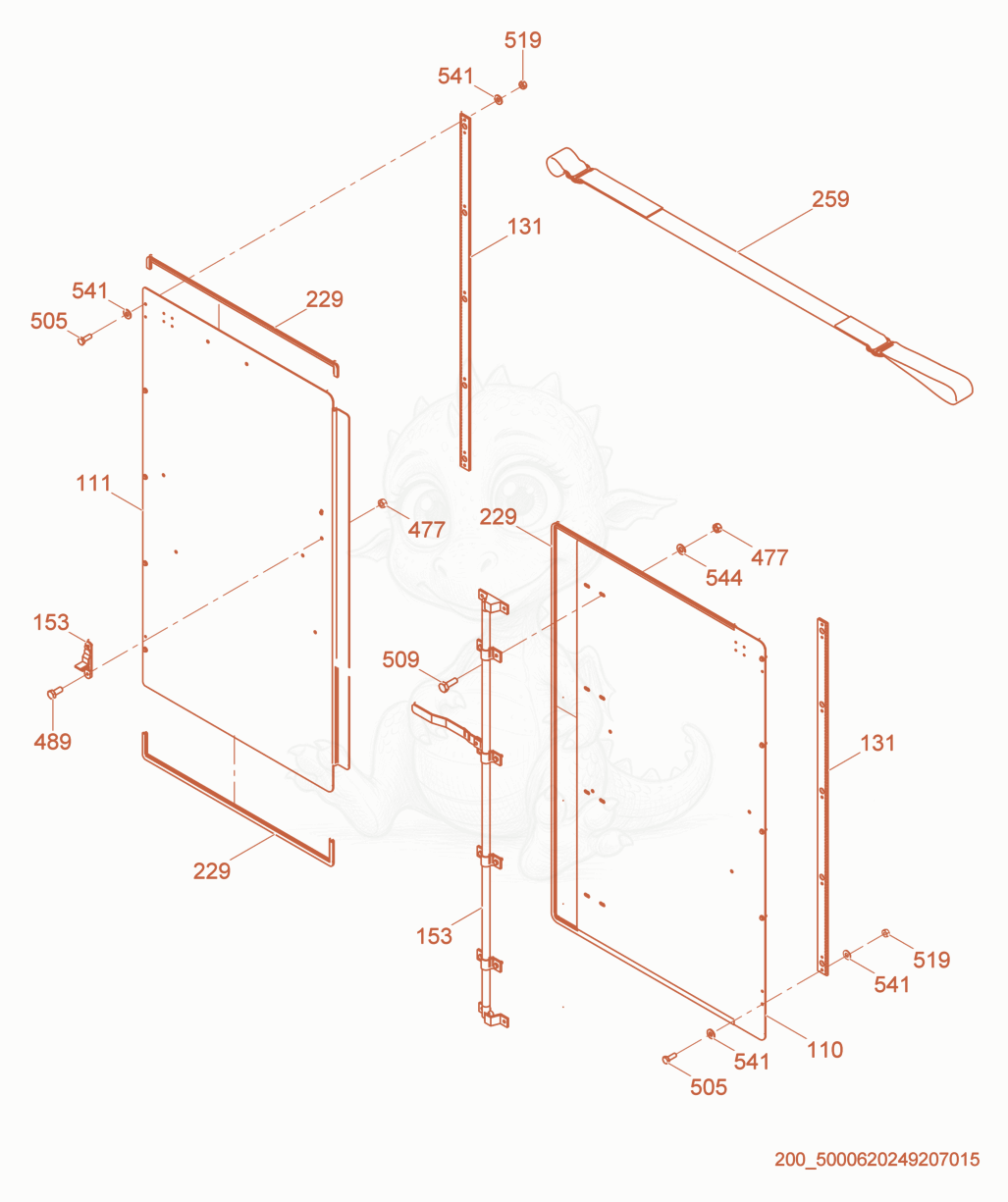

HP252 Rear Door Diagram

Exploded parts diagram of the Rear Door of a Wacker Neuson HP252, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1105000182668Not stocked
    Rear door×1
  • 1115000182671Not stocked
    Rear door×1
  • 1315000167433Not stocked
    Hinge×2
  • 1535000169762Not stocked
    Latch cpl.×1
  • 2295000168354Not stocked
    Trim×1
  • 2595200007277Not stocked
    Strap×3
  • 4775000167694Not stocked
    Nut×8
  • 4895000167749Not stocked
    Bolt×2
  • 5055000167704Not stocked
    Bolt×10
  • 5095000167708Not stocked
    Bolt×16
  • 5195000167767Not stocked
    Nut×10
  • 5415000167729Not stocked
    Flat washer×20
  • 5445000167731Not stocked
    Flat washer×16
