HP252

HP252 Rear Enclosure cpl. Diagram

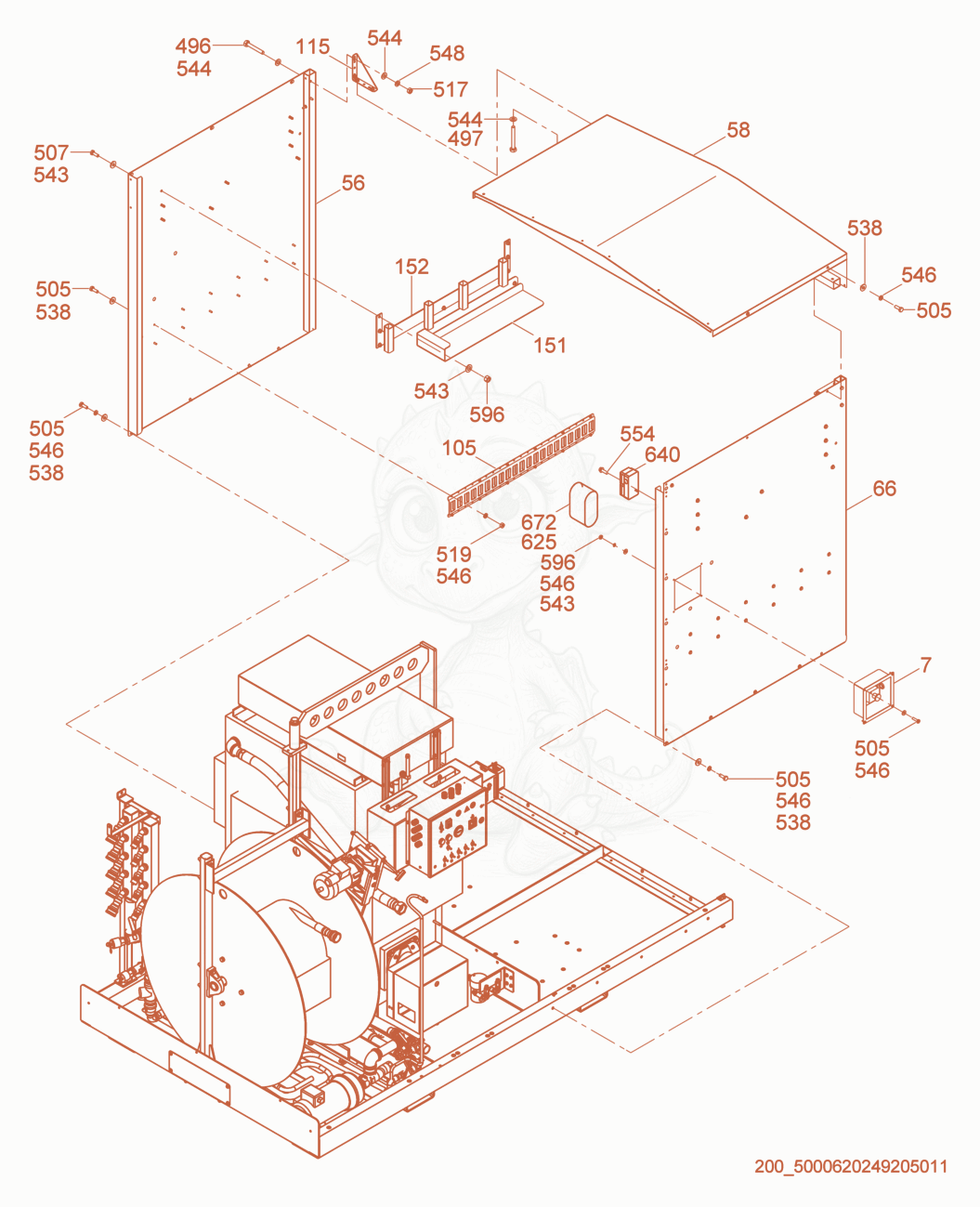

Exploded parts diagram of the Rear Enclosure cpl. of a Wacker Neuson HP252, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 75000181052Not stocked
    Bracket×1
  • 565000182920Not stocked
    Right rear panel×1
  • 585000182922Not stocked
    Rear upper cover×1
  • 665000182923Not stocked
    Rear left side panel×1
  • 1055000172027Not stocked
    Bracket×2
  • 1155000182957Not stocked
    Brace×2
  • 1515000169757Not stocked
    Mount×1
  • 1525000169758Not stocked
    Remote manifold mount×2
  • 4965000167863Not stocked
    Bolt×4
  • 4975000167864Not stocked
    Bolt×4
  • 5055000167704Not stocked
    Bolt×42
  • 5075000167705Not stocked
    Bolt×18
  • 5175000167692Not stocked
    Nut×8
  • 5195000167767Not stocked
    Nut×24
  • 5385000167806Not stocked
    Fender washer×37
  • 5435000167730Not stocked
    Flat washer×54
  • 5445000167731Not stocked
    Flat washer×16
  • 5465000167733Not stocked
    Lock washer×60
  • 5485000167736Not stocked
    Lock washer×8
  • 5545000167793Not stocked
    Screw×2
  • 5965000167778Not stocked
    Nut×18
  • 6255000166423Not stocked
    Splice×1
  • 6405000166788Not stocked
    Electrical box×1
  • 6725000166793Not stocked
    Light fixture×1
