HSH350 -GROUND HEATER,CE

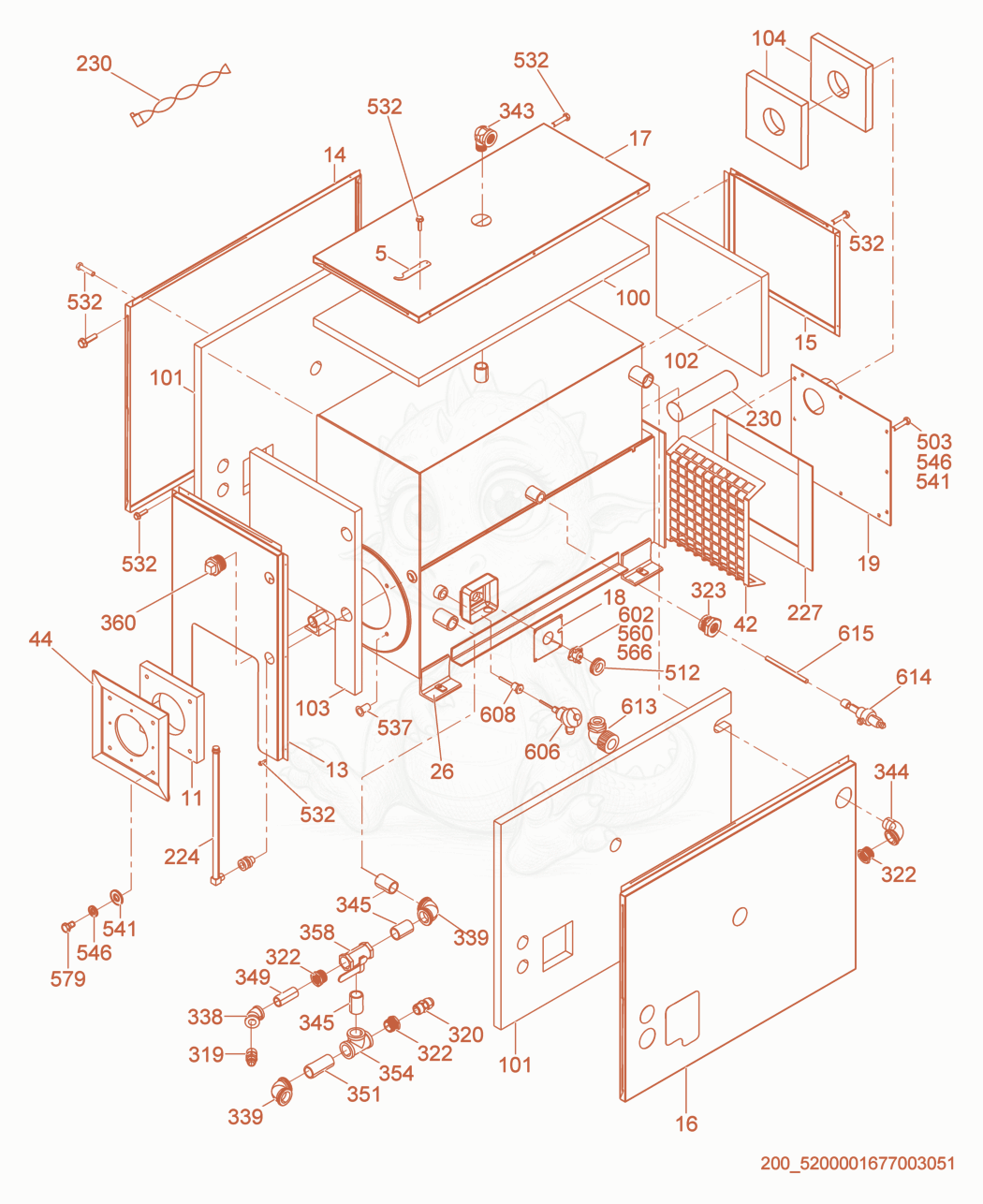

HSH350 Hydronic Heater cpl. Diagram
- 55000167114Not stockedBracket×1
- 115000167060Not stockedInsulator×1
- 135000167094Not stockedCover×1
- 145000167097Not stockedCover×1
- 155000167095Not stockedCover×1
- 165000167096Not stockedCover×1
- 175000167093Not stockedCover×1
- 195000169515Not stockedExhaust lid×1
- 265000169531Not stockedHydronic heater×1
- 425000177838Not stockedMount×1
- 445000173893Not stockedMounting plate×1
- 1005000167099Not stockedInsulation×1
- 1015000167098Not stockedInsulation×2
- 1025000167101Not stockedInsulation×1
- 1035000167100Not stockedInsulation×1
- 1045000167080Not stockedInsulation-heater×2
- 2245000168831Not stockedSight gauge×1
- 2275000178466Not stockedCeramic fiber strip×1
- 2305000168163Not stockedTurbulator×19
- 3195000168372Not stockedAdapter×1
- 3205000168393Not stockedAdapter×1
- 3225000168011Not stockedBushing×3
- 3235000168060Not stockedBushing×1
- 3385000168498Not stockedElbow×1
- 3395000168328Not stockedElbow×2
- 3435000168029Not stockedElbow×1
- 3445000168403Not stockedElbow fitting×1
- 3455000168331Not stockedNipple fitting×3
- 3495000168710Not stockedNipple fitting×1
- 3515000168712Not stockedNipple fitting×1
- 3545000168326Not stockedTee-fitting×1
- 3585000168474Not stockedValve×1
- 3605000168154Not stockedPlug×1
- 3635000168034Not stockedBushing×1
- 5035000167721Not stockedBolt×12
- 5125000168477Not stockedGrommet×1
- 5325000167883Not stockedScrew×22
- 5375000167822Not stockedThreaded insert×4
- 5415000167729Not stockedFlat washer×16
- 5465000167733Not stockedLock washer×16
- 5605000167838Not stockedWasher×2
- 5665000167835Not stockedScrew×2
- 5795000171298Not stockedBolt×4
- 6025000166613Not stockedLimit control×1
- 6025000167835Not stockedScrew×2
- 6025000167838Not stockedWasher×2
- 6065000166712Not stockedThermocouple×1
- 6085000166711Not stockedThermowell×1
- 6135000173918Not stockedStrain relief×1
- 6145000166812Not stockedProbe×1
- 6155000166811Not stockedElectrode×1
