HSH 380B-Natural Gas/Propane, w/o Generator

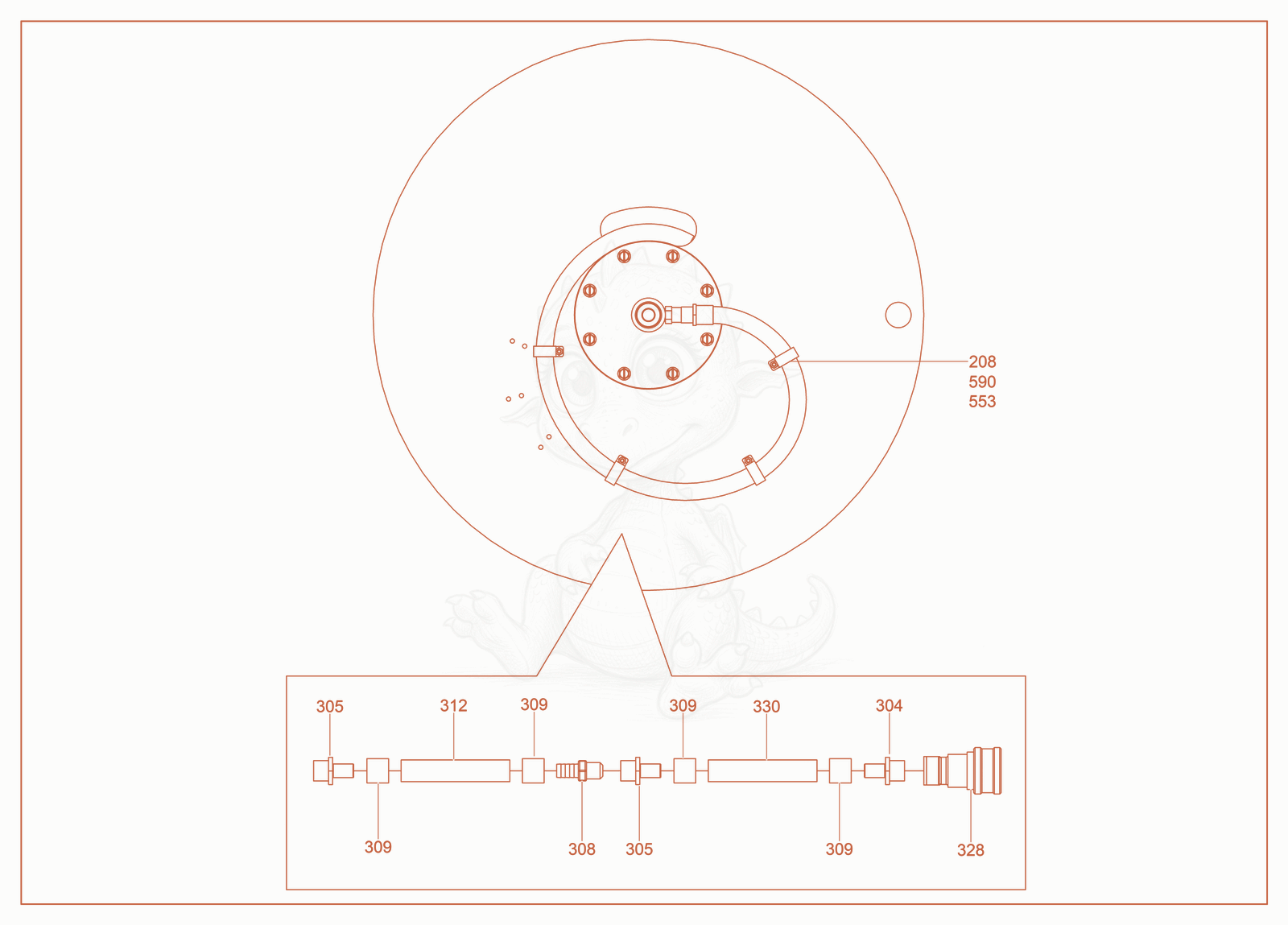

HSH380B Hose Reel cpl. (2) Diagram

Exploded parts diagram of the Hose Reel cpl. (2) of a Wacker Neuson HSH380B, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2085000168129Not stocked
    Clamp×4
  • 3045000168437Not stocked
    Barbed hose fitting×1
  • 3055000168369
    $9.85
    HOSE BARB, 5/8 X5/8 SWIVEL,BRS - 5000168369×2
  • 3085000168376
    $35.27
    HOSE END, 5/8 X 5/8 JIC,BRASS - 5000168376×1
  • 3095000168402Not stocked
    Holder-door×4
  • 3125000169435Not stocked
    Hose×1
  • 3285000168213Not stocked
    Quick disconnect coupling×1
  • 3305000169409Not stocked
    Hose×1
  • 5535200014947Not stocked
    Screw×4
  • 5905000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×4
