HTC15 Hamm Trench Roller

HTC15 Cooler Diagram

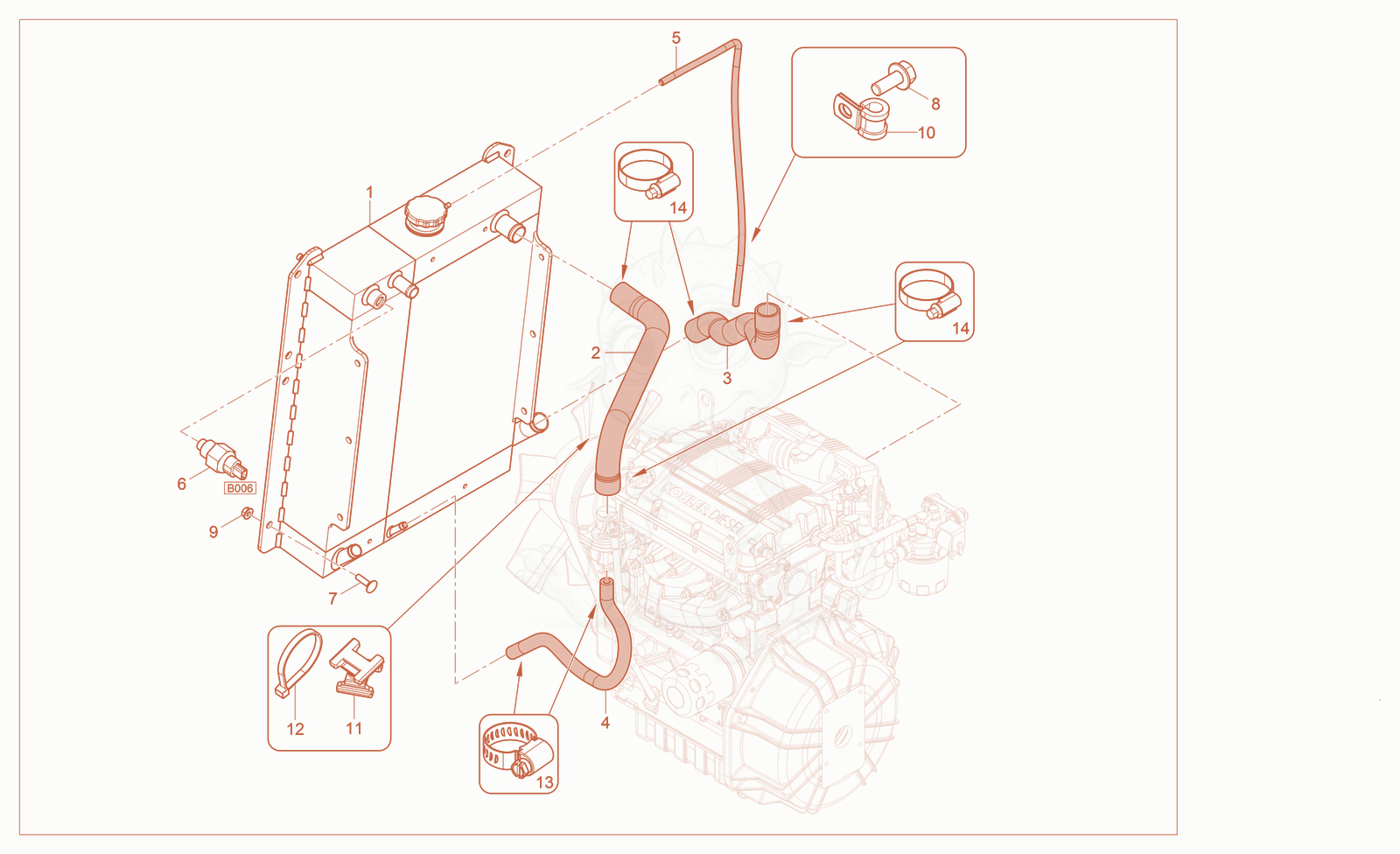

Exploded parts diagram of the Cooler of a Wacker Neuson HTC15, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100074212Not stocked
    COOLER ASSEMBLY×1
  • 25100079857Not stocked
    HOSE RADIATOR UPPER×1
  • 35100066641Not stocked
    HOSE RADIATOR LOWER×1
  • 45100071242Not stocked
    HOSE×1
  • 55100071195Not stocked
    HOSE×1
  • 61000339887
    $38.90
    SENSOR HYD OIL TEMP - 1000339887×1
  • 71000343318
    $0.41
    BOLT M10 X 30 CARRIAGE 8.8 ZINC - 1000343318×6
  • 85100077046Not stocked
    Screw×1
  • 91000343293
    $0.23
    NUT M10 FLANGED 10 ZINC - 1000343293×6
  • 101000385208
    $0.67
    P-CLIP 1/2" VINYL COAT - 1000385208×1
  • 111000380284Not stocked
    Mount×1
  • 125000111458
    $0.03
    WRAP-CABLE TIE 3.6X203MM,BLACK - 5000111458×2
  • 135000172307
    $0.81
    CLAMP-HOSE W/O SERATN 12-20 MM - 5000172307×2
  • 145000089701
    $1.42
    CLAMP 20-45 WORM DRIVE - 5000089701×3
