HX100 Heat Exchanger

HX100 Hoses Diagram

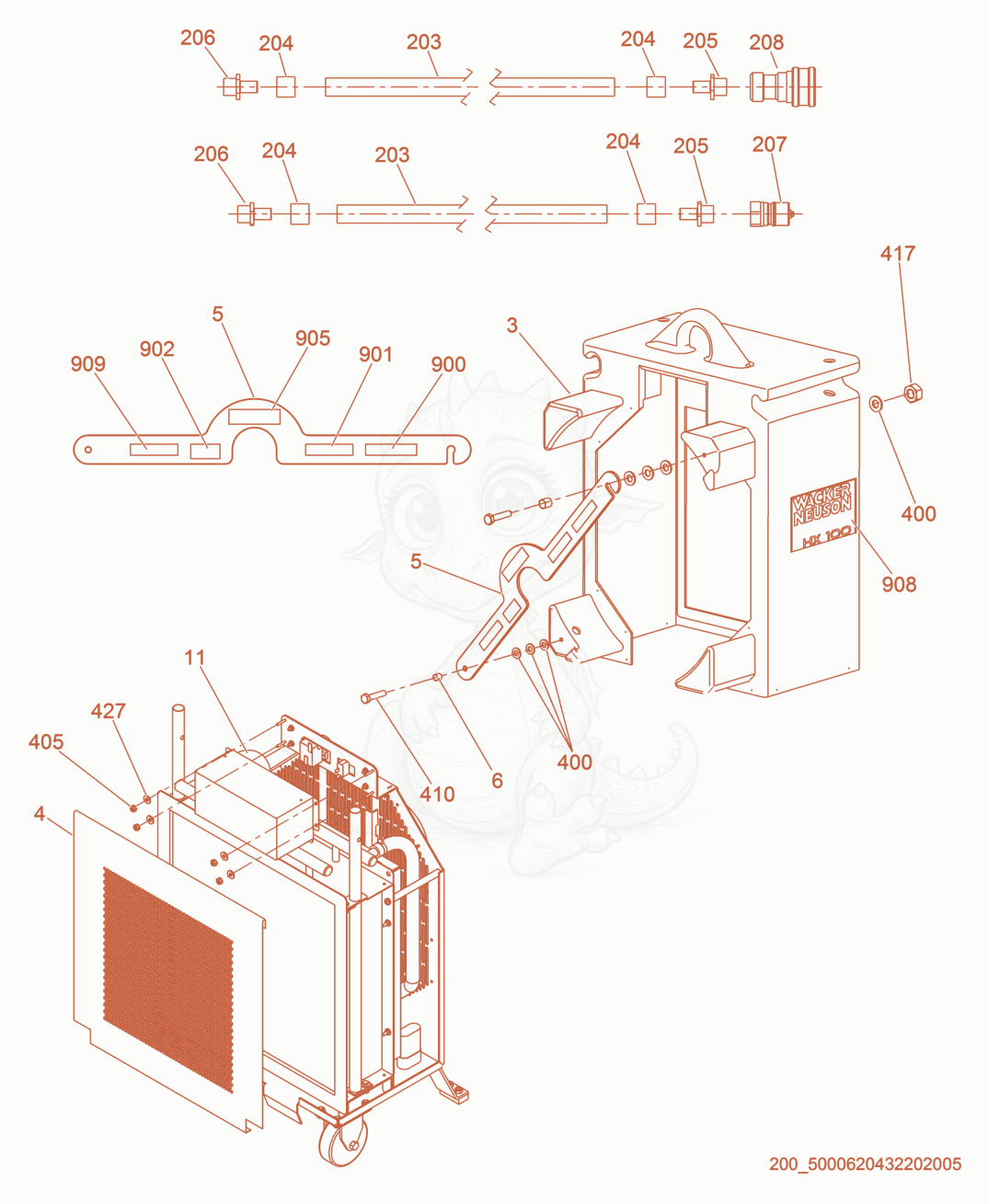

Exploded parts diagram of the Hoses of a Wacker Neuson HX100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35000183196Not stocked
    Housing×1
  • 45000167241Not stocked
    Core cover×1
  • 55000167287Not stocked
    Hose clamp bar×1
  • 65000167253Not stocked
    Bolt spacer×2
  • 115000183273Not stocked
    Control panel enclosure×1
  • 2035000169435Not stocked
    Hose×2
  • 2045000168042
    $4.42
    HOSE FERRULE, 0.975 ID, BRASS - 5000168042×4
  • 2055000168437Not stocked
    Barbed hose fitting×2
  • 2065000168369
    $9.85
    HOSE BARB, 5/8 X5/8 SWIVEL,BRS - 5000168369×2
  • 2075000168214Not stocked
    Quick disconnect coupling×1
  • 2085000168213Not stocked
    Quick disconnect coupling×1
  • 4005000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×8
  • 4055000177464Not stocked
    Hexagon nut×4
  • 4105000173899Not stocked
    Screw×2
  • 4175000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×2
  • 4275000167810Not stocked
    Flat washer×4
  • 9005000168059Not stocked
    Label-not for use outside×1
  • 9015000168087Not stocked
    Label-improper cleaning×1
  • 9025000168061Not stocked
    Label-fully unwrap hose×1
  • 9055000168057Not stocked
    Label-hot while in operation×1
  • 9085200003305Not stocked
    Label×2
  • 9095000168089Not stocked
    Label-extreme dust×1
