HX30 Heat Exhanger, 230 V

HX30 Frame/Components Diagram

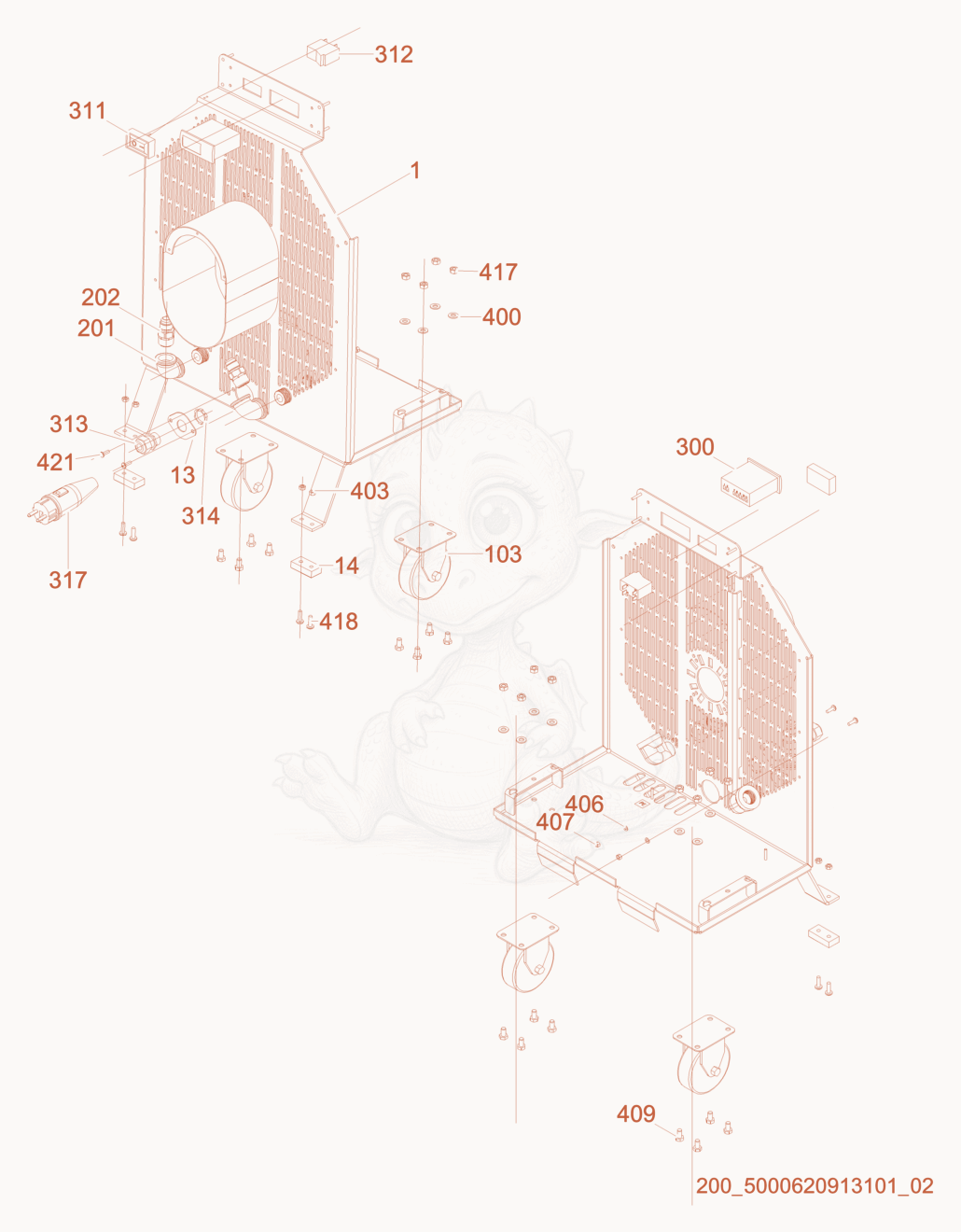

Exploded parts diagram of the Frame/Components of a Wacker Neuson HX30, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000183197Not stocked
    Base×1
  • 135000183539Not stocked
    Cap×1
  • 145000183645Not stocked
    Pad×2
  • 1035000168650Not stocked
    Caster×2
  • 2015000168027Not stocked
    Elbow×2
  • 2025000168372Not stocked
    Adapter×2
  • 3005000177772Not stocked
    Temperature control×1
  • 3115000172391Not stocked
    Cover×1
  • 3125000178679Not stocked
    Breaker×1
  • 3135000166458Not stocked
    Cord grip×1
  • 3145000166459Not stocked
    Lock nut×1
  • 3175000166792Not stocked
    Plug×1
  • 4005000010620
    $0.26
    WASHER B13 FLAT - 5000010620×14
  • 4035000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×6
  • 4065000179023Not stocked
    Washer×7
  • 4075000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×2
  • 4095000011457
    $1.49
    SCREW M8 X 25 HX.HD. - 5000011457×8
  • 4175000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×10
  • 4185000183425Not stocked
    Pan head screw×8
  • 4215000154516
    $0.09
    SCREW M5X16-4.8-H PAN HD ZP - 5000154516×2
