IEe58/34/3

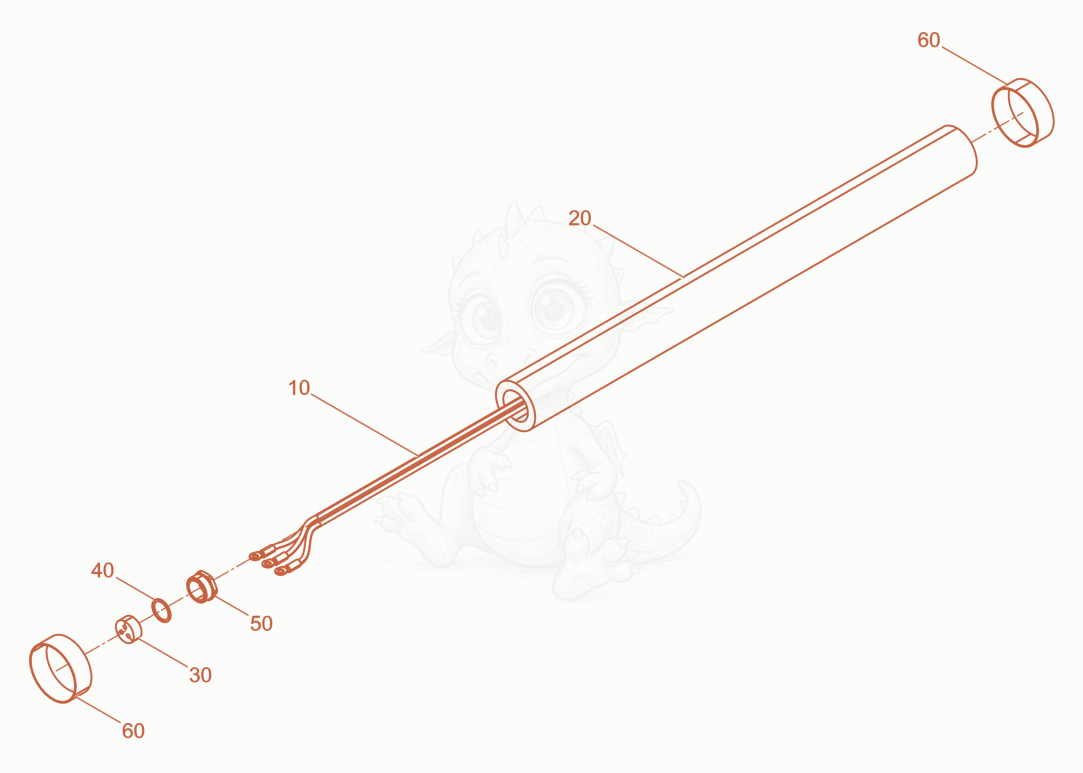

IEE58/34/3 Hose Connection cpl. Diagram

Exploded parts diagram of the Hose Connection cpl. of a Wacker Neuson IEE58/34/3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105100059000
    $103.02
    Supply line cpl. - 5100059000×1
  • 205100036291
    $379.61
    Protective hose - 5100036291×1
  • 305100024185
    $5.75
    Three-hole plug (M20x1.5) - 5100024185×1
  • 405000203578
    $0.32
    RING-THRUST - 5000203578×1
  • 505000203576
    $1.72
    SCREW-PRESSURE - 5000203576×1
  • 605002006823
    $5.13
    CLAMP 201/J206-45X5/8 ,BAND-IT - 5002006823×2
