IREN38/042/5GV

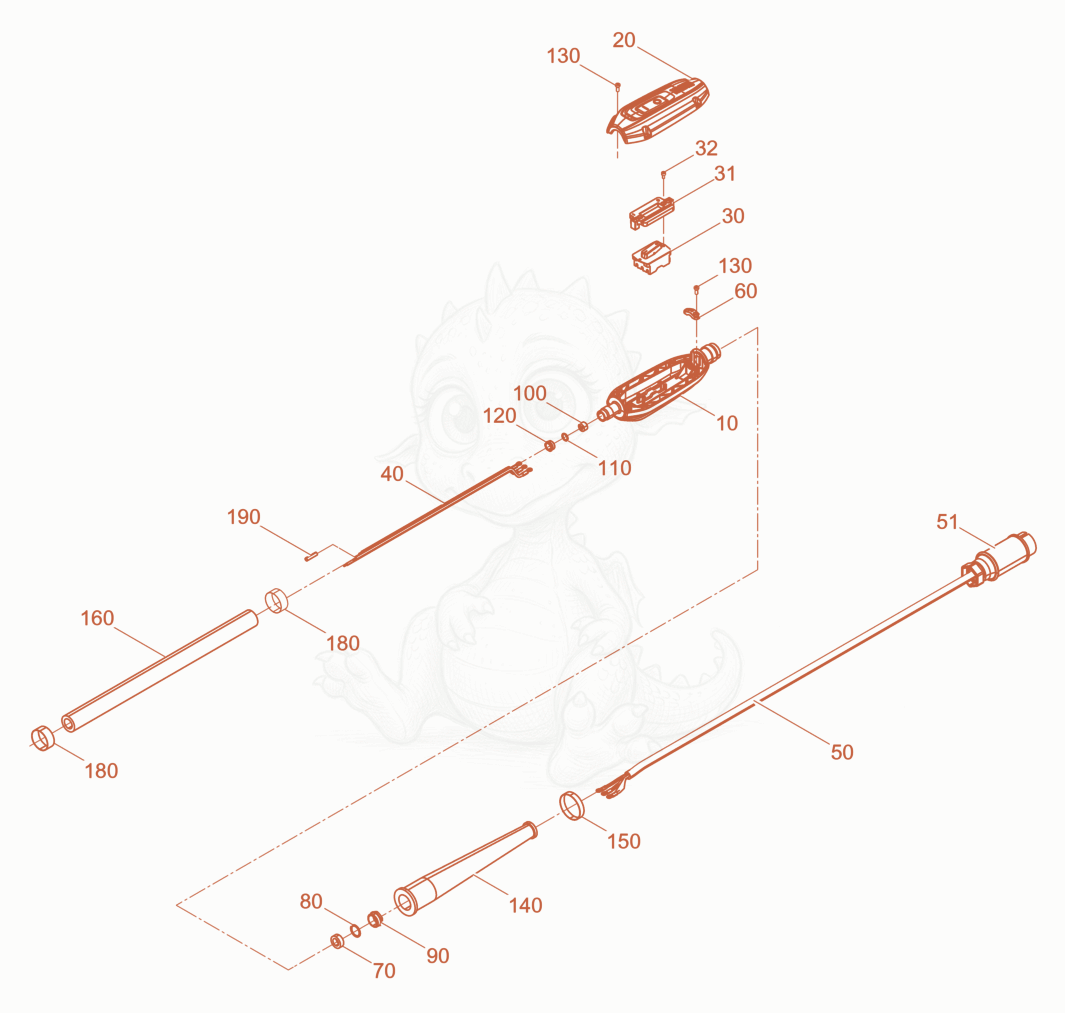

IREN38/042/5GV Hose Connection cpl. Diagram

Exploded parts diagram of the Hose Connection cpl. of a Wacker Neuson IREN38/042/5GV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105100059006
    $65.76
    Housing - 5100059006×1
  • 205100010827
    $34.11
    Cover - 5100010827×1
  • 305100058758
    $121.04
    Switch - 5100058758×1
  • 315100058957Not stocked
    Flange×1
  • 325000011573
    $0.22
    SCREW M4 X 8 SOC.HD. - 5000011573×2
  • 405100059005
    $170.83
    Supply line cpl. - 5100059005×1
  • 505100058992
    $334.33
    Power supply cable cpl. - 5100058992×1
  • 515000021201Not stocked
    CEE-plug×1
  • 605000106220
    $1.79
    Clamp - 5000106220×1
  • 705100051338
    $2.72
    Plug - 5100051338×1
  • 805000201168
    $0.84
    RING-THRUST - 5000201168×1
  • 905100051819
    $3.45
    Pressure screw - 5100051819×1
  • 1005100010607
    $4.73
    3 hole plug (M16x1,5) - 5100010607×1
  • 1105000203579
    $0.21
    RING-THRUST - 5000203579×1
  • 1205000203577
    $0.58
    SCREW-PRESSURE - 5000203577×1
  • 1305100058845
    $0.53
    Oval head screw 5x12 - 5100058845×6
  • 1405003008468
    $13.57
    SLEEVE-CABLE REINFORCEMENT - 5003008468×1
  • 1505002007121
    $3.14
    Clamp - 5002007121×1
  • 1605000201911
    $442.41
    TUBE-INSULATING - 5000201911×1
  • 1805000128141
    $5.39
    CLAMP - 5000128141×2
  • 1905000202516
    $1.35
    TERMINAL-SPLICE 24.5-2.5 - 5000202516×3
