Internal Vib. IREN 38/115

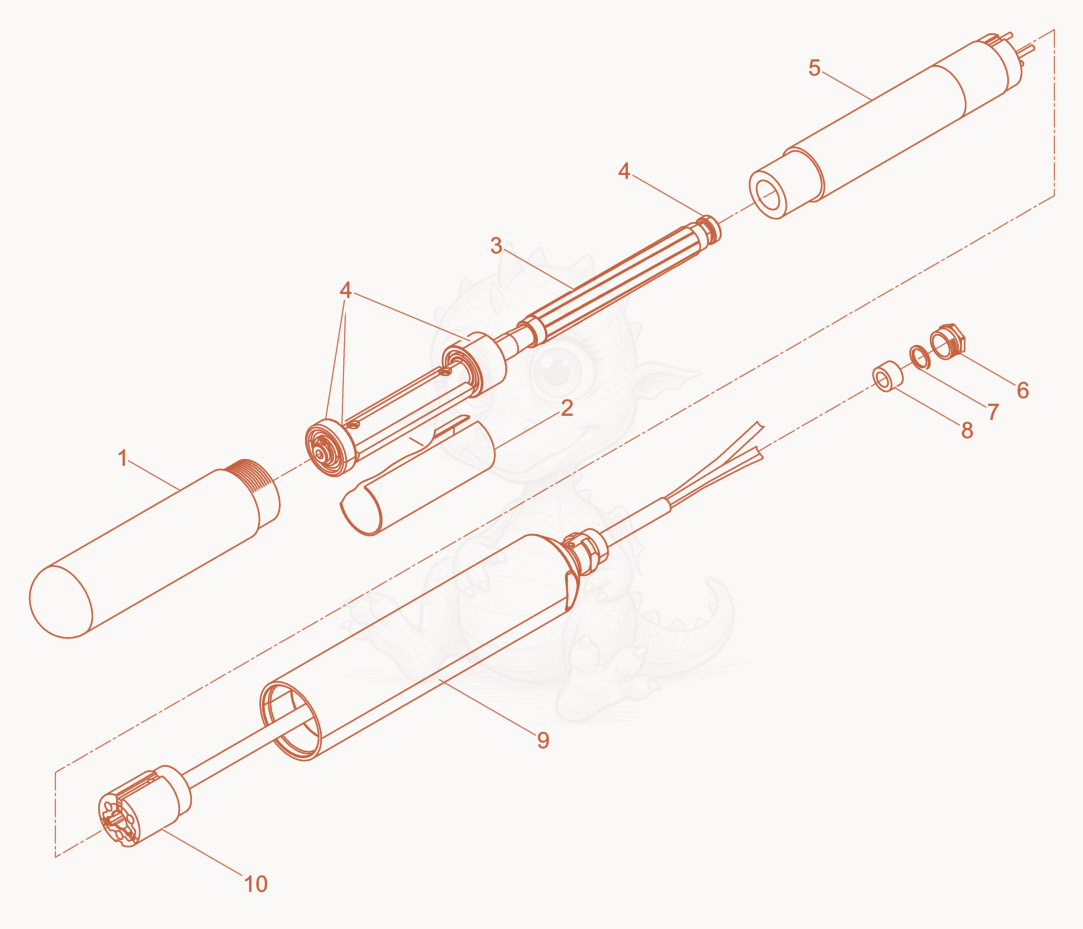

IREN38/115 Internal Vibrator Diagram

Exploded parts diagram of the Internal Vibrator of a Wacker Neuson IREN38/115, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000105713
    $451.23
    TUBE-LOWER x-5100006232 - 5000105713×1
  • 25000106055
    $37.97
    SLEEVE-DISTANCE - 5000106055×1
  • 35000108377
    $371.00
    ROTOR-COMPLETE - 5000108377×1
  • 45000202268
    $169.86
    BEARING SET - 5000202268×1
  • 55000108978Not stocked
    Stator×1
  • 65002003793
    $1.33
    CONNECTOR-BODY - 5002003793×1
  • 75002003795
    $0.26
    RING SEAL 10 X 13.5 X 0.8,PG9 - 5002003795×1
  • 85002003792
    $0.48
    SEAL-RING 9 X 13.5 X 5.5 - 5002003792×1
  • 95000218501
    $356.29
    Tube-Upper - 5000218501×1
  • 105000218808
    $100.94
    CONNECTOR-ELECTRIC - 5000218808×1
