Internal Vib. IREN 38/10m GV

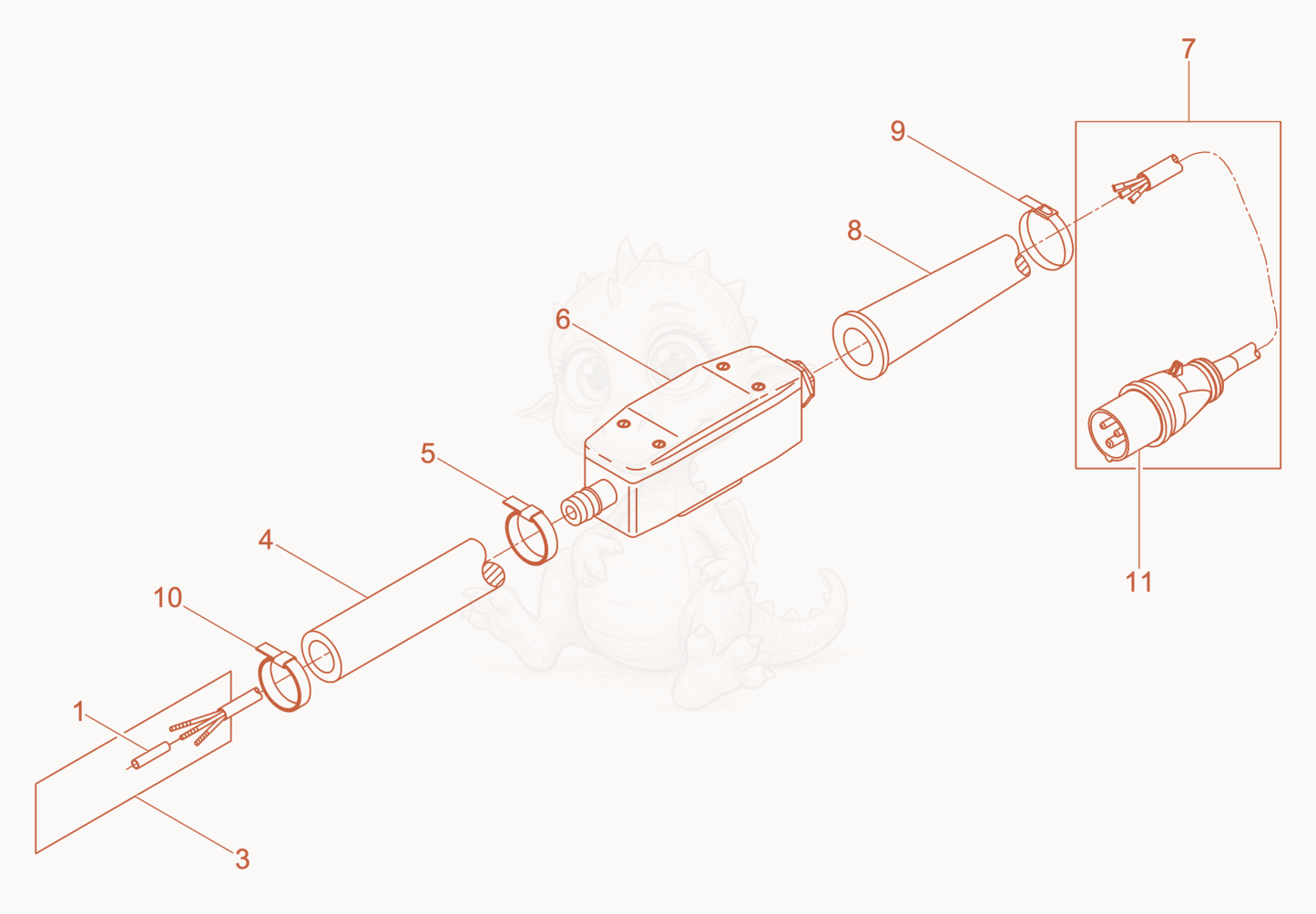

IREN3810MGV Hose Connection cpl. Diagram

Exploded parts diagram of the Hose Connection cpl. of a Wacker Neuson IREN3810MGV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000202515
    $0.92
    CONNECTOR-FLAT - 5000202515×3
  • 35000109369
    $122.34
    CABLE-SUPPLY - 5000109369×1
  • 45000201914
    $1,016.82
    TUBE-INSULATING - 5000201914×1
  • 55002007010
    $3.41
    CLAMP 201/J204-32X1/2 ,BAND-IT - 5002007010×1
  • 65000124352
    $333.63
    SWITCH BOX COMPL. - 5000124352×1
  • 75000063198
    $392.12
    CABLE-POWER SUPPLY W/PLUG - 5000063198×1
  • 85003008468
    $13.57
    SLEEVE-CABLE REINFORCEMENT - 5003008468×1
  • 95002007121
    $3.14
    Clamp - 5002007121×1
  • 105000128141
    $5.39
    CLAMP - 5000128141×1
  • 115000021201Not stocked
    CEE-plug×1
