Internal Vib. IREN 45/048/240

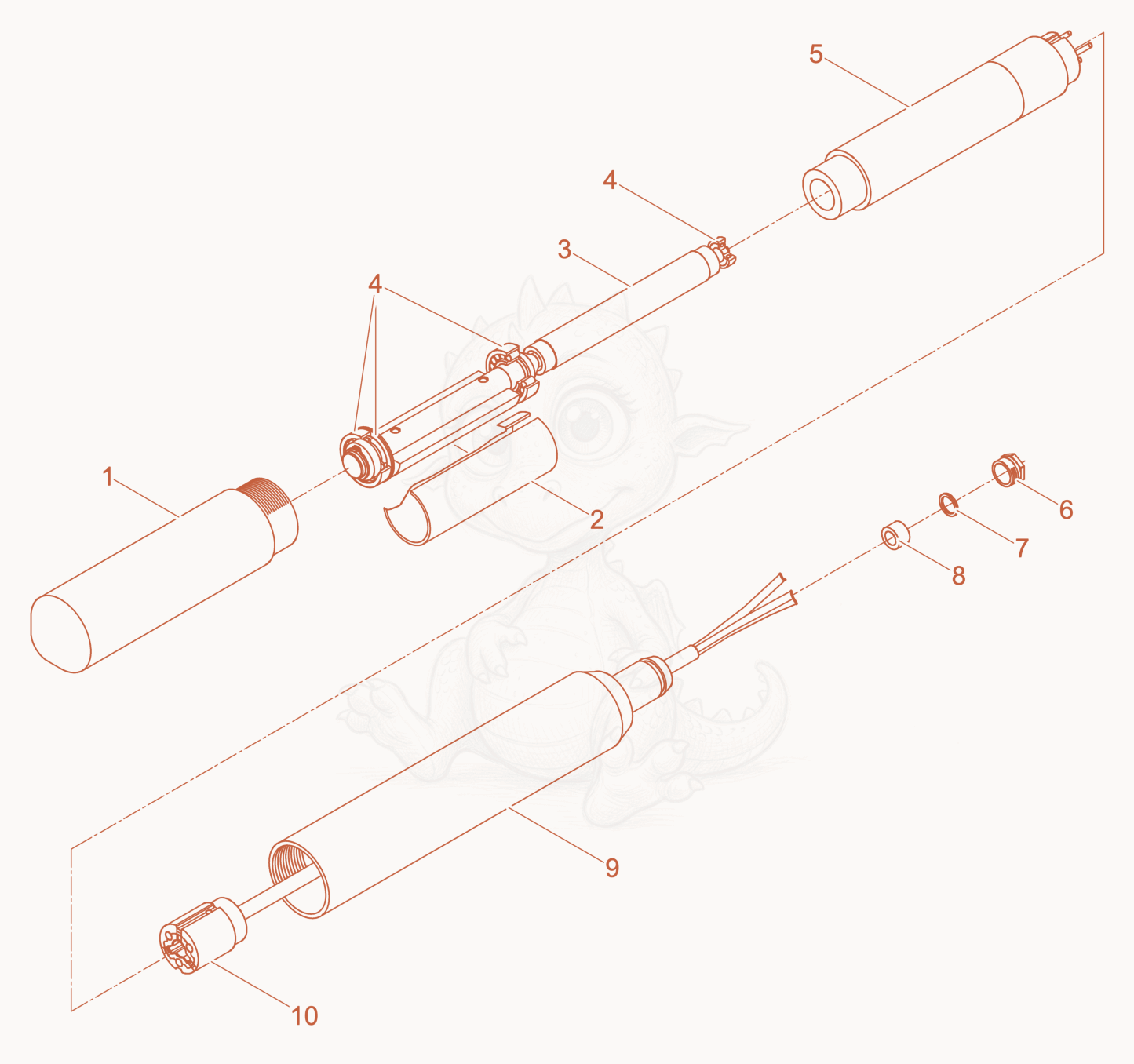

IREN45/048/240 Internal Vibrator cpl. Diagram

Exploded parts diagram of the Internal Vibrator cpl. of a Wacker Neuson IREN45/048/240, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000105719
    $442.39
    TUBE-LOWER - 5000105719×1
  • 25000106438
    $38.10
    SLEEVE-DISTANCE - 5000106438×1
  • 35000109558Not stocked
    Motor armature×1
  • 45000202269
    $282.15
    BEARING SET - 5000202269×1
  • 55000106460
    $683.96
    Stator X-5000219462 - 5000106460×1
  • 65002003793
    $1.33
    CONNECTOR-BODY - 5002003793×1
  • 75002003795
    $0.26
    RING SEAL 10 X 13.5 X 0.8,PG9 - 5002003795×1
  • 85002003792
    $0.48
    SEAL-RING 9 X 13.5 X 5.5 - 5002003792×1
  • 95000105716
    $359.88
    TUBE-UPPER - 5000105716×1
  • 105000218808
    $100.94
    CONNECTOR-ELECTRIC - 5000218808×1
