Internal Vib. IREN 45/10m GV

IREN4510MGV Hose Connection cpl. Diagram

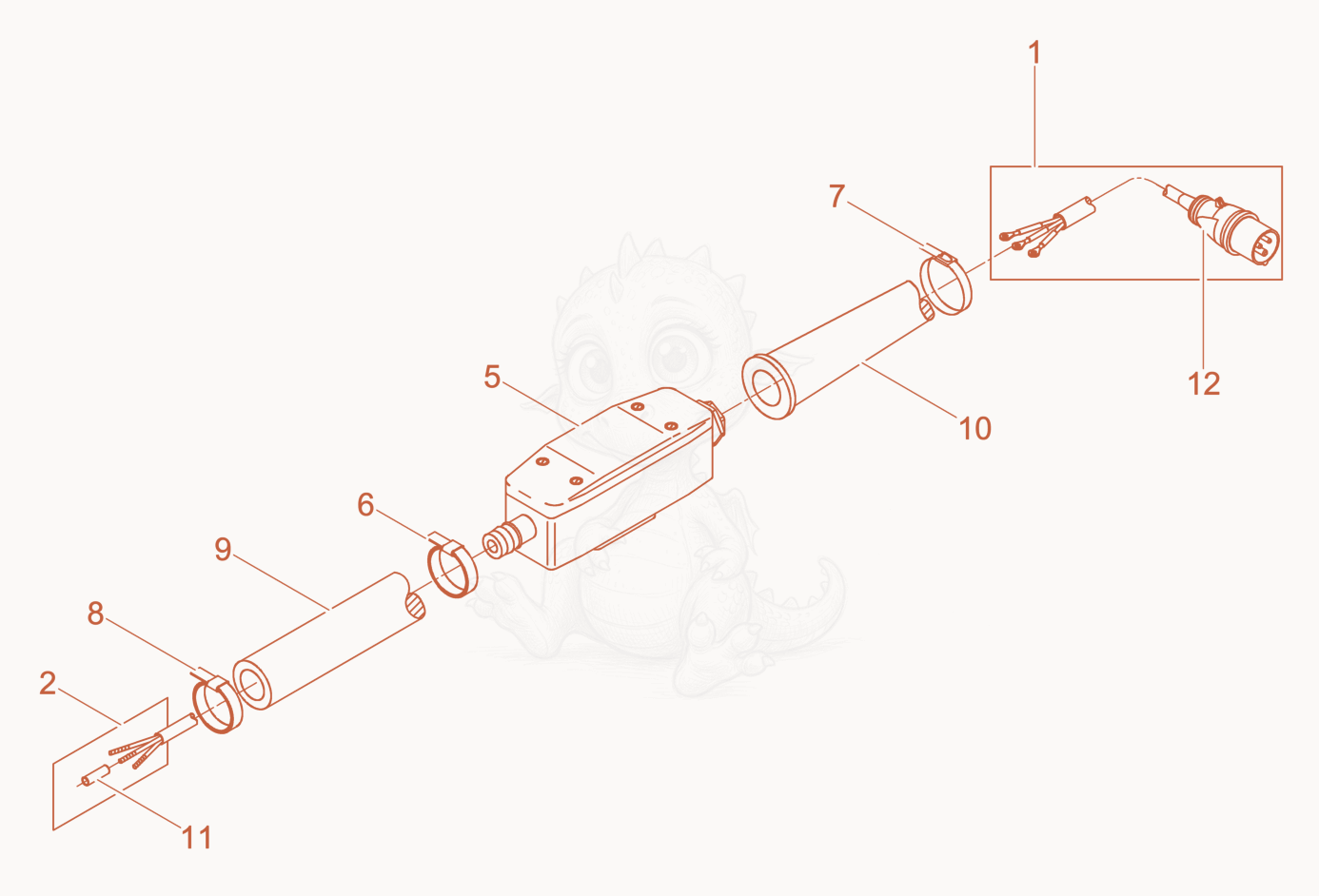

Exploded parts diagram of the Hose Connection cpl. of a Wacker Neuson IREN4510MGV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000063192
    $374.20
    CABLE-POWER SUPPLY W/PLUG - 5000063192×1
  • 25000127440Not stocked
    Supply line×1
  • 55000124352
    $333.63
    SWITCH BOX COMPL. - 5000124352×1
  • 65002007010
    $3.41
    CLAMP 201/J204-32X1/2 ,BAND-IT - 5002007010×1
  • 75002007121
    $3.14
    Clamp - 5002007121×1
  • 85000128141
    $5.39
    CLAMP - 5000128141×1
  • 95000201914
    $1,016.82
    TUBE-INSULATING - 5000201914×1
  • 105003008468
    $13.57
    SLEEVE-CABLE REINFORCEMENT - 5003008468×1
  • 115000202516
    $1.35
    TERMINAL-SPLICE 24.5-2.5 - 5000202516×3
  • 125000021201Not stocked
    CEE-plug×1
