IREN57,240V/180HZ-VIBRATOR

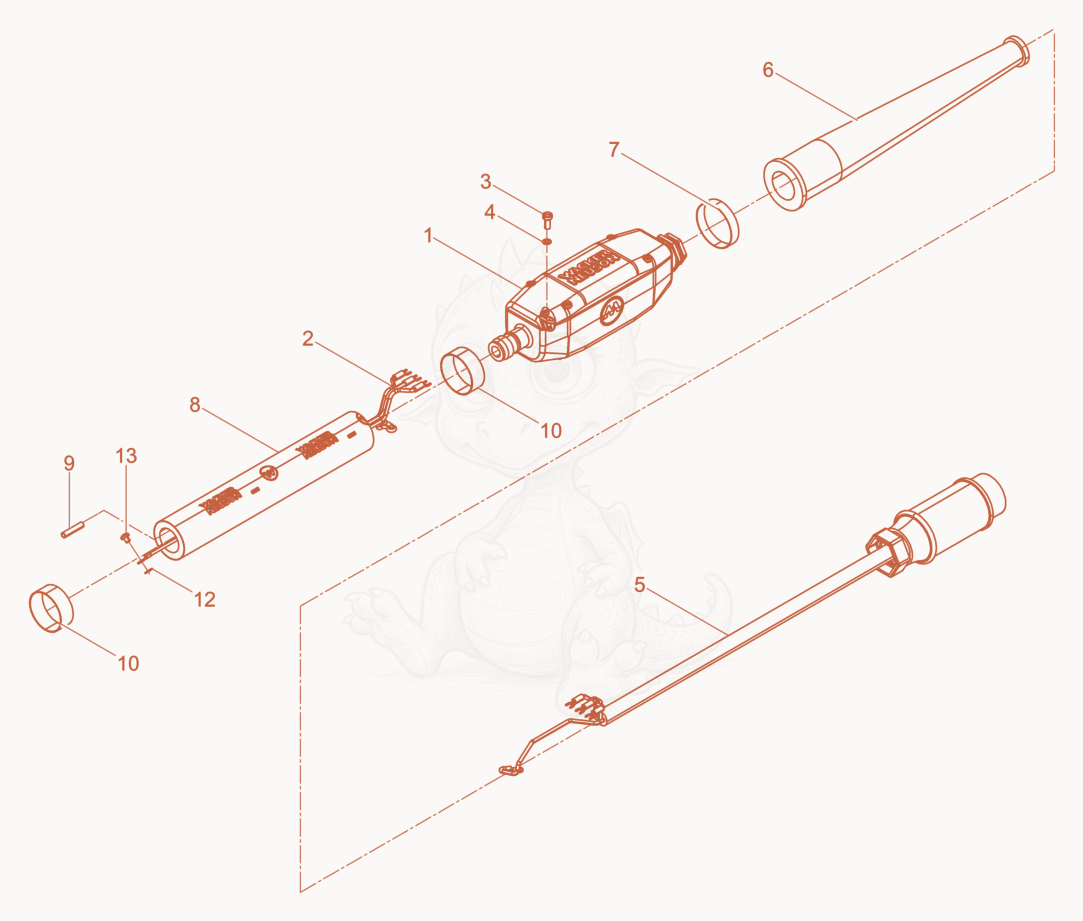

IREN57/240/180 Hose connection Diagram

Exploded parts diagram of the Hose connection of a Wacker Neuson IREN57/240/180, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000124354
    $336.89
    BOX-COMPLETE - 5000124354×1
  • 25000218885Not stocked
    Supply line×1
  • 35000012643
    $0.22
    WASHER B5.3 MS,FLAT - 5000012643×1
  • 45000013175
    $0.59
    SCREW M5 X 12 SOC.HD.CAP - 5000013175×1
  • 55000095353
    $495.02
    CABLE-POWER W/PLUG - 5000095353×1
  • 65003008468
    $13.57
    SLEEVE-CABLE REINFORCEMENT - 5003008468×1
  • 75002007121
    $3.14
    Clamp - 5002007121×1
  • 85000129446
    $472.81
    HOSE 25 X 7.5 X 5000MM S175KB - 5000129446×1
  • 95000202515
    $0.92
    CONNECTOR-FLAT - 5000202515×1
  • 105002006823
    $5.13
    CLAMP 201/J206-45X5/8 ,BAND-IT - 5002006823×2
  • 125000200988
    $0.40
    WASHER-LOCK,TOOTHED - 5000200988×1
  • 135000218500
    $0.13
    Screw-Pan Head - 5000218500×1
