Internal Vibrator IREN 57

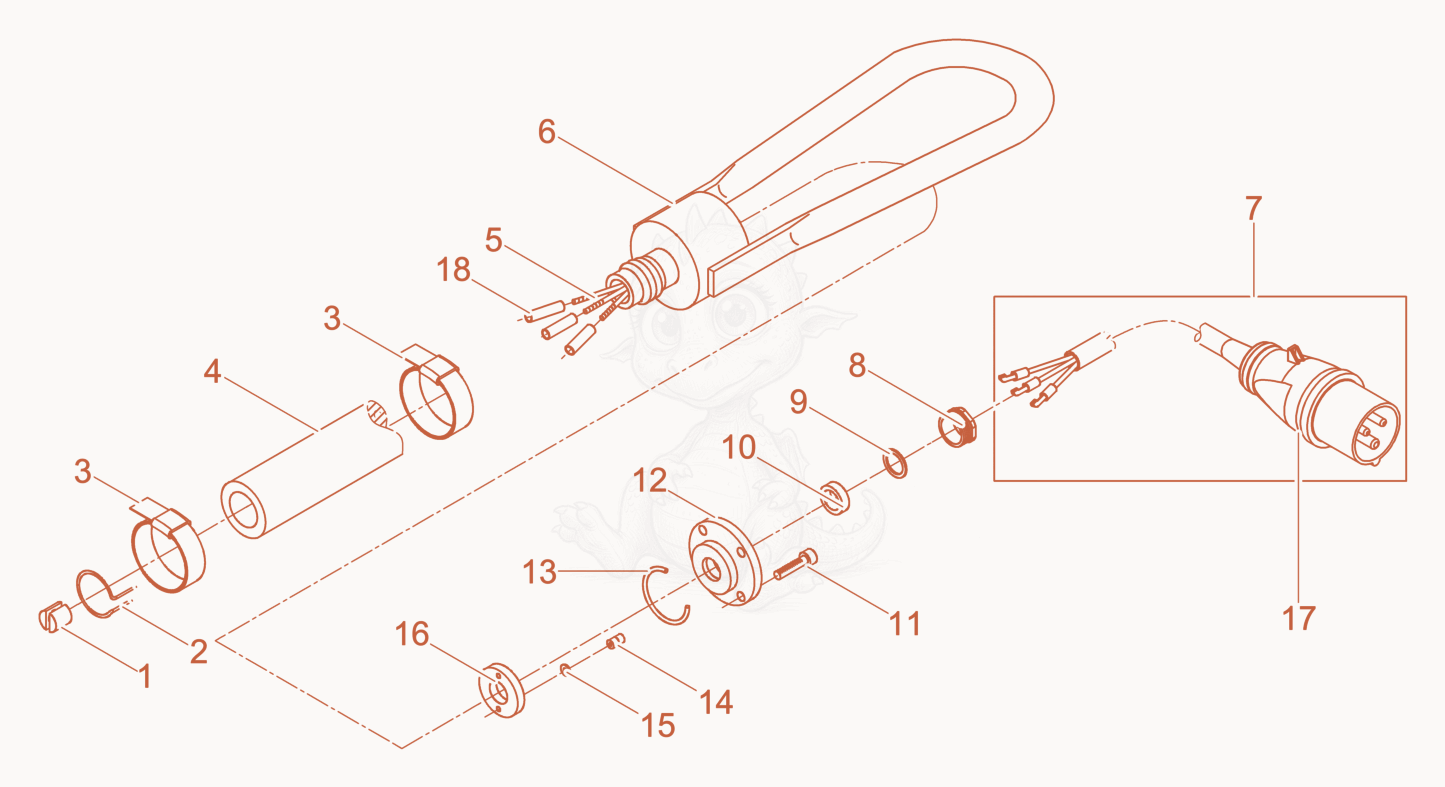

IREN57 Hose Connection cpl. Diagram

Exploded parts diagram of the Hose Connection cpl. of a Wacker Neuson IREN57, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000108320Not stocked
    Fixing×1
  • 25000125233Not stocked
    Steel wire rope×1
  • 35002006823
    $5.13
    CLAMP 201/J206-45X5/8 ,BAND-IT - 5002006823×2
  • 45000129446
    $472.81
    HOSE 25 X 7.5 X 5000MM S175KB - 5000129446×1
  • 55000108316Not stocked
    Supply line×3
  • 65000108324Not stocked
    Crane lifting eye×1
  • 75000108317Not stocked
    Power supply cable with plug×1
  • 85003008191
    $2.96
    CONNECTOR-BODY PG21 - 5003008191×1
  • 95002000058
    $0.22
    RING SEAL 16 X 20.5 X 0.8,PG16 - 5002000058×1
  • 105002006450
    $0.57
    Gasket - 5002006450×1
  • 115000011550
    $0.09
    SCREW M6 X 25 SOC.HD. - 5000011550×4
  • 125000108319Not stocked
    Cover×1
  • 135000024243
    $0.73
    O-RING 35.2 X 3 - 5000024243×1
  • 145002004403Not stocked
    Multiple connection×4
  • 155000010632
    $0.03
    WASHER B3.2 FLAT - 5000010632×2
  • 165000108321Not stocked
    Washer×1
  • 175000021201Not stocked
    CEE-plug×1
  • 185000203408
    $0.99
    CONNECTOR-FLAT 26,0-4 - 5000203408×3
