Internal Vib. IREN 57/10mGV

IREN5710MGV Hose connection cpl. Diagram

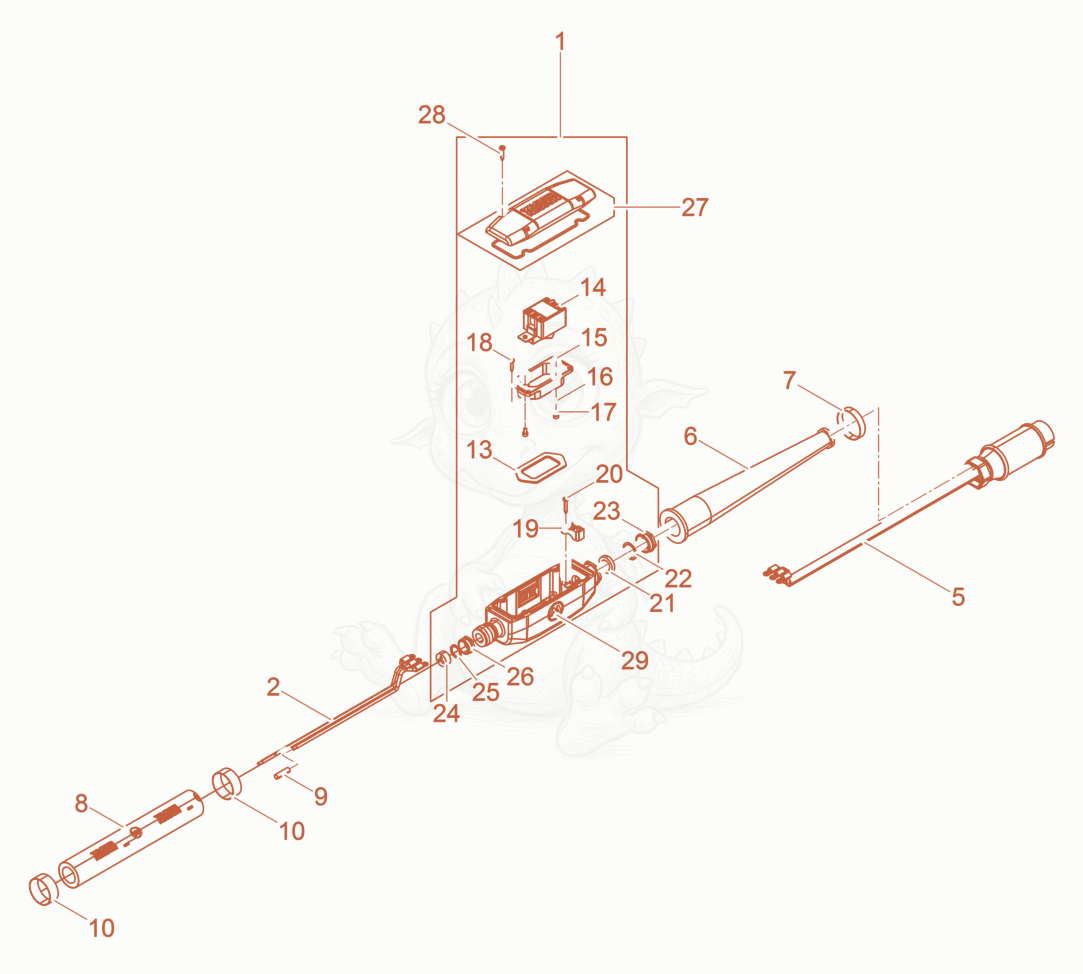

Exploded parts diagram of the Hose connection cpl. of a Wacker Neuson IREN5710MGV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100000100Not stocked
    Switch box cpl.×1
  • 25000109372
    $250.39
    CABLE-SUPPLY - 5000109372×1
  • 55000063194
    $504.42
    CABLE-POWER SUPPLY W/PLUG - 5000063194×1
  • 65003008468
    $13.57
    SLEEVE-CABLE REINFORCEMENT - 5003008468×1
  • 75002007121
    $3.14
    Clamp - 5002007121×1
  • 85000218251
    $871.55
    HOSE-PROTECTIVE - 5000218251×1
  • 95000203408
    $0.99
    CONNECTOR-FLAT 26,0-4 - 5000203408×3
  • 105002006823
    $5.13
    CLAMP 201/J206-45X5/8 ,BAND-IT - 5002006823×2
  • 135003010141
    $7.93
    Diaphragm - 5003010141×1
  • 145002006994
    $71.35
    SWITCH 25A/380V/3P,ROCKER TYPE - 5002006994×1
  • 155000067758
    $16.71
    Flange - 5000067758×1
  • 165000010628
    $0.02
    WASHER A4.3 FLAT - 5000010628×2
  • 175100000130Not stocked
    Cheese head screw×2
  • 185100001329
    $0.22
    Oval head screw - 5100001329×4
  • 195000206365
    $1.24
    Clamp - 5000206365×1
  • 205100001330
    $0.79
    Oval head screw - 5100001330×2
  • 215002000041Not stocked
    Gasket×1
  • 225002003772
    $1.10
    SEAL-RING 17 X 26 X 0.8,PG21 - 5002003772×1
  • 235003008328
    $5.71
    CONNECTOR-BODY PG21 - 5003008328×1
  • 245100002126
    $2.48
    3 hole plug - 5100002126×1
  • 255002000058
    $0.22
    RING SEAL 16 X 20.5 X 0.8,PG16 - 5002000058×1
  • 265003008191
    $2.96
    CONNECTOR-BODY PG21 - 5003008191×1
  • 275000124357Not stocked
    Switch box cover cpl.×1
  • 285100001546
    $0.22
    Oval head screw - 5100001546×4
  • 295000222083
    $6.74
    LABEL-SYMBOL - 5000222083×1
