Internal Vib. IREN 65/048/240

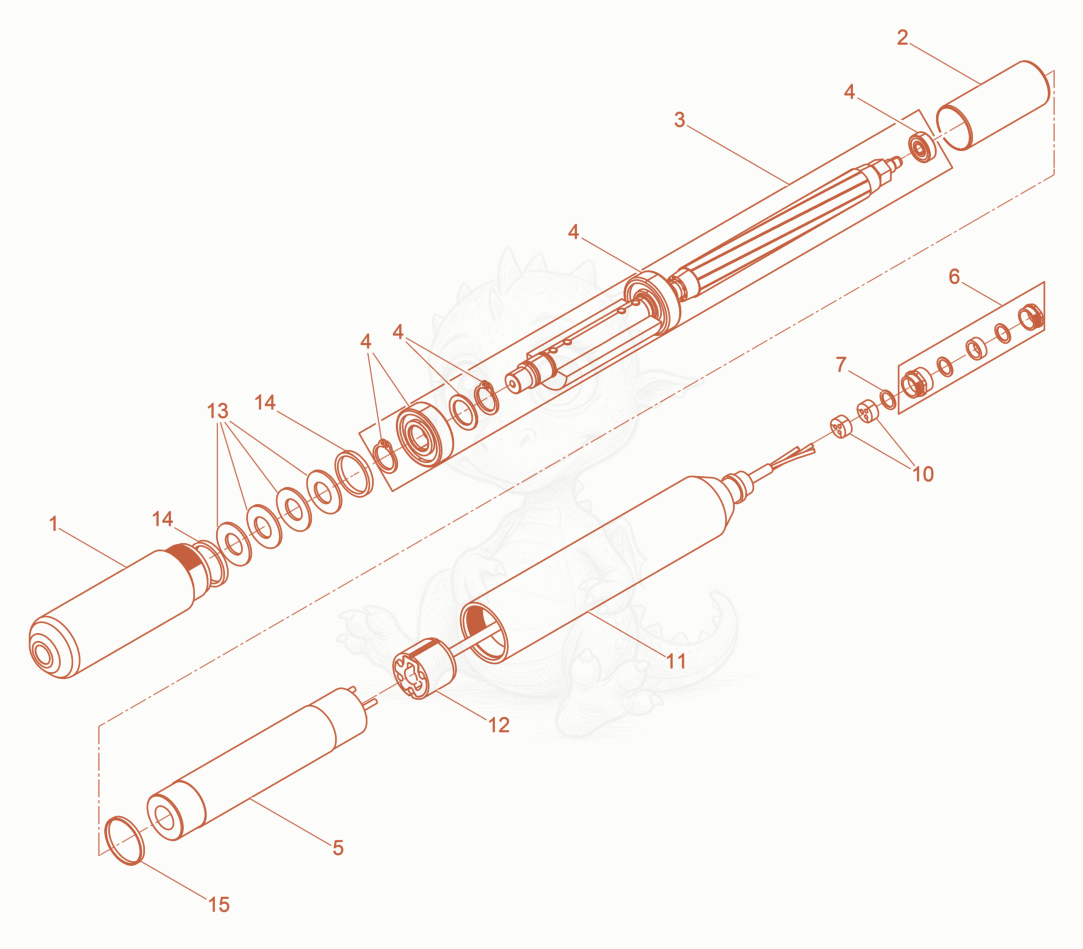

IREN65/048/240 Internal Vibrator cpl. Diagram

Exploded parts diagram of the Internal Vibrator cpl. of a Wacker Neuson IREN65/048/240, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000205407
    $527.15
    TUBE-LOWER - 5000205407×1
  • 25000205426
    $62.11
    SLEEVE-DISTANCE - 5000205426×1
  • 35000205413Not stocked
    Motor armature cpl.×1
  • 45000202267
    $215.91
    BEARING SET - 5000202267×1
  • 55100002591
    $1,086.32
    Stator (ND) - 5100002591×1
  • 65100002432
    $5.75
    Screw connection cpl. - 5100002432×1
  • 75002000058
    $0.22
    RING SEAL 16 X 20.5 X 0.8,PG16 - 5002000058×1
  • 105100002126
    $2.48
    3 hole plug - 5100002126×2
  • 115000105722
    $609.49
    TUBE-UPPER - 5000105722×1
  • 125000203409
    $88.01
    CONNECTOR-ELECTRIC - 5000203409×1
  • 135000202829
    $1.10
    SPRING-CUP - 5000202829×4
  • 145000218381
    $13.09
    RING-SPACER - 5000218381×2
  • 155000202836
    $6.81
    RING - 5000202836×1
