Internal vib. IREN 65k/8 m GV

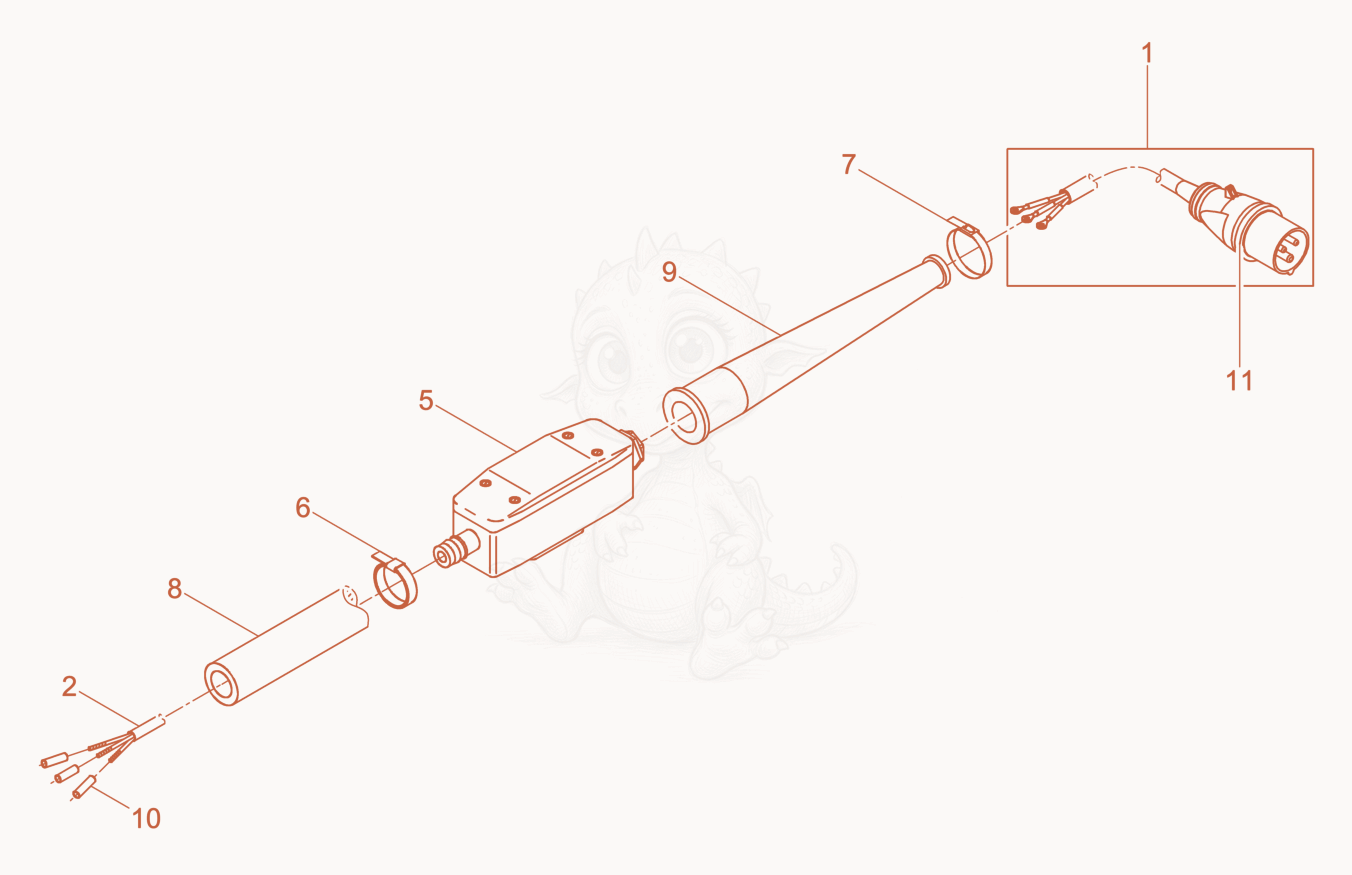

IREN65K8MGV Hose Connection cpl. Diagram
- CABLE-POWER SUPPLY W/PLUG - 5000063194×1
- 25000109371Not stockedSupply line×1
- 55000208138Not stockedSwitch box cpl.×1
- CLAMP 201/J206-45X5/8 ,BAND-IT - 5002006823×2
- Clamp - 5002007121×1
- X-5000218250 TUBE-INSULATING 8M,DIA.40 - 5000124568×1
- SLEEVE-CABLE REINFORCEMENT - 5003008468×1
- CONNECTOR-FLAT 26,0-4 - 5000203408×3
- 115000021201Not stockedCEE-plug×1
